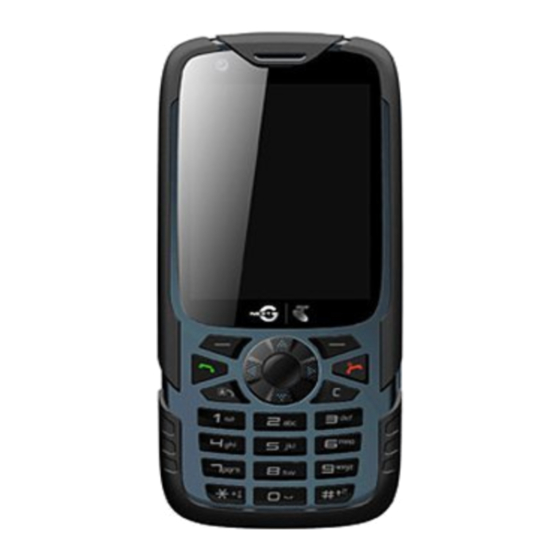

Rugged mobile phone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
T54
Rugged Mobile Phone
User Manual
1

Advertisement

Table of Contents
loading

Related Manuals for Telecom T54

Summary of Contents for Telecom T54

  • Page 1 Rugged Mobile Phone User Manual...
  • Page 2 PC Software Requirements Join Me PC Software included supports Microsoft Windows 7, Vista (32 and 64 bit), XP with Service Pack 2 & 3. A limited version of Join Me is supplied that supports MAC OS 10.5, 10.6 ZTE cannot guarantee that third party hardware or software is compatible with this product. Warnings and Safety Notices Please read all the safety notices before using this device.

  • Page 3: Table Of Contents

    Contents Liquid Damage - Important Note ................... 4 RF Safety Information ......................5 Handset Overview ........................8 Information Bar Icons ......................10 Menu Quick Reference Guide ....................11 Getting Started ................... 13 Insert the (U)SIM Card ................13 Insert the battery ..................14 Installing Additional Memory (Optional) ............

  • Page 4: Liquid Damage - Important Note

    Special Characters and SMS Message Length .......... 28 How to send a Multimedia Message (MMS) ..........29 How to receive a Multimedia Message (MMS) ........... 29 WAP Push Messages .................. 30 How to send an Email.................. 30 3.10 How to retrieve an Email ................31 3.11 How to set up automatic Email Retrieval ............

  • Page 5: Rf Safety Information

    RF Safety Information The handset has an internal antenna located at the top of the phone. For optimum performance with minimum power consumption do not cover the antenna area with your hand. Hold the handset between thumb and finger in the middle of the device. Covering the antenna affects call quality, may cause the handset to operate at higher power level than needed, and may shorten talk and idle times.
  • Page 6 when tested at the ear was 0.821 W/kg* and at the body worn was 1.360 W/kg* Body Worn Operation Important safety information regarding radio frequency(RF) radiation exposure. To ensure compliance with RF exposure guidelines the phone must be used with a minimum of 15 mm separation from the body.
  • Page 7 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio...

  • Page 8: Handset Overview

    Consult the dealer or an experienced radio/TV technician for help. Handset Overview Earpiece Display Left & Right Soft Keys Performs the function Power / End Key shown on the display Hold down to power On or Off. Press to End a call. C Key Step back in menus.
  • Page 9 Call Key Call a number, answer a call, show Call History Lock / Unlock the keypad. # Key Access text symbols. Switch to Meeting Mode Insert a Pause or Wait Change text modes command. Handset Overview Antenna Port Speaker Camera Volume aker USB,...

  • Page 10: Information Bar Icons

    Cover lock Left Rear Right Information Bar Icons 3G Signal Strength Battery Level Indicator GSM Signal Strength Alarm is set Signal Strength EDGE Missed Call Network New SMS Message Missed Video Call Message Memory is Full Bluetooth ON New MMS Message Silent Mode Vibrate mode enabled New E-mail...

  • Page 11: Menu Quick Reference Guide

    New Wap Push Message Data channel active (PDP) Headset Mode Roaming Menu Quick Reference Guide...
  • Page 12 Menu Quick Reference Guide Continued…...

  • Page 13: Getting Started

    Getting Started Insert the (U)SIM Card The (U)SIM card (UMTS Subscriber Interface Module) is the small plastic smart-card with gold contacts. It holds account and contact information and can be used to store text messages. It can be moved between different phones if required. The (U)SIM card must be inserted before use.

  • Page 14: Insert The Battery

    If your handset displays: Enter Handset unlock The default code is 0000 code Enter (U)SIM PIN Code Enter the PIN supplied with your SIM card No (U)SIM detected Check the SIM is inserted correctly. Enter PUK code Contact your Service Provider Insert the battery Rotate the locking screw to the right to unlock the battery cover.

  • Page 15: Installing Additional Memory (Optional)

    Line the battery cover up correctly, close the case and engage the locking screw. It is important to keep the battery cover, antenna port and USB port cover properly closed to maintain IP54 protection from liquid and dust. Installing Additional Memory (Optional) Handset memory can be increased by inserting a microSD™...

  • Page 16: How To Switch The Phone On Or Off

     Insert the memory card as shown with the gold contacts facing down  Close the card holder and make sure the card is correctly aligned.  With the microSD™ card inserted the default storage location (for photos etc) is the External Memory.

  • Page 17: Tips About Charging And Battery Life

    way. Do NOT use excessive force which may damage the USB port.  Physical damage to the USB port is NOT covered by warranty.  The phone can also be charged by connecting it to a computer using the USB lead supplied. ...

  • Page 18: How Do I Set The Time And Date

    How do I set the time and date? The time and date is set automatically from the network. It takes a few seconds to update when the phone is first switched on. Select 12 or 24 hr format in the Network Time menu.

  • Page 19: How To Send A Text Message (Sms)

    How to send a Text Message (SMS) 1.11  Press the Left Arrow ◄ for Messages  Press OK for New message. Press OK for Text message  Enter the phone number directly or press OK to select from Contacts (Cont.) ...

  • Page 20: Call Features Summary

    Icon Shortcuts description From the idle screen the Arrow Keys launch the default Shortcuts as shown: TWorld Messages File Manager Calls |To change default shortcuts: Menu > Settings > arrow right ► to Handset > Shortcut keys Call Features Summary 1.13 Check the table below to quickly find the Call Feature you require: Function...
  • Page 21 Call Barring Restrict various categories of Menu > Settings > arrow incoming or outgoing calls. right to Call > Call barring Call Divert Divert incoming calls to another Menu > Settings > arrow number. right to Call > Call divert Call Waiting If you are already on the phone Menu >...
  • Page 22 Speed Dial Speed Dial Call Press and hold the corresponding From the idle screen key on the number pad to quickly press and hold a number call a Speed Dial Contact. key. Voice Call Enter the number on the keypad Enter the number, and press the Green Call Key.

  • Page 23: Contacts

    Contacts There are some numbers that you may want to call again and again so it makes sense to add these to your Contacts. You can then access these numbers quickly and easily and add special features such as Speed Dialling a dedicated Ringtone and Photo.
  • Page 24 Enter a new Enter the number on the keypad Number Entry > Left Soft Contact and press the left soft key to Save Key > Follow the prompts Function Description Menu Selection Insert a Pause When dialling manually „P‟ inserts a 3 seconds delay. or Wait press the * key three „W‟...
  • Page 25 folder > Save > Save.

  • Page 26: Messages And Emails

    Messages and Emails How to send a Text Message (SMS) Press the Left Arrow Key as a shortcut to Messages or Menu > Messages > New message > Text message  Press the OK Key to Add a Contact or enter the number manually. ...

  • Page 27: How To Use Predictive Text

    How to use Predictive Text Predictive text allows words to be entered more efficiently using a single keypress for each letter, as opposed to multiple keypresses in multi-tap text mode. Compare how to write the word „the‟: Traditional multi-tap text mode (ABC, abc) Predictive Text Mode (En) Press 8 (tuv) once to select „t‟...

  • Page 28: How To Add Words To The Built In Dictionary (My Words)

    built-in Dictionary which is called My Words.  Press the Options key to access My Words to Add new words to the available lists How to add words to the built in Dictionary (My Words)  From predictive text mode enter words directly by choosing Spell Word? ...

  • Page 29: How To Send A Multimedia Message (Mms)

    The maximum number of Unicode characters per SMS is 70. How to send a Multimedia Message (MMS) Use a Multimedia Message to send pictures, music or video files. You can also send an MMS directly to an Email address. Menu > Messages > New message > Multimedia message ...

  • Page 30: Wap Push Messages

    Use the Browser to view Push Messages. Set to Reject to disable Push Messages. How to send an Email Menu > Messages > tab right to Email > Settings > Mailbox Settings > Edit  The default Email client is configured for Telecom  Add your username, password and My Email address ...

  • Page 31: How To Retrieve An Email

    How to retrieve an Email 3.10 Configure the Email Client with your personal settings to enable Emails. Menu > Messages > arrow right ► to Email > Settings > Mailbox Settings > Edit  The default Email client is configured for your service provider ...

  • Page 32: How To Create A New Mailbox

    How to create a new Mailbox 3.13 Create a new Mailbox to set up alternate Email providers: Menu > Email > Scroll down to Settings > Mailbox Settings > Add Complete all the required fields for your service provider, example shown is for Gmail: The fields in bold should not be changed as they are linked to your phone service provider.

  • Page 33: Handset Features & Applications

    Handset Features & Applications Function Description Menu Selection Alarms Set and edit Alarms Menu > Tools > Alarm > Add (or View) Menu > Settings > Backlight timers Backlighting Set the backlighting timers Change the display Menu > Settings > Display Brightness brightness Brightness...
  • Page 34 TTY device for people with Handset > CTM impaired sight or hearing Currency Access the Currency Menu > Tools > Currency Conversion Converter function Conversion Function Description Menu Selection Download Sets the default storage Menu > Settings > arrow right to location when using a memory card.
  • Page 35 volume Lock Code Change the Handset Lock Menu > Settings > arrow right to code Security > Activate security (This protects the Handset) codes > Handset lock code Function Description Menu Selection Meeting Mode Quickly engage Meeting Long Press the # Key mode Message Tone Change the incoming...
  • Page 36 settings > 0000 (default Handset lock code) Ringtone Change the incoming ring Menu > Profiles > Edit > Voicecall ringtone Shortcut Keys Customise the four arrow Menu > Settings > arrow right to keys to your preferred Handset > Shortcut keys > OK features Function Description...
  • Page 37 Wallpaper Set your background image Menu > Settings > Wallpaper World Time Access the World Time Menu > Tools > World Time function...

  • Page 38: Installing The Join Me Computer Suite

    Installing the Join Me Computer suite Embedded in your handset is a computer connection suite. The computer suite is compatible with Windows 7, Vista and XP for the PC and MAC OS 10.5 and above. To install the computer suite you need to connect your handset to your computer using the USB lead supplied.

  • Page 39: Troubleshooting, Technical And Warranty Information

    Troubleshooting, Technical and Warranty Information Troubleshooting and FAQ‟s Please check the manual thoroughly before contacting your service provider Symptom Solution No incoming ring Check the ring tone and ring volume settings under Profiles or alarm tone Check the handset is not muted (Long press the key) (No) keytones when Check the key tone settings in the current profile.
  • Page 40 How do I change to Press the key to toggle between different text modes. Predictive Text? Symptom Resolution Check: Menu > Settings > Handset > PC Connection > I cannot connect to Press Help in Join Me for more instructions. Join Me Uninstall and re-install the software See FAQ‟s at http://www.zte.co.nz/ for more assistance...

  • Page 41: Error Messages

    From the phone number field press the down arrow to How do I enter text in move into the text area. Use predictive text or abc mode to an SMS? type words using the keypad. The handset is charging in the off state. Press and hold the The handset switches Red key to switch the handset ON or charge it in the ON off after charging.

  • Page 42: Technical Parameters

    Enter handset lock code The default handset lock code is 0000 Check the file type is supported by the handset. File does not exist or is in On your PC or MAC, make sure the file is closed. the wrong format Re-send the file using Join Me, Mass Storage Mode or Bluetooth transfer.

  • Page 43: Support Information

    time* Video call >70 minutes (+/- 20% subject to network conditions) Charge time Approximately 3-4 hours Battery Life Approximately 400 charge cycles Supported Files JPG, BMP, GIF, MP3, WAV, MID, WMA, MMF, AMR, MP4, 3GP, Bluetooth 2.0 HSP, GOEP, A2DP, FTP, PBAB *The phone‟s talk and idle time are based on ideal working environments.
  • Page 44 Power surges, lightning, fire, flood or other natural events. Use of the product with unauthorized third party products such as generic chargers. Any other cause beyond the range of normal usage for products. The End User shall have no right to reject, return, or receive a refund for any product under the above-mentioned situations.
  • Page 45 Safety and General Information The handset contains delicate electronic circuitry, magnets and battery systems. You should treat it with care and pay attention to the following points:  Handle the handset with care. Do not  The operation some medical drop or throw the handset.
  • Page 46  Do not put the battery in your mouth.  Do not leave the handset at the bottom  Only original replacement of a bag where it may be damaged by batteries. sharp objects.  Do not attempt to dismantle the ...
  • Page 47  It is always good practice to switch off the handset regularly.  Do not expose the handset to oils or solvents.  If you have an alarm set the handset switches on at the prescribed time.
