Summary of Contents for PRO SIGNAL PSG3417

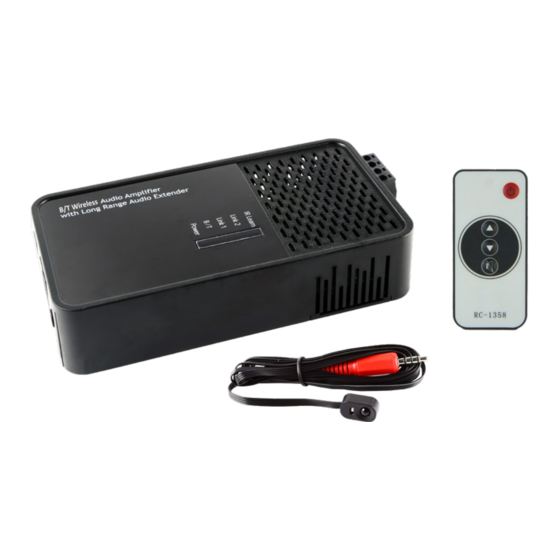

- Page 1 PSG3417 WIRELESS AUDIO AMPLIFIER WITH LONG RANGE AUDIO EXTENDER KIT...
- Page 2 IMPORTANT SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. • Check that the voltage indicated on the PSU rating plate corresponds with that of the local network before connecting to the mains power supply. •...
- Page 3 INSTALLATION • Connect CAT5 cable to the output and input (if required) sockets and connect the device(s) to the network. • Connect the source device to the AUX audio input if required. • Connect the IR Receiver. • Connect the loudspeaker wires to the terminal block noting the phase polarity. NOTE: If using 4-6ohm speakers max 1 per channel, 8ohm max 2 per channel.
- Page 4 SPECIFICATIONS Amplifier power: 25W x2 RMS Class-D audio amplifier. Transmission distance: Long range balance audio transmission up to 100+ meters over CAT5 network. Cascading function, to expand speaker numbers. Wireless version: v4.2 with Qualcomm aptX, distance over 10 meters. Input: Automatically switch input between wireless (high priority) and AUX IN.
