Summary of Contents for PRO SIGNAL PSG3414

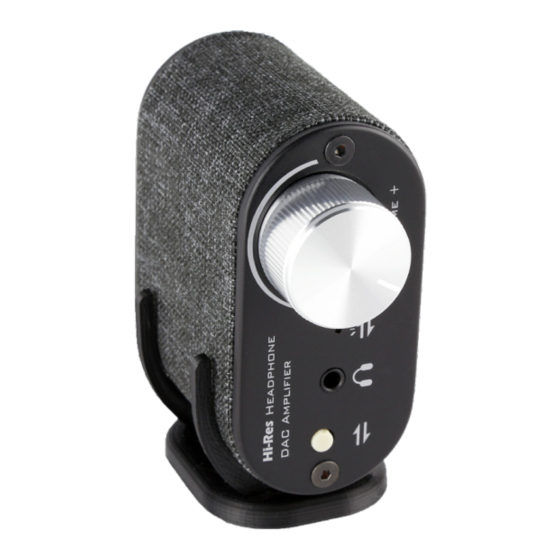

- Page 1 PSG3414 HI-RES HEADPHONE AMPLIFIER...
- Page 2 IMPORTANT SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. • Check that the voltage indicated on the PSU rating plate is correct for the local mains supply. • Do not expose to excessive heat or locate where damp or moisture may enter the device.
- Page 3 OPERATION • Press the USB/SPDIF button to select the input mode required. • The LED will illuminate blue for USB and green for SPDIF input. • Connect the headphone amplifier to the input device (PC or USB equipped OTG phone). •...
- Page 4 SPECIFICATIONS Power Requirement: 5VDC 0.25A via USB Supported systems: Windows 7 and up Apple MAC OS/IOS Android with OTG Input interface: USB in / Toslink in Output interface: 3.5mm line level Frequency response: 20Hz-20kHz Distortion: 0.001%@1kHz (32 Ohm) Headphone impedance: 16 Ohm - 600 Ohm Output impedance: <1 Ohm...
