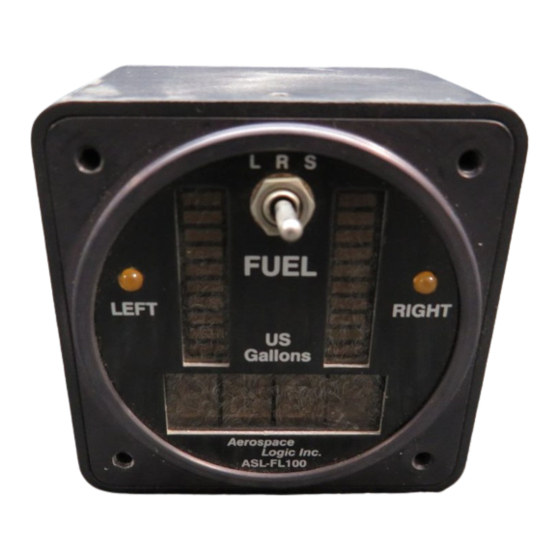

FL-100-5 Dual Fuel Level Indicator
Page 1 of 23
All specification subject to change
© 2002-2004 Aerospace Logic Inc.
FL-100-5
Operations and Installation Manual
This manual is certified for use with
instrument serial number
ASL000000
Use of this manual with any other
instrument voids all warranties and may
result in damage to the instrument
Congratulations on the purchase of your FL-100 Dual Fuel Level Indicator. This
instrument is a complex precision instrument manufactured to exceed Airborne
Equipment Standards DO-160D, DO-178B and TSO C55 standards. In order for your
instrument to function correctly you will need to review the instructions in this brief
manual.
Aerospace Logic Inc.
3150 Ridgeway Drive, Unit #43, Mississauga, Ontario, L5L 5R5, CANADA
Tel. (905) 569-3887 | Fax. (416) 352-5854 | technical@aerospacelogic.com
www.aerospacelogic.com
FL-100-5 Operations & Installation Manual – Ver. 2.0 – October 24, 2004
