Aerospace Logic OPT200XX Series Operation Manual

OPT200XX Operations Guide
This manual outlines the operating procedures for all OPT200XX series products

1. Power Up / Default Screen

2. Voltmeter Display

3. Trend Graph

The "Scan Interval" can be changed by pressing the bottom button.
To freeze the display, press the top button ONCE.
To continue displaying information in this mode, press the bottom button ONCE,
OR, to return to the default screen, press the top button once.
Aerospace Logic Inc.

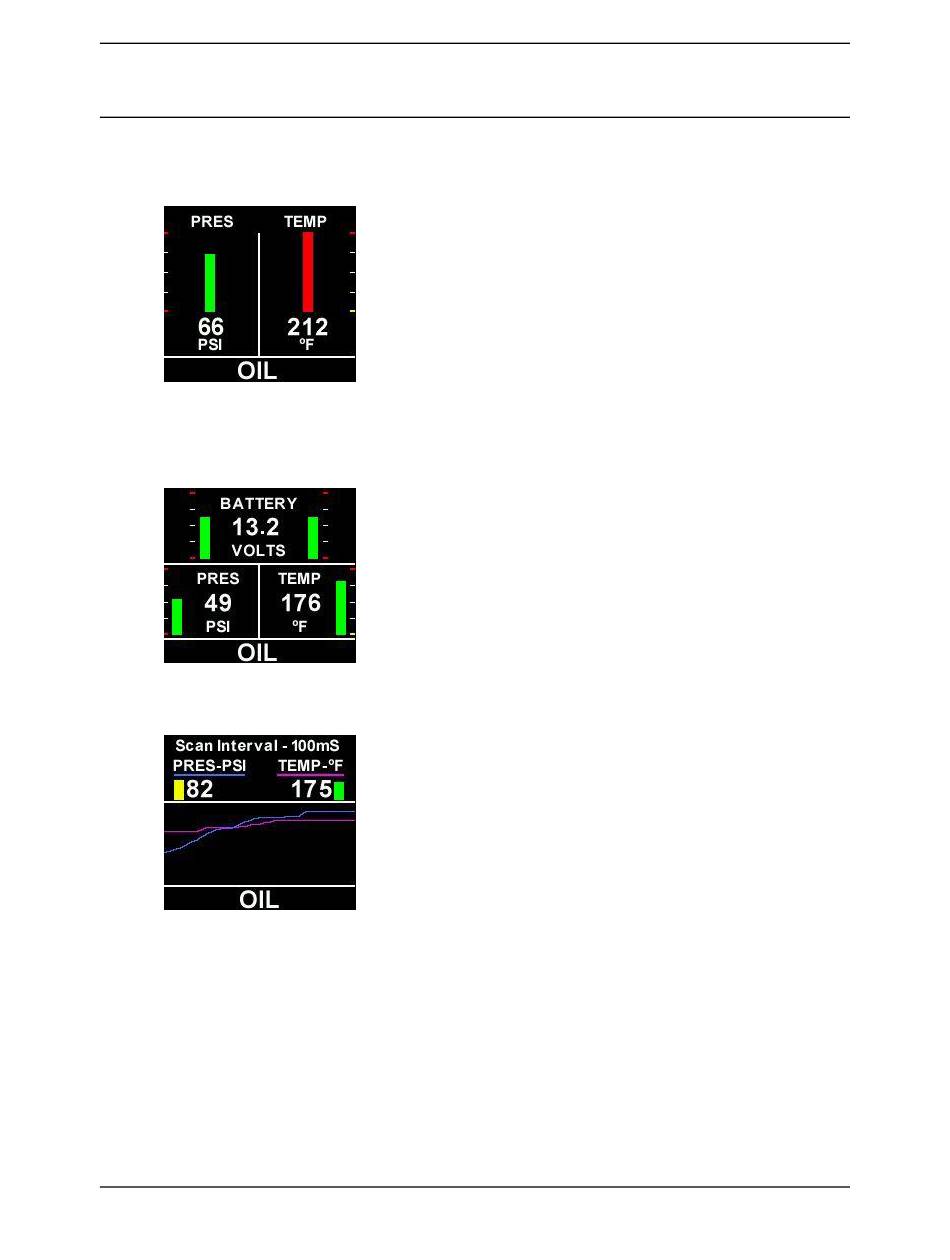

Displays the oil pressure and temperature.
Colors are determined by the range values as
set during installation.
Press the top button once to move to the next
display screen (#2 if the part number contains a
"V" suffix OR #3 if not).
Displays the battery voltage on the top half of the
display and the oil pressure and temperature on
the bottom half.
Press the top button to move to the next display.
This screen displays the oil pressure and
temperature graphically.
Pressure and temperature information is
displayed with a miniature version of the bars as
on the default screen and the actual value.
They are also displayed graphically.
