HPM LSS0112WBL Instruction Manual

This product must be installed by a licensed electrician.
Introduction
This floodlight incorporates an automatic passive infrared (PIR) sensor.
The sensor continuously scans a preset operating zone and immediately
switches the floodlight ON when it detects movement from people and
animals. It can be used to illuminate pathways, steps, patios, porches
or other areas that require lighting for reasons of safety, convenience or
security. Whilst there is movement within the scanning area the floodlight
will remain on.

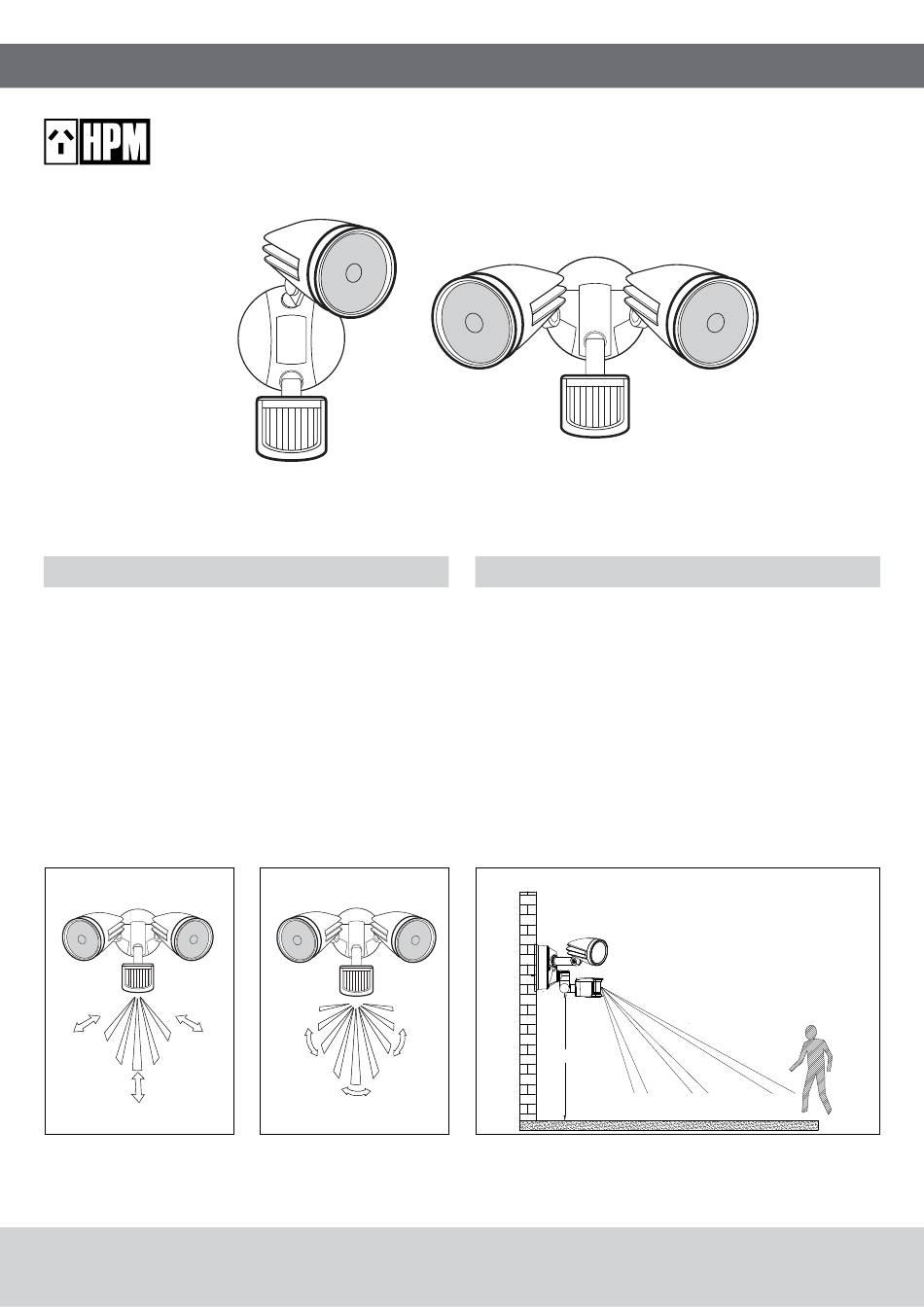

Fig. 1A Sensing Ability - Low
LSS0112WBL
Fig. 1B Sensing Ability - High
Sika LED Floodlight with Sensor
Cat. No. LSS0112WBL, LSS0125WBL
LSS0125WBL
Where to fit your floodlight
Before selecting a place to install your floodlight you should note that
movement across the scan area is more effective than movement directly
toward or away from the sensor (refer FIG. 1B). If movement is made
walking directly towards or away from the sensor and not across, the
apparent detection range will be substantially reduced (refer FIG. 1A).
Always mount the floodlight in a sheltered position, i.e. under the eaves
of the house.
Do not operate in close proximity to combustible materials or substances
affected by heating or drying. Keep a minimum distance of 0.5m from
adjacent objects.
Ideally the floodlight should be mounted more than 2m above the area to
be scanned (refer to Fig. 2).
Fig. 2 Mounting
> 2m
4M
Instruction Manual
Detection Distance
8M 12M
