HPM LFS013KBL Instruction Manual

Introduction

This security floodlight incorporates an automatic PIR sensor with 2 LED
PAR38 globes. The sensor continuously scans a preset operating zone
and immediately switches the floodlight on when it detects movement
from people and animals. It can be used to illuminate pathways, steps,
patios, porches or other areas that require lighting for reasons of safety,
convenience or security. Whilst there is movement within the scanning area
the floodlight will remain on.

Where to fit your security light

Before selecting a place to install your Sensor Light you should note
that movement across the scan area is more effective than movement
directly toward or away from the sensor (refer FIG. 1B). If movement is
made walking directly towards or away from the sensor and not across,
the apparent detection range will be substantially reduced (refer FIG. 1A).
Always mount the LFS013KBL sensor light in a sheltered position, i.e.
under the eaves of the house.
Fig 1A Lowest Sensitivity

Installation:

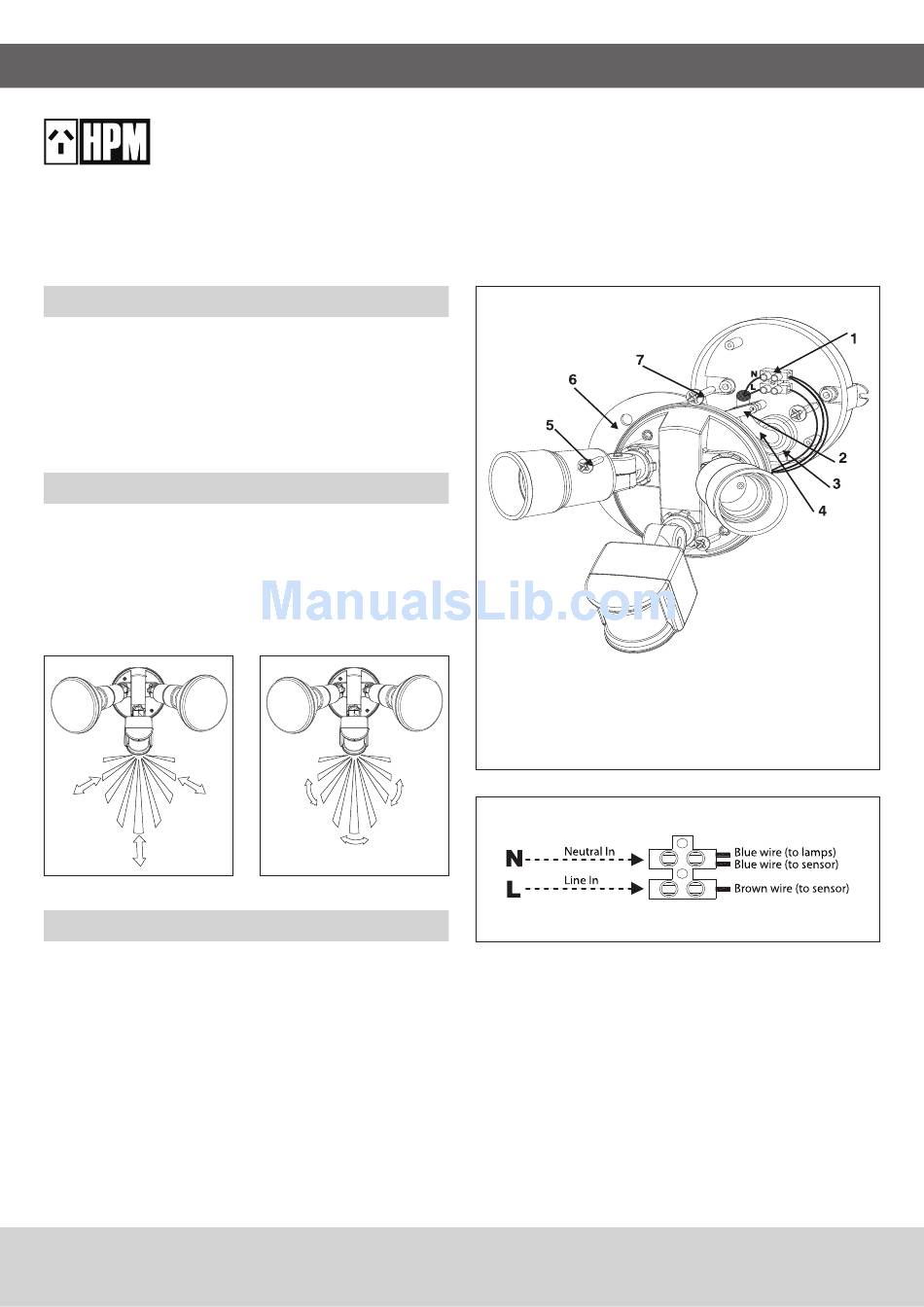

For installation of the Security Light, please refer to Fig.2.
1. This product must be installed by a licensed electrician according to
AS/NZS 3000.
2. Switch power off at the meter box to isolate circuit.
3. Unscrew the Fixing Cover Screws then remove the cover and
Cable Gasket.
4. Remove the Cable Anchorage and Terminal Block.
5. Use the plastic back plate to mark the position of screw holes onto
mounting surface. Drill the wall to depth of about 4cm and fit the
wall plugs (supplied). Avoid drilling or screwing into concealed
electrical wiring.
6. Ensure the cable passes through the Cable Gasket and connect cable
to Terminal Block.
Fig 1B Highest Sensitivity
Twin LED Sensor Light
Fig 2
7. Affix the back plate to the mounting surface with Mounting Wall
Screws (supplied).
8. Re-fit the Terminal Block and Cable Anchorage.
9. Re-fit the cover.
10. Insert the PAR38 LED Globes (supplied). Please ensure the sealing
rubber (supplied), is placed on the lamp holder prior to installation of
PAR38 LED Globes.
Important: loosen all lock nuts and screws on sensor and lamp holders
before making any adjustments.
DO NOT MEGGER TEST.
Cat. LFS013KBL
Instruction Manual
1 Terminal Block
2 Cable Anchorage
3 Cable Gasket
4 Power Cable
5 Fixing Cover Screw x 2
6 Gasket Piece
7 Mounting Wall Screw x 2
