This product must be installed by a licensed electrician.
Introduction
This floodlight incorporates an automatic passive infrared (PIR) sensor.
The sensor continuously scans a preset operating zone and immediately
switches the floodlight ON when it detects movement from people and
animals. It can be used to illuminate pathways, steps, patios, porches
or other areas that require lighting for reasons of safety, convenience or
security. Whilst there is movement within the scanning area the floodlight
will remain on.

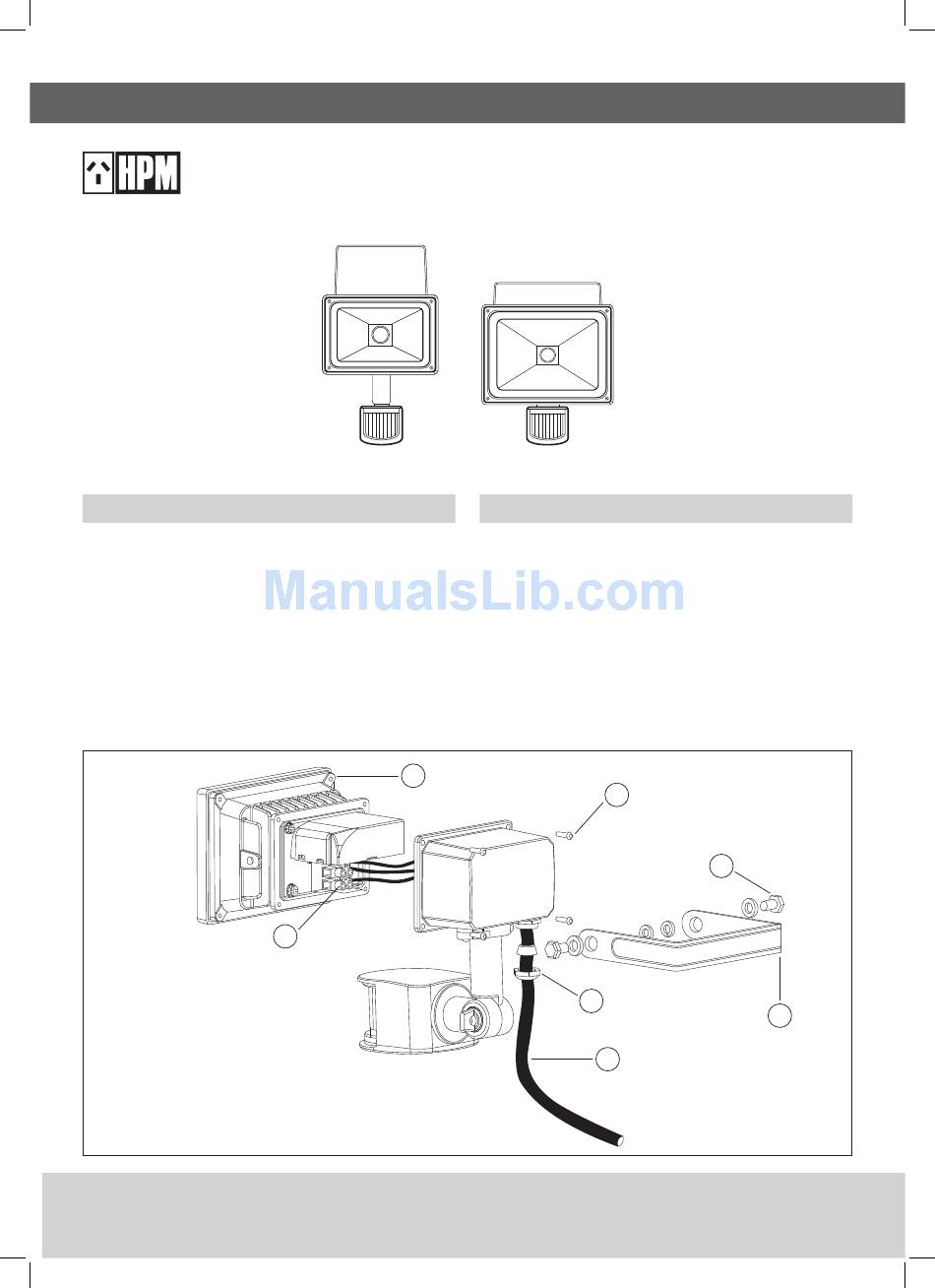

Fig. 2
1 Lamp Cover Screw
2 Terminal Block
3 Junction Box Cover Screws (x 4pcs)
4 Wall Mounting Bracket Screws (x 2pcs)
5 Wall Mounting Bracket
6 Gland
7 Power Cable (not provided)
1
2
Forta LED Floodlight with Sensor
Cat. No. LFS0110WBL, LFS0130WBL
Where to fit your floodlight
Before selecting a place to install your floodlight you should note that
movement across the scan area is more effective than movement directly
toward or away from the sensor (refer FIG. 1B). If movement is made
walking directly towards or away from the sensor and not across, the
apparent detection range will be substantially reduced (refer FIG. 1A).
Always mount the floodlight in a sheltered position, i.e. under the eaves
of the house.
Do not operate in close proximity to combustible materials or substances
affected by heating or drying. Keep a minimum distance of 0.5m from
adjacent objects.
Ideally the floodlight should be mounted more than 2m above the area to
be scanned (refer to Fig. 3).
3
6
7
Instruction Manual
4
5
Advertisement
Related Manuals for HPM LFS0110WBL
Summary of Contents for HPM LFS0110WBL
- Page 1 Forta LED Floodlight with Sensor Cat. No. LFS0110WBL, LFS0130WBL Instruction Manual This product must be installed by a licensed electrician. Introduction Where to fit your floodlight This floodlight incorporates an automatic passive infrared (PIR) sensor. Before selecting a place to install your floodlight you should note that The sensor continuously scans a preset operating zone and immediately movement across the scan area is more effective than movement directly switches the floodlight ON when it detects movement from people and toward or away from the sensor (refer FIG. 1B). If movement is made animals. It can be used to illuminate pathways, steps, patios, porches walking directly towards or away from the sensor and not across, the or other areas that require lighting for reasons of safety, convenience or apparent detection range will be substantially reduced (refer FIG. 1A). security. Whilst there is movement within the scanning area the floodlight Always mount the floodlight in a sheltered position, i.e. under the eaves of the house. will remain on. Do not operate in close proximity to combustible materials or substances affected by heating or drying. Keep a minimum distance of 0.5m from adjacent objects. Ideally the floodlight should be mounted more than 2m above the area to be scanned (refer to Fig. 3). Fig. 2 1 Lamp Cover Screw 2 Terminal Block 3 Junction Box Cover Screws (x 4pcs) 4 Wall Mounting Bracket Screws (x 2pcs)
- Page 2 Fig. 1A Lowest Sensitivity Fig. 1B Highest Sensitivity Setting the controls Fig. 5 Fig. 3 Detection Area Dial settings show TEST MODE approx.180˚ With floodlight fully installed by electrician and > 2m power on 1. T urn the LUX control knob to light ( ) position, turn the wall switch on and wait 30 seconds for the control circuit to stabilise. Ensure the TIME control knob is set at minimum (-).The lamp on the sensor light will now switch on and will remain on for about 10sec.
-
Page 3: Specifications
Understanding the controls Specifications Adjusting the duration time Cat no. LFS0110WBL LFS0130WBL Supply voltage 230-240V a.c. 50Hz The length of time that the unit remains switched on after activation can be adjusted from 10±5 seconds to 4±1 minutes. Rotating the TIME knob Input power anticlockwise from (+) to(-) reduces the duration time. Note: Once the light has been triggered by the PIR sensor any subsequent detection will start Power ouput the timed period again from the beginning. Lumens ouput 730lm 2250lm Adjusting the LUX control level Colour Cool white 4000K nominal tempertaure The LUX control module has a built-in sensing device (photocell) that Mounting height > 2m (recommended) detects daylight and darkness. Rotate the LUX knob anticlockwise from... -
Page 4: Customer Service
Disclaimers 1. This product must be installed and used as per these instructions. 2. An IP rating of IP44 is generally considered suitable for external walls with supplementary protection such as overhanging eaves. 3. The IP rating of this product is only valid when installed on a flat and non-porous surface. Additional sealing may be required for irregular surfaces. 4. The fixing screws on this product should be tightened to a maximum torque of 0.8Nm. Over tightening may damage the product. 5. This product contains no serviceable parts and no attempt should be made to repair this product. If the product is faulty it should be discarded. 6. This product is not suitable for installation in hazardous and/or corrosive areas. 7. Electrical installations periodically receive transient over voltages. This product has been designed to minimise the effect of such voltages on connected equipment. It may not give full protection for extreme over- voltage transients such as those resulting from a close lighting strike. 8. This product utilises intellectual property in the form of registered designs, trademarks, and/or patents. Such intellectual property remains the property of HPM Legrand in all cases. 9. HPM Legrand reserves the right to modify the specification of this product at any time. 10. This product has been designed to operate in ambient temperatures: -10°C to 40°C. 11. The material in this product may vary in colour from batch to batch. Colour matching from one batch to another cannot be guaranteed. Warranty Customer Service HPM Legrand warrants this product for a period of 3 years from For all Customer Service and Technical Support the date of purchase. please call Monday to Friday during business hours. These goods come with guarantees that cannot be excluded HPM Legrand Australia under the Australian and New Zealand Consumer Laws. You 1300 369 777 are entitled to a replacement or a refund for a major failure and www.hpm.com.au for compensation for any other reasonably foreseeable loss HPM Legrand New Zealand or damage. You are also entitled to have the goods repaired if 0800 476 009 the goods fail to be acceptable quality and the failure does not www.hpm.co.nz...
