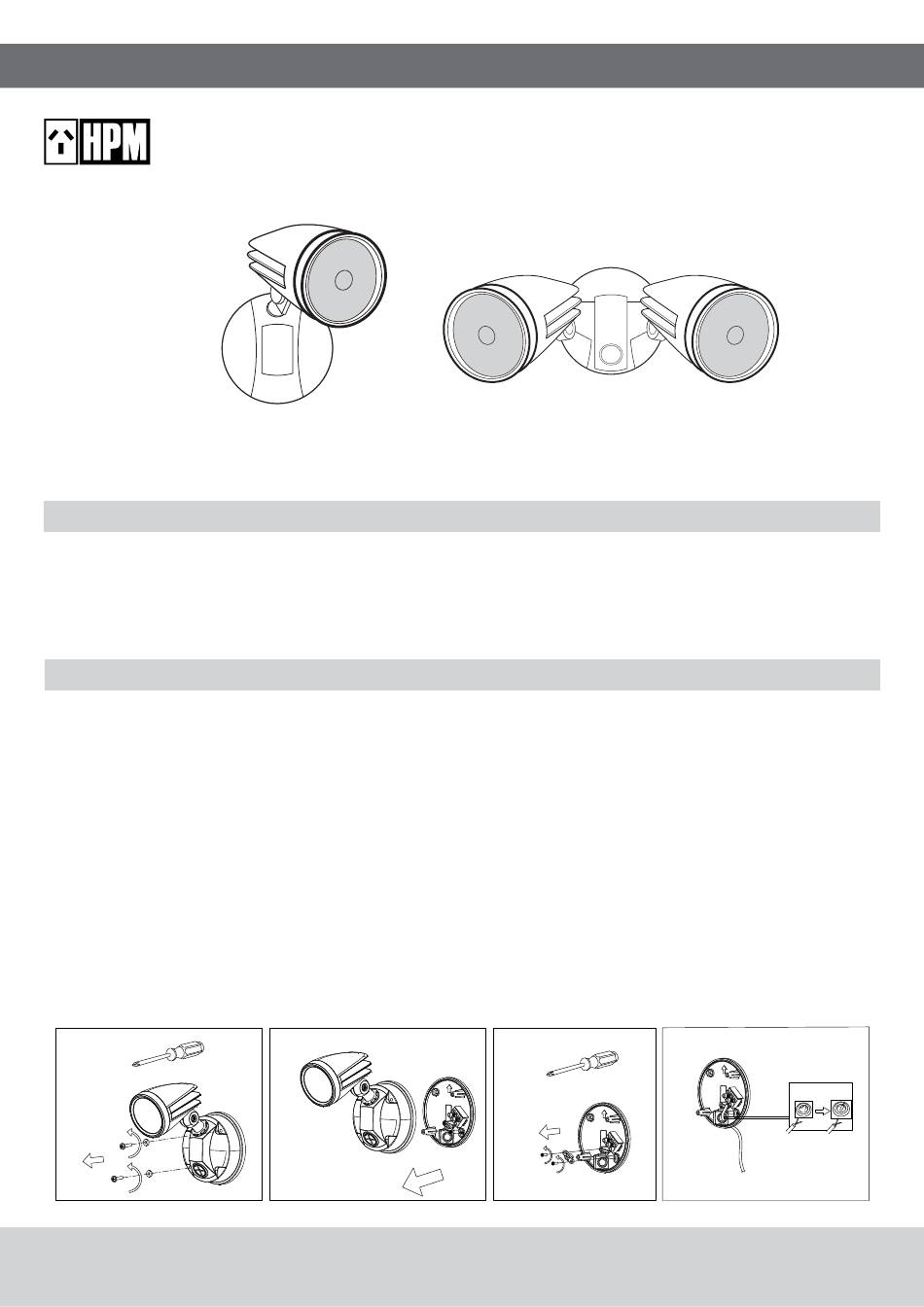

HPM Sika LSP0112WBL Instruction Manual

These products must be installed by a licensed electrician.

Where to mount your floodlight:

1. Installation is to be made in dry weather conditions.
2. Choose a mounting position that is in a sheltered location (e.g under the eaves of the house). A mounting height of greater than 2m is recommended.
3. Do not operate in close proximity to combustible materials or substances affected by heating or drying. Keep a minimum distance of 0.5m from
adjacent objects.

Installation:

Installing a wall switch adjacent to the power source is recommended.
1. Remove the mounting bracket from the back of the fitting (figure A & B).
2. Loosen the cord anchorage on the mounting bracket by loosening the two screws (figure C).
3. Choose rubber-sheathed 3-core circular cord, H05RN-F 3G 1mm2 (not supplied) for the mains wiring.
4. Insert mains wiring through the grommet on the mounting bracket (figure D).
5. Connect the mains wiring to the terminal block as marked on the mounting bracket. Ensure that the wires are secure and no bare wires are exposed
(figure E).
6. Use the mounting bracket as a template to mark the screw positions onto the wall (figure F).
7. Install the mounting bracket onto the wall. Ensure the method of fixing can support up to a 10kg weight.
8. Place the mains wiring in the cord anchorage system and secure by tightening the screws. Ensure it clamps onto the cord sheath (figure G).
9. Install the fitting back onto the mounting bracket and tighten the screws (figure H & I).
10. Adjust the head of the fitting to the desired position.
11. DO NOT MEGGER TEST.
A
E F
LSP0112WBL
B
G

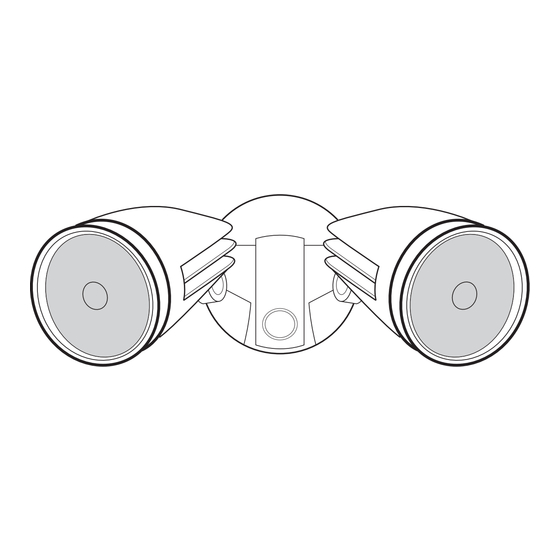

Sika LED Floodlights
Cat. No. LSP0112WBL, LSP0125WBL
LSP0125WBL
C
H
Instruction Manual
D
I
