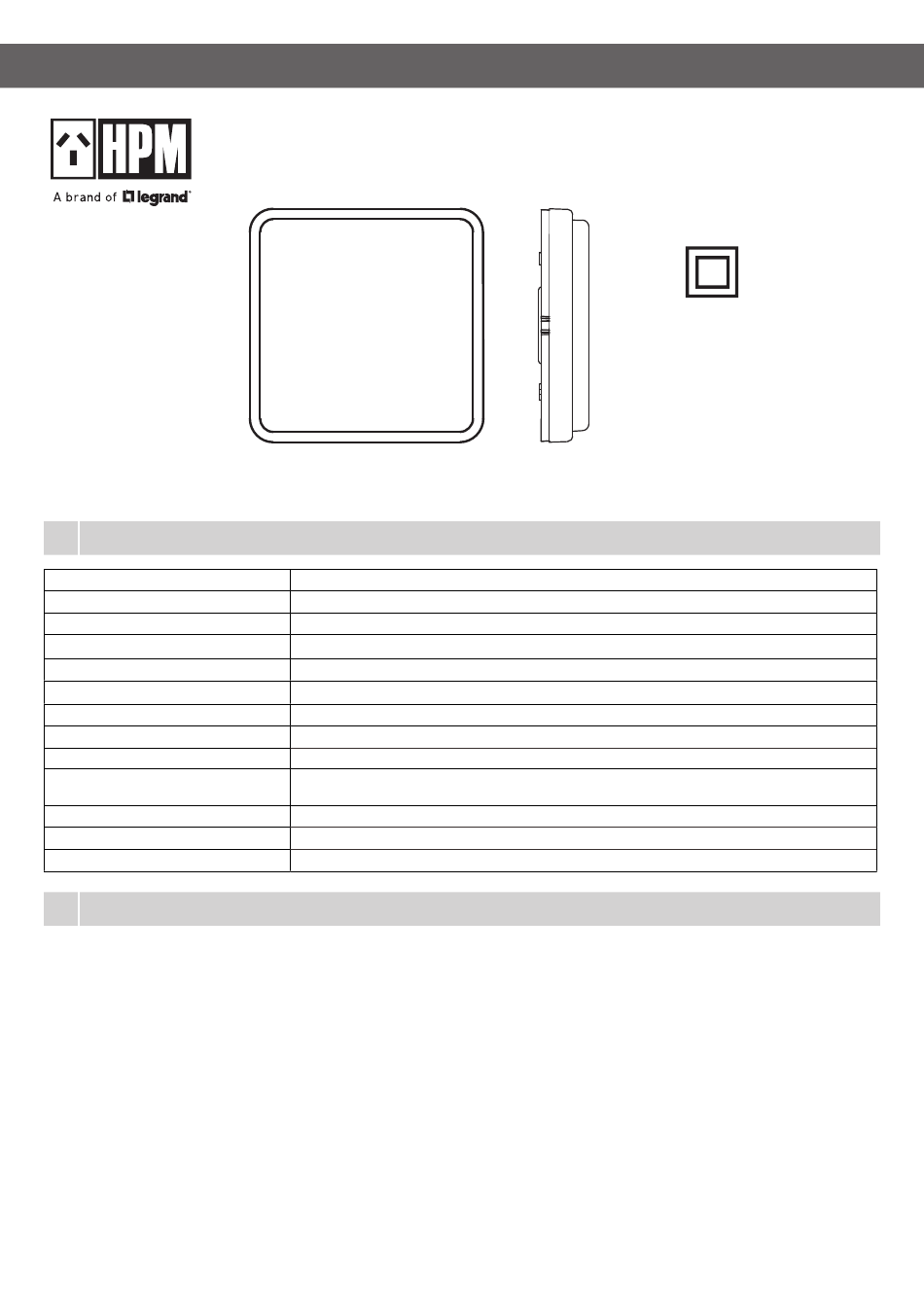

LEGRAND HPM LBL024KBL Instruction Sheet

Please read carefully: This product should be installed by a licensed electrician or similarly qualified person. Read through these
instructions completely before commencing installation. Retain for future use.
1

Specifications

Cat. No.
Supply Voltage
Input Power
Lumens Output
Efficacy
Colour Temperature
Power Factor
Colour Rendering Index (CRI)
Beam Angle
Lifespan
Dimmable
IP Rating
Size
2

Installation

Isolate 240 V mains supply before opening fitting for maintenance or installation. (Please refer to figure below)
Step 1: Remove the surround and diffuser from the fitting by loosening the 4 x screws as shown in Fig.1.
Step 2: Use the fitting as a template to mark the screws positions onto the wall/ceiling. Drill and fix the mounting lugs in the wall as shown.
Step 3: Connect the connecting lead (tails) to mains power then install the fitting onto the wall/ceiling using 2 x screws as shown in Fig. 2.
Step 4: Install the diffuser onto the base and torque the 4 x mounting screws to 0.4 Nm max. Do not overtighten. Install the surround on the diffuser.
DO NOT MEGGER TEST.
SELENTA LED Outdoor Light
LBL024KBL
230-240 V a.c 50 Hz
16 W
1300 lm
80 lm/W
Cool White - 4000 K (Nominal)
0.6
80
+
118°
36,000 hrs (@25° C ambient free air)
25,000 hrs (@40° C ambient)
No
IP65
280 x 280 x 60 mm
Instruction Sheet
Cat.No: LBL024KBL
Class II construction
