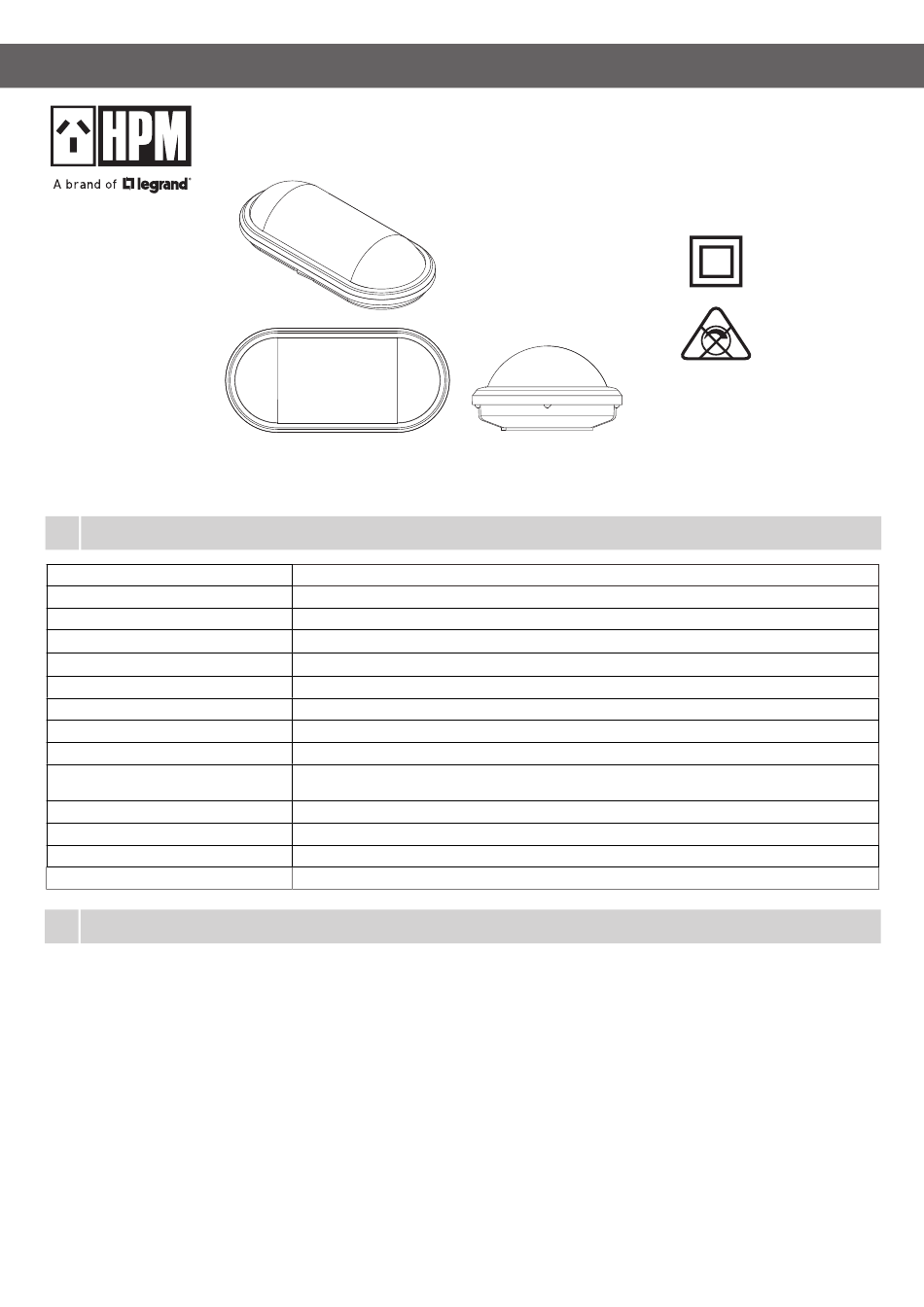

LEGRAND HPM ELLIPTICA LBL034KWE Instruction Sheet

Please read carefully: This product should be installed by a licensed electrician or similarly qualified person. Read through these
instructions completely before commencing installation. Retain for future use.
1 Specifications
Cat.No.
Supply Voltage
Input Power
Lumens Output
Efficacy
Colour Temperature
Power Factor
Colour Rendering Index (CRI)
Beam Angle
Lifespan
Dimmable
IP Rating
Size
Warranty
2 Installation
solate 240 V mains supply before opening fitting for maintenance or installation. (Please refer to figure below)
I
Step 1: Use the bracket (provided) as a template to mark the screw positions onto the wall/ceiling.
Step 2: Drill and fix the mounting lugs and tighten the 2 x screws through the bracket into the wall as shown in Fig. 1.
Step 3: Connect the connecting lead (tails) to mains power.
Step 4: Install the fitting onto the bracket and make sure it is secured firmly.
DO NOT MEGGER TEST.

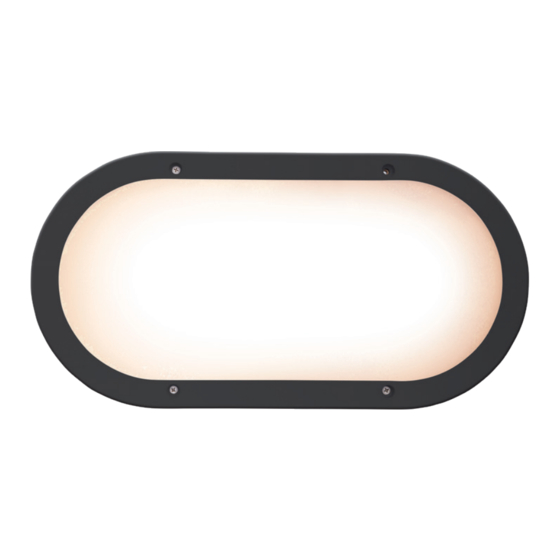

ELLIPTICA LED Outdoor Light
Cat.No: LBL034KWE, LBL034KBL
LBL034KWE, LBL034KBL
230 - 240 V a.c. 50Hz
15 W
1420 lm
95 lm/W
Cool White - 4000 K (Nominal)
0.55
80 +
125°
36,000 hrs (@25° C ambient free air)
25,000 hrs (@40° C ambient)
No
IP65
300 x 140 x 76 mm
5 Years
Instruction Sheet
Class II construction
Non-Dimmable
