LEGRAND Kenall Senscape SA-WM Series Installation Instructions

SENSCAPE
TM
Luminaire for Parks, Campus & Commercial Areas
SA-WM SERIES

WALL MOUNT ADAPTER

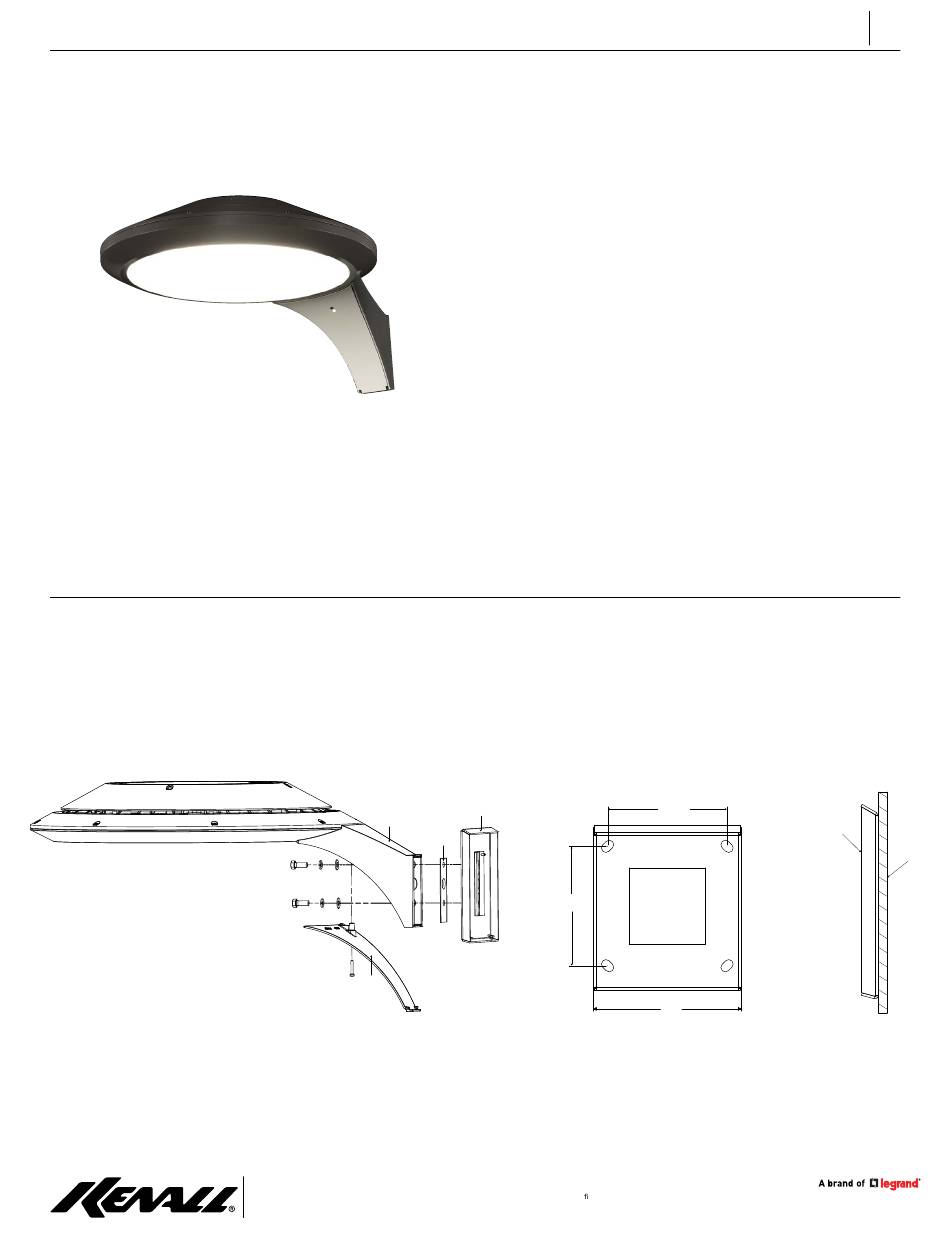

1. Install Hanger Bracket to Fixture Arm as shown in Fig. 1. using the provided (2 each) bolts,lock and flat
washers. Torque to 20ft-lbs. (Thread adhesive is required).
2. Place the Wall Plate in desired location so that the flat surface is in contact with the wall and the angled
surface is pointing up and away from the wall. Mark locations for supporting anchors (See Figure 2).
3. Secure Wall Plate with the supporting anchors using 3/8" bolts or studs (by others).
FIGURE 1
Fixture
Wall
Arm
Mount
Adapter
Wiring
Cover
www.kenall.com P: 800-4-Kenall
This product may be covered by patents found at www.kenall.com/patents. Content of speci cation sheets is subject to change; please consult www.kenall.com for current product details.
INSTALLATION INSTRUCTIONS

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions
should always be followed, including the following:
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE
APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH
THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND
THE HAZARDS INVOLVED. DISCONNECT POWER TO ALL CIRCUITS
BEFORE WIRING FIXTURE. INSTALL IN ACCORDANCE WITH
ALL NATIONAL, STATE, AND LOCAL CODES. DO NOT CONNECT
TO AN UNGROUNDED SUPPLY. READ ALL FIXTURE MARKINGS
AND LABELS TO ENSURE CORRECT INSTALLATION OF FIXTURE.
SUPPLEMENTAL INSTRUCTIONS MAY BE LOCATED ON THE
FIXTURE, IN ADDITION TO THIS INSTRUCTION SHEET, REGARDING
ORIENTATION, OR MOUNTING RESTRICTIONS.
SAVE THESE INSTRUCTIONS
Wall Mounting Plate
Hole Pattern
Hanger
Bracket
6.25
F: 262-891-9701 10200 55th Street Kenosha, Wisconsin 53144
© 2018 Kenall Mfg. Co. All rights reserved.
6.25
Wall Mounting Plate
7.73
FIGURE 2
SA-WM_F-7794_021820
1
Side View
Wall
