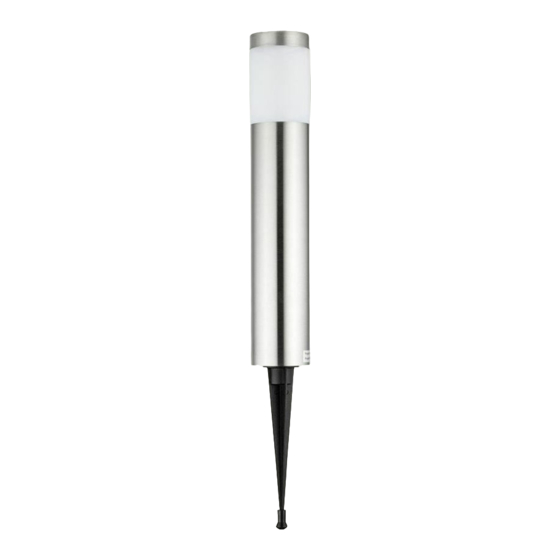

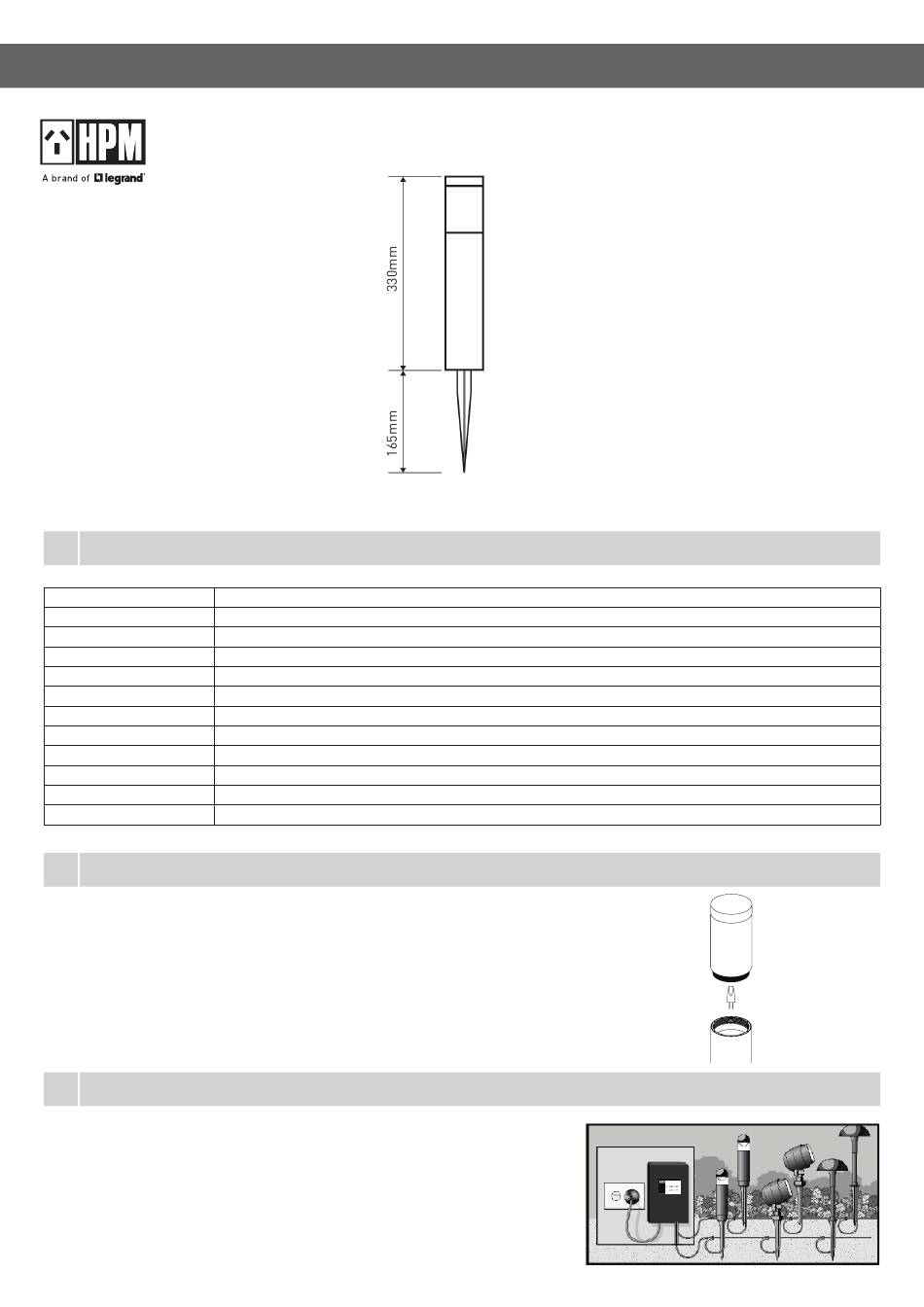

Led bollard

Advertisement

Quick Links

1

Specifications

Cat No
Voltage
Power
IP rating
CCT
Lumen output
Replacement globe
Mounting
Wiring connection
Housing Material / Finish
Lifetime (Lamp)
Warranty
2

Globe Assembly

Box includes 1x LED 1W G4 lamp (in a separate box).
When installing the Ìrst time, twist open the opal diffuser and push in lamp
3

Cable Layout

If your installation includes multiple lights, HPM strongly recommends that you limit individual
cable lengths to 20 metres, or use HPM heavier duty cable, otherwise lights may get progressively
dimmer towards the end of the cable (voltage drop). See section for accessories
If your installation requires a total of more than 20 metres of cable, consider running two seperate
cables from the transformer output.
It is recommended that the LED lighting does not exceed 50% of the load rating of the transformer.
Refer to section 'Choosing a suitable transformer' for further information
RGLLED001
RGLLED001
12Vac
1W
IP54
2700K
100 lm (lamp only)
1W G4 LED Bi-Pin LAMP
Plastic Ground stake
Jaw Lock connector
Stainless Steel 304
6000hrs @ 25˚C
1 yr (Excludes Globe)
LED Bollard
Instruction Manual
Cat. RGLLED001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPM RGLLED001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LEGRAND HPM RGLLED001

  • Page 1 LED Bollard Instruction Manual Cat. RGLLED001 RGLLED001 Specifications Cat No RGLLED001 Voltage 12Vac Power IP rating IP54 2700K Lumen output 100 lm (lamp only) Replacement globe 1W G4 LED Bi-Pin LAMP Mounting Plastic Ground stake Wiring connection Jaw Lock connector Housing Material / Finish Stainless Steel 304 Lifetime (Lamp)
  • Page 2 Installation To connect your garden lights, follow the instructions below: STEP 1 Place your garden lights in the approximate position you want them to be. STEP 2 Lay out the cable where you want your lights to be located, remembering to allow sufÌcient cable to connect to the transformer. Try to avoid laying the cable where frequent digging may occur.
  • Page 3 Customer Service For all Customer Service and Technical Support Legrand warrants this product for a period of 1 year from the date of purchase when used in accordance with these instructions and considering the disclaimers listed herein. please call Monday to Friday during business hours.
