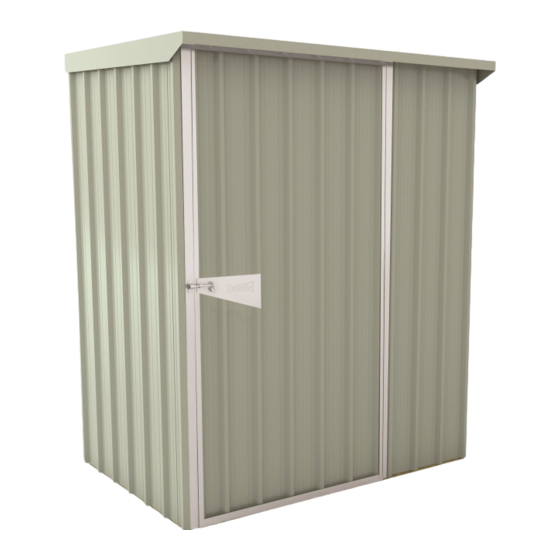

ASSEMBLY INSTRUCTIONS
SM1510
BASE SIZE: 1.520m x 1.020m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart Store SM1510 and is the answer not in the manual?

Questions and answers

Related Manuals for Riverlea Smart Store SM1510

Summary of Contents for Riverlea Smart Store SM1510

  • Page 1 ASSEMBLY INSTRUCTIONS SM1510 BASE SIZE: 1.520m x 1.020m...

  • Page 3: Before You Start

    CONGRATULATIONS ON PURCHASING A DURATUF SMART STORE SHED. BEFORE YOU BEGIN THE ASSEMBLY PLEASE NOTE SOME IMPORTANT POINTS BEFORE YOU START: • Read all instructions carefully • Identify all parts and check quantities against parts list • Select a level site •...
  • Page 4 SM1510 PARTS LIST CLADDING + FLASHING + HARDWARE PACK 1 DESCRIPTION DIAGRAM CHECKED Back Wall - 1.950m Side Wall Angle- 1.935m Side Wall Angle Sheets- 1.905m Front Wall Sheets - 1.890m Roof - 1.110m Door Sheets Narrow- 1.850m Door Sides - 1.850m Corner Door Jamb - 1.890m Door Jamb - 1.890m Door Brace - 1.160m...
  • Page 5 SM1510 FRAMING PACK PARTS LIST PACK 2 TIMBER PACK DESCRIPTION DIAGRAM Front/Back Bottom Plates - H4 (Green) 1.520 m Front/Back Top Plate - H1 (Red) 1.520 m Side Wall Bottom Plates - H4 (Green) 1.020 m Side Wall Top Plates - H1 (Red) 1.022m Ridge - 1.555m...

  • Page 6: Parts Location

    PARTS LOCATION Ridge Flashing Roof Sheets 3 Sheets Barge Flashing Spouting Back Wall Sheets 3 Sheets Top Plate Side Top Plate Back Top Plate Front Door Brace Front Wall Sheet Hinge Door Sheets Padbolt Support Door Jambs Side Wall Sheets Bottom Plate Front Door Side Bottom Plate Side...
  • Page 7 FOUNDATION No doubt by now you will have decided what sort of base you are putting down. Please read the section that applies to your situation. If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed. This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.
  • Page 8 ASSEMBLE DOOR SELECT: 2 x 1.850 m Door Sheets (Narrow) 2 x 0.945 m Door Top/Bottom Flashing 2 x 1.850 m Door Side Flashings 3 x Hinges 1 x Padbolt Support Flashing 2 x 1.160 m Door Brace Flashings 59 x Rivets fig.1 STEP 1: •...
  • Page 9 ASSEMBLE SIDE PANELS SELECT: IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER BASE PLATE –READ THE FOLLOWING; 2 x 1.935 m Side Wall Sheets (Angled) 2 x 1.905 m Side Wall Sheets (Angled) For sheds with Raised Base Plate option only (see page 6), deduct 2 x 1.022m Top Plates (Red) 30mm from measurement shown between Top and Bottom Plates on 2 x 1.020m Bottom Plates (Green)
  • Page 10 ASSEMBLE BACK PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 3 x 1.950 m Wall Sheets For sheds with Raised Base Plate option only (see page 6), deduct 1 x 1.520 m Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 1.520 m Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate...
  • Page 11 ASSEMBLE FRONT PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 1 x 1.520 Top Plate (Red) For sheds with Raised Base Plate option only (see page 6), deduct 1 x 1.520 Bottom Plate (Green) 30mm from measurement shown between Top and Bottom Plates on 1 x 1.890 Wall Sheet all wall panels, so cladding protrudes 20mm below bottom plate...

  • Page 12: Wall Panel Assembly

    WALL PANEL ASSEMBLY SELECT: 4 x Pre-made Wall Panels SIDE 16 x 40mm Screws OVERLAPS BACK 16 x Rivets TOP PLATE STEP 1: BACK WALL • Stand the Back Panel and the Side Panel BOTTOM PLATE up using someone to support the panels while they are screwed together.

  • Page 13: Roof Assembly

    ROOF ASSEMBLY IMPORTANT IMPORTANT SELECT: Use 50mm Clouts only on outside ribs covered by Barge flashings. Predrill Use 50mm Clouts only on outside ribs covered by Barge flashings and back holes using a 3.5mm drill bit. Use Roofing Screws on all other ribs. wall top plate.
  • Page 14 SECURING SHED Secure your shed using Treated Timber Pegs or a Bolt Down Kit TIMBER PEGS—WOODEN FLOOR • The optional Duratuf Timber Peg Down Kit includes six H5 treated timber pegs that can be hammered into the ground and then attached to the Base Plate with stainless steel screws.

  • Page 16: Year Warranty

    20 YEAR WARRANTY Riverlea Group Ltd warrant that the cladding used in the manufacture of the Smart Store shed will not rust within 20 years from the date of purchase. Any liability for product failure that may arise will be limited to repair or replacement of the defective product and will only apply for the benefit of the original purchaser.
