Riverlea SmartStore SM2020 Assembly Instructions Manual

Base size: 2.020m x 2.020m
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

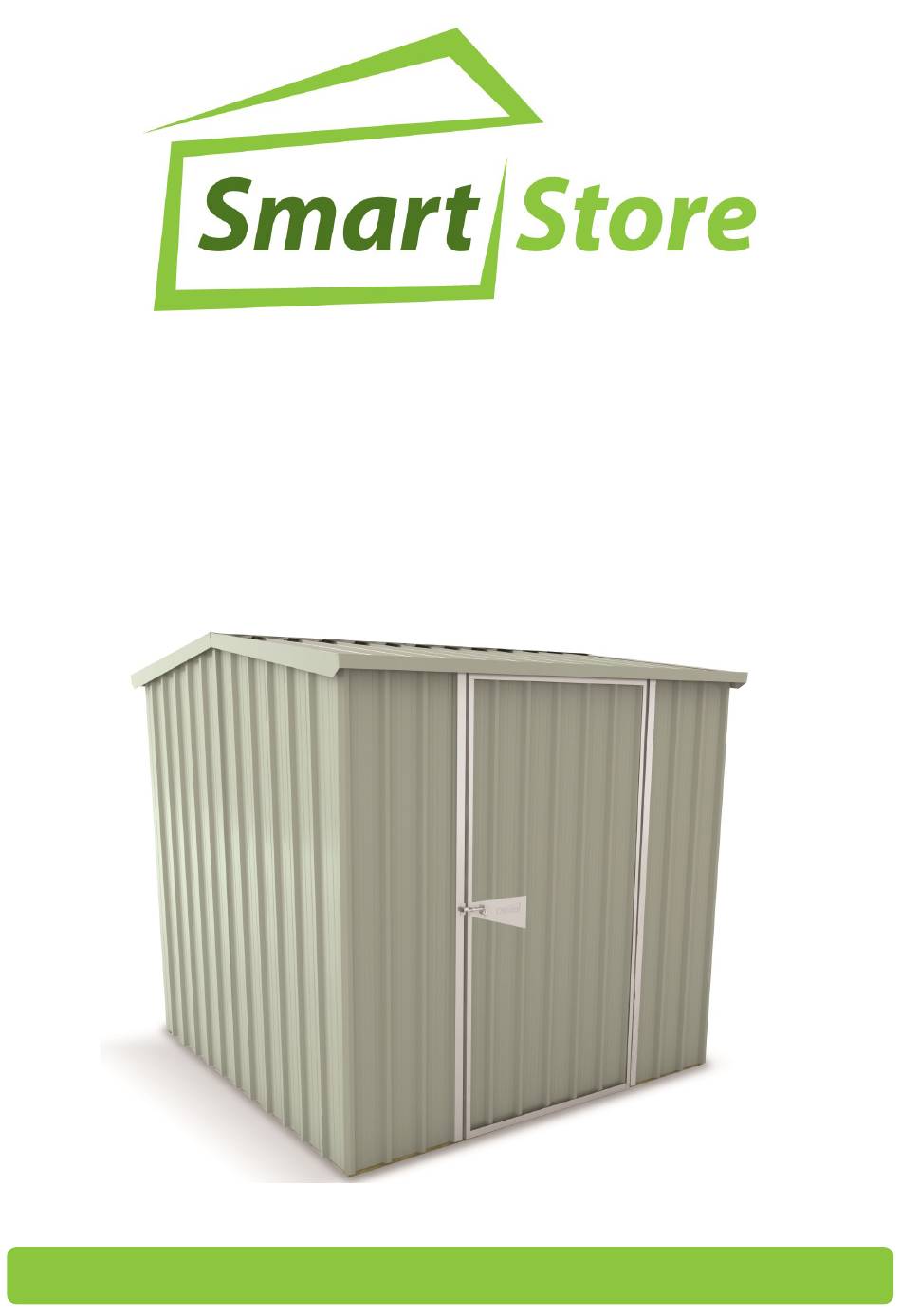

ASSEMBLY INSTRUCTIONS
SM2020
BASE SIZE: 2.020m x 2.020m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartStore SM2020 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Riverlea SmartStore SM2020

Summary of Contents for Riverlea SmartStore SM2020

  • Page 1 ASSEMBLY INSTRUCTIONS SM2020 BASE SIZE: 2.020m x 2.020m...
  • Page 2 CHECK OUT OUR ASSEMBLY VIDEO...

  • Page 3: Before You Start

    CONGRATULATIONS ON PURCHASING A DURATUF SMART STORE SHED. BEFORE YOU BEGIN THE ASSEMBLY PLEASE NOTE SOME IMPORTANT POINTS BEFORE YOU START: • Read all instructions carefully • Identify all parts and check quantities against parts list • Select a level site •...
  • Page 4 SM2020 PARTS LIST PACK 1 CLADDING + FLASHINGS + HARDWARE DESCRIPTION DIAGRAM CHECKED Front & Back Wall - 1.890m Side Wall Angle- 1.920m Side Wall Angle- 1.980m Roof - 2.200m Door Sheet Narrow- 1.850m Door Sides - 1.850m Door Jamb - 1.890m Door Brace - 1.160m Barge - 1.102m Ridge Cap - 2.055m...
  • Page 5 SM2020 PARTS LIST PACK 2 TIMBER DESCRIPTION DIAGRAM Front/Back Bottom Plates - H4 (Green) 2.020 m Front & Back Top Plate - H1 (Red) 2.020 m Side Wall Bottom Plates - H4 (Green) 2.020 m Side Wall Top Plates - H1 (Red) 2.020 m Ridge Beam - 90 x 45 2.020m...

  • Page 6: Parts Location

    PARTS LOCATION Roof Sheets Ridge Flashing Barge Flashing Spouting Back Wall Sheets Ridge Beam Top Plate Back Jack Stud Top Plate Side Top Plate Front Door Brace Front Wall Sheet Hinge Door Sheets Door Jambs Side Wall Sheets Padbolt Support Bottom Plate Side Front Wall Sheet Door Side Flashing...
  • Page 7 FOUNDATION No doubt by now you will have decided what sort of base you are putting down. Please read the section that applies to your situation. If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed. This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.
  • Page 8 ASSEMBLE DOOR SELECT: 2 x 1.850 m Door Sheets (Narrow) 2 x 0.945 m Door Top/Bottom Flashings 2 x 1.850 m Door Side Flashings 3 x Hinges 1 x Padbolt Support Flashing 2 x 1.160 m Door Brace Flashings 59 x Rivets fig.3 STEP 1: •...
  • Page 9 ASSEMBLE SIDE PANELS SELECT: IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER BASE PLATE –READ THE FOLLOWING; 4 x 1.920 m Gable Wall Sheets (Angled) 4 x 1.980 m Gable Wall Sheets (Angled) For sheds with Raised Base Plate option only (see page 6), deduct 2 x 2.020 m Top Plates (Red) 30mm from measurement shown between Top and Bottom Plates on 2 x 2.020 m Bottom Plates (Green)
  • Page 10 ASSEMBLE BACK PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 4 x 1.890 m Wall Sheets For sheds with Raised Base Plate option only (see page 6), deduct 1 x 2.020 m Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 2.020 m Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate...
  • Page 11 ASSEMBLE FRONT PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 2 x 1.890 Wall Sheets For sheds with Raised Base Plate option only (see page 6), deduct 1 x 2.020 Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 2.020 Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate 2 x 1.890 Door Jamb Flashings...

  • Page 12: Wall Panel Assembly

    WALL PANEL ASSEMBLY SELECT: 4 x Pre-made Wall Panels SIDE 16 x 40mm Screws OVERLAPS BACK 16 x Rivets TOP PLATE STEP 1: BACK WALL • Stand the Back Panel and the Side Panel BOTTOM PLATE up using someone to support the panels while they are screwed together.

  • Page 13: Roof Assembly

    ROOF ASSEMBLY SELECT: IMPORTANT—FOR SHEDS WITH OPTIONAL CLEAR ROOF PANEL 4 x 2.200 m Roof Sheets Assemble as below, making sure that the Clear Roof Sheets 2 x 2.055 m Spouting overlap the standard roof sheets on both sides. 4 x 1.102 m Barges 1 x 2.055 m Ridge Flashing The Clear Roof Panel must be secured to the Top Plate and the 1 x 2.020 m Ridge Beam...
  • Page 14 ROOF ASSEMBLY CONT... IMPORTANT Use 50mm Clouts only on ribs covered by flashings, shown in fig.2. Predrill holes using a 3.5mm drill bit. Use Roofing Screws on all other ribs and pans. Ensure screws are not overtightened as this can damage the seals and cause the shed to leak.
  • Page 15 SECURING SHED Secure your shed using Treated Timber Pegs or a Bolt Down Kit TIMBER PEGS—WOODEN FLOOR • The optional Duratuf Timber Peg Down Kit includes six H5 treated timber pegs that can be hammered into the ground and then attached to the Base Plate with stainless steel screws.

  • Page 16: Year Warranty

    20 YEAR WARRANTY Riverlea Group Ltd warrant that the cladding used in the manufacture of the Smartstore shed will not rust within 20 years from the date of purchase. Any liability for product failure that may arise will be limited to repair or replacement of the defective product and will only apply for the benefit of the original purchaser.
