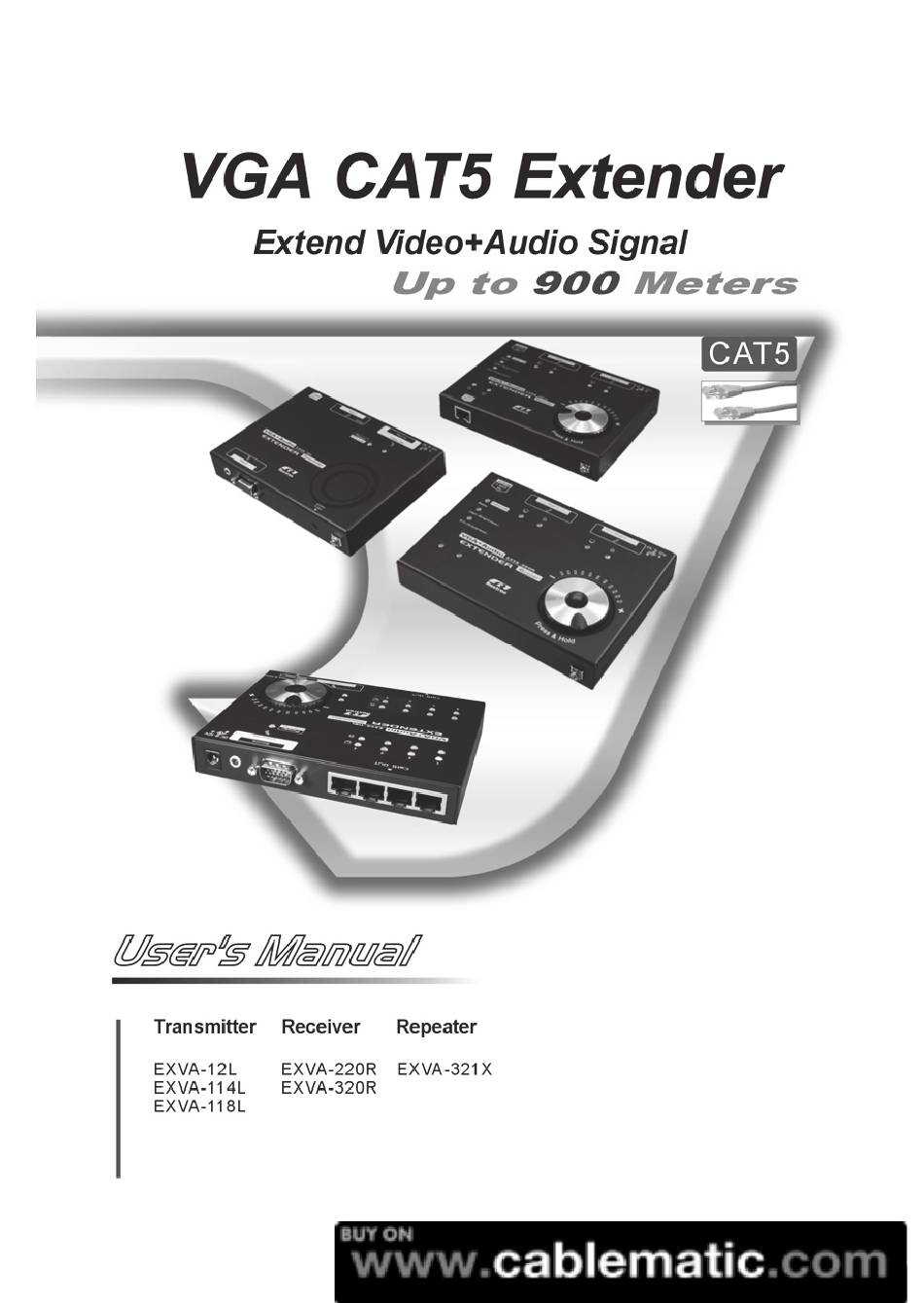

Introduction ----------------- Overview The “Video+Audio CAT5 Extender” pair consists of one Local Unit (Transmitter) and one Receiver Unit featuring to transmit Video+Audio signals with the resolution up to WUXGA (1920 x 1200) / Full HD (1920 x 1080) / UXGA (1600 X 1200) via CAT5 cables. The Local Unit duplicates the Video+Audio signals from one input source port to one or two local output port(s) and transmits (duplicates) the Video+Audio signals to 1/4/8 Receivers / Repeaters (Remote Unit) via the CAT5 connector;...
Features ■ Compatible with most of the popular screen resolution of WUXGA (1920 x 1200) / Full HD (1920 x 1080) / UXGA (1600 X 1200) ■ Transmit the superb quality of VGA+Audio signals via CATx technology to 300 meters away or up to 900 meters with 2 repeaters in between ■...
Package Content Package For One Set Quantity Extender Local Unit (Transmitter) Extender Receiver Unit Power Adapter with necessary AC Cord Plug-in Power Adapter Ground Wire User Manual Foot Pad Set Package For One Unit Quantity Extender Unit (Repeater) Power Adapter with necessary AC Cord Plug-in Power Adapter Ground Wire User Manual...
CAT5 Cable ----------------- The Extender Pair requires a piece of UTP (Unshielded Twisted Pair) CAT5 cables. The cable must be wired according to the EIA/TIA 568B industry standard as shown below. Wire Color Pair White/Orange Orange White/Green Blue White/Blue Green White/Brown Brown NOTE: CAT5, CAT5e or CAT6 cables are applicable to the extender pair.
Installation ----------------- WARNING ● Prior to the installation, ensure to power off all devices that will be connected to this system. ● Ensure that all devices you will connect are properly grounded. ● Place cables away from fluorescent lights, air conditioners, and machines that are likely to generate electrical noise.
Connection Pattern The following figures show typical applications of Extender series. The model you have purchased may be slightly different from those described in the illustrations. (Video+Audio) Transmitter Local Unit (EXVA-12L) Local Unit (EXVA-118L) (optional) (Video+Audio) Receiver (Video+Audio) Repeater (optional) (EXVA-320R) (EXVA-321X)
Complete Connection Patterns NOTE: Except the CAT5 cable, Video source, Audio source and power supplies, not all devices shown below are required for the pair to operate. Pattern 1: Transmitter Unit + Receiver Unit Achieve the total signal transmission distance of 300 meters as the diagram shown below.
Page 10
Pattern 2: Transmitter Unit + Repeater Unit + Receiver Unit Achieve the total signal transmission distance of 600 meters.
Page 11
Pattern 3: Transmitter + Repeater + Repeater + Receiver Achieve the total signal transmission distance of 900 meters as the diagram shown below. Example of EXVA-12L, EXVA-321X, and EXVA-320R...
Page 12
Pattern 4: Transmitter + Repeater + Repeater + Receiver Achieve the total signal transmission distance of 900 meters as the diagram shown below. Example of EXVA-118L, EXVA-321X, and EXVA-320R...
Operation ---------------- LED Display Local Unit (Transmitter) EXVA-12L Green: Power On Flashing: EDID Copy Status Blue: Video Source detected Local Unit (Transmitter) EXVA-114 / 118L Green: Power On Blue: Video Source detected Flashing: EDID Copy Status Video Output Signal Volume Indication Cat5 Video Output Signal Cat5 Audio Output Signal...
Page 14
Receiver Unit (EXVA-220R / 320R) /Repeater Unit (EXVA-321X) V1,V2 Video Output Signal A1,A2 Volume Indication Equalization Mode Indication Gain Mode Indication Green: Power On Blue: Skew Mode for Blue Remote Unit (EXVA-321X) Green: Skew Mode for Green Red: Skew Mode for Red Cat5 Video Output Signal Cat5 Audio Output Signal...
LED Selection Transmitter Unit for 4-Port and 8-Port Models There is a jog wheel on the top panel of 4/8-port Transmitter Unit, which can be used to turn on/off the video signal output adjust the volume. A set of LEDs on the top panel of the Unit is divided into two groups (as the figure shown below), namely, “Group 1”...
Page 16
For instance, the video LED on the remote output port 2 flashes ORANGE indicating that the video signal of the output port 2 is selected. Before time out (20 seconds), users can press the jog wheel once to switch the status port from video to audio on the port 2.
Page 17
Receiver/Repeater Unit There is a jog wheel on the top panel of Receiver Unit and Repeater Unit respectively, which can be used to turn on/off the video signal output, adjust the volume or adjust the video compensation. A set of LEDs on the top panel of the Unit are divided into two groups, namely, “Group A”...
Page 18
Group A Output Signal Selection: As the figure shown below, the first LED (Monitor) flashes indicating that the current output video signal is selected. Users can press the jog wheel once at a time to switch one port selection in sequence among the LEDs of group A. witching cycle for port selection on Receiver Unit witching cycle for port selection on Repeater Unit ...
Output Signal (Video/Audio) Adjustment Group (1,2,A) Output Signal Adjustment: When one of the output statuses (video/audio) among these groups is selected, the selected LED will flash indicating the activation; users can turn the jog wheel by following the clockwise / counterclockwise direction to turn on/off the video signal or to increase / decrease the volume as the diagram shown below The selected audio LED will emit ORANGE light according to the volume...
Video Compensation (Receiver / Repeater Unit only) Group B EQ / Gain / Skew Adjustment on Receiver / Repeater Unit: To optimize the video signal associated with various cable lengths, users may adjust the video compensation via the jog wheel on the Receiver / Repeater Unit.
EDID Copy In some cases users may suffer from display problems due to incorrect EDID communication between the display monitor and the PC graphics card or inappropriate EDID data programmed by display manufactures. The Transmitter Unit provide “EDID Copy” feature that allows the Unit to read the necessary EDID information from the attached video display and then provide it at all times to the attached computer.
Page 22
Step 3. Press and Hold the button “EDID Copy” on the side panel of the Unit for about TWO Seconds. Release button “EDID Copy” RIGHT AFTER two beeps of confirmation followed indicating that the EDID Copy is completed. Otherwise, if one long beep occurs, it means that the display monitor is not properly connected to “Port 1”...
Appendices ----------------- Specifications Transmitter EXVA-12L EXVA-114L EXVA-118L Video HDB15 x 1 Input Audio 3.5mm Ear Jack x 1 Video HDB15 x 2 HDB15 x 1 HDB15 x 1 Connector Output Audio 3.5mm Ear 3.5mm Ear Jack x 1 Connector Jack x 2 Extension RJ-45 x 1 RJ-45 x 4...
Page 24
Repeater Receiver EXVA-220R EXVA-321X EXVA-320R 200m Extension Distance (Max.) 300m 300m Input Extension RJ-45 x 1 RJ-45 x 1 Video HDB15 x 2 HDB15 x 2 Connector Output Audio 3.5mm Ear Jack x 2 3.5mm Ear Jack x 2 Connector Extension RJ-45 x 1 Video Status...
Page 25
Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY FOR DIRECT OR INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFIT, LOSS OF BUSINESS, OR FINANCIAL LOSS WHICH MAY BE CAUSED BY THE USE OF THE PRODUCT EXCEEDS THE PRICE PAID FOR THE PRODUCT.
