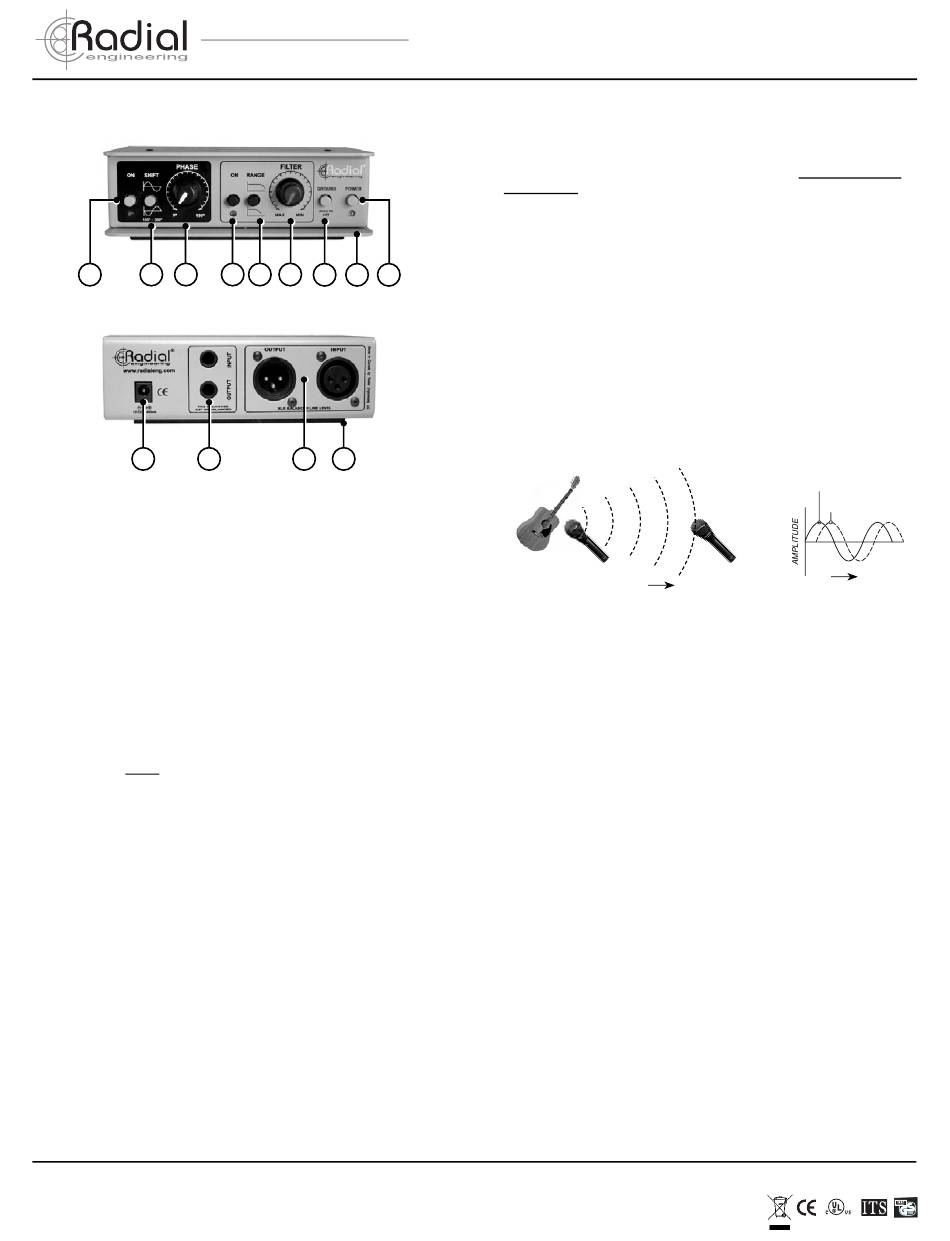

FEATURES AND FUNCTIONS
1. PHAZER ON: Bypasses the Phazer from the signal path to allow A/B
testing of phase effect.
2. SHIFT: Polarity reverse allows you to access the 181° to 360° phase
range and corrects inverted signals.
Out position: 0° to 180°. In position: 180° to 360°.
3. PHASE ADJUST: Controls the phase rotation over a 180° range. Used
with SHIFT control to cover full 360° phase rotation.
4. FILTER ON: Bypasses the low-pass fi lter for quick A/B comparison of
the un-fi ltered signal.
5. FILTER RANGE: Selects the frequency cut-off range for the FILTER
ADJUST control and allows the phase effect to be applied only to
frequencies below the cut-off point.
In position: 300Hz to 3.8kHz. Out position: 3kHz to 38kHz.
6. FILTER ADJUST: Sets the cut-off frequency for the low-pass fi lter within
the range set by the RANGE switch. Frequencies above the cut-off
are rolled-off.
7. GROUND LIFT: Disconnects pin-1 at the XLR outputs to eliminate
hum and buzz caused by ground loops.
8. BOOKEND DESIGN: Outer wrapper creates a protective zone around
switches and controls. All steel construction and baked enamel fi nish for
maximum strength, durability and years of trouble free performance.
9. POWER: Turns the Phazer on and off. LED illuminates when the
Phazer is active. It's recommended the Phazer be turned off before
connecting or disconnecting cables.
10. 15VDC PSU JACK: Connection for the included Radial AC power
adaptor. Do not substitute for another power supply.
11. ¼" PHONE JACKS: +4dB balanced or -10dB unbalanced line-level
input and output.
12. XLR JACKS: +4dB balanced line-level input and output. AES standard
pin-2 hot. Male and female connectors.
13. FULL BOTTOM PAD: No-slip bottom pad - reduces slipping in use and
provides mechanical and electrical isolation.
