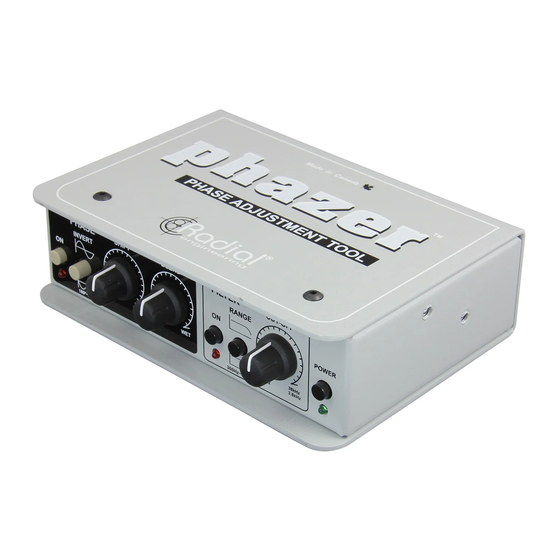

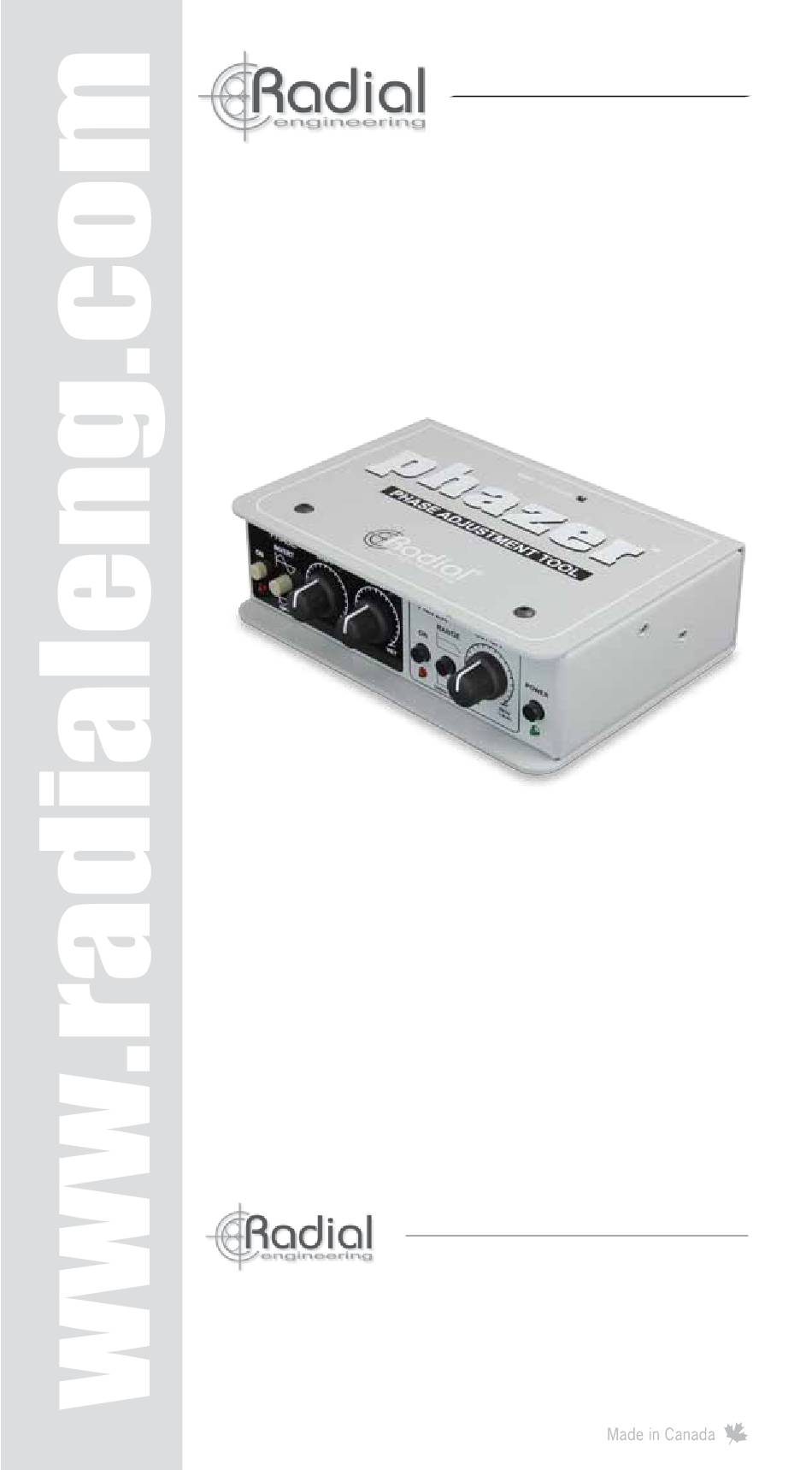

- Page 1 ® True to the Music Phazer ™ Owner's Manual True to the Music ® ™ Radial Engineering Ltd. 1588 Kebet Way, Port Coquitlam BC V3C 5M5 tel: 604-942-1001 • fax: 604-942-1010 info@radialeng.com • www.radialeng.com...
-
Page 2: Table Of Contents
® ™ Radial Phazer Owner's Manual Table of Contents ............Page Design Overview ..............1 Feature Set - Phazer ............2-3 Connections and Getting Started ........4-5 Adjusting The Phase ............6-7 Using The Filter ..............8 Applications ..............9-11 Block Diagram ..............12 Specifications ..............13 Warranty ................Back cover INTRODUCTION Congratulations on your purchase of a Radial Phazer. -
Page 3: Design Overview
Close Mic Close Mic Close Mic Close Mic Close Mic Close Mic Distant Mic Distant Mic Distant Mic Distant Mic Distant Mic Distant Mic Phazer Radial Engineering Ltd. ™ Time Time Time Time Time Time... -
Page 4: Feature Set - Phazer
300Hz to 3.8kHz range or 3kHz to 38kHz. 7. CUT-Off CONTROL: Adjusts the high-frequency cutoff point for the low-pass filter within the selected range. 8. POWER sWITCh: Turns on the Phazer. LED illuminates when unit is active. Radial Engineering Ltd. Phazer ™... - Page 5 13. XLR jaCks: Input and output connections for balanced +4dB sig- nals. 14. fULL BOTTOm PaD: Neoprene no-slip pad won't scratch your sur- face. 15. 14-gaUgE sTEEL ENCLOsURE: With bookend shell creates a protective zone for the controls and switches. Radial Engineering Ltd. Phazer ™...
-
Page 6: Connections And Getting Started
(+4dB). These can be with either XLR or TRS Phone jacks. Contacts 15VDC · 400mA TRS BALANCED XLR BALANCED LINE LEVEL XLR BALANCED LINE LEVEL 1/4” UNBALANCED Pin 1 Common Sleeve Pin 2 Hot (+) Pin 3 Cold (-) Ring Phazer ™ Radial Engineering Ltd. - Page 7 If no sound is heard turn your equipment off and check the connections. If all is well turn the level up to a comfortable listening level. If you hear hum or buzz, try depressing the GROUND LIFT switch. You are ready to start using the Phazer. Phazer Radial Engineering Ltd. ™...
-
Page 8: Adjusting The Phase
The blend function lets you apply this technique using a single sound and phase 'canceling' to create an effect. It's fun! Phazer Radial Engineering Ltd. ™... - Page 9 -250 -300 Near maximum setting 200Hz SHIFT SHIFT SHIFT SHIFT -350 reaches 180°. 10k 20k 10k 20k FREQUENCY (Hz) Phazer Radial Engineering Ltd. ™ 0º 0º 0 º 0 º 0 º 0 º 180º 180º 0º 0º 180º 180º...
-
Page 10: Using The Filter
RANGE Filter Cut-off POWER Filter Range 3kHz - 38kHz. 3kHz 38kHz Subtle filtering 300Hz 3.8kHz 300Hz~3.8kHz FILTER LEND CUT-OFF RANGE Filter Cut-off POWER Filter Range 300Hz - 3.8kHz. Extreme filtering. 3kHz 38kHz 300Hz 3.8kHz 300Hz~3.8kHz Phazer Radial Engineering Ltd. ™... -
Page 11: Applications
Wave Cycle sounds good on its own then use the SHIFT control to tune the phase of the DI signal until it aligns with the mic in a way that sounds good to you. Phazer ™ Radial Engineering Ltd. - Page 12 PA speakers, the bass-amp sound will ar- rive at the mix position a few milliseconds AFTER the sound waves from the PA, causing a phase offset. Bass Amp PA Speakers Time Difference in Degrees FOH Engineer Phazer Radial Engineering Ltd. ™...
- Page 13 The piezo's signal arrives instantaneously followed by the mic's signal a moment later. Shifting the piezo signal into alignment with the microphone will reinforce the fundamental creating a bigger and more natural bass sound. Phazer Radial Engineering Ltd. ™...
-
Page 14: Block Diagram
True to the Music Block Diagram Phazer Radial Engineering Ltd. ™... -
Page 15: Specifications
14-gauge steel chassis and outer shell. Durable powder coat Size: 5.8”w x 3.8”d x 1.8”h (147mm x 96.5mm x 46mm) Weight: 1.75 lb (0.82kg) Warranty: Radial 3-year, transferable Power: 15VDC (400mA), center pole positive * Subject to change without notice. Phazer Radial Engineering Ltd. ™... - Page 16 ThREE yEaR TRaNsfERaBLE LImITED WaRRaNTy RADIAL ENGINEERING LTD. (“Radial”) warrants this product to be free from defects in material and workmanship and will remedy any such defects free of charge according to the terms of this warranty. Radial will repair or replace...
