UNION PACIFIC BIG BOY
ARTICULATED STEAM ENGINE
OPERATING INSTRUCTIONS
For 2 & 3-Rail Models

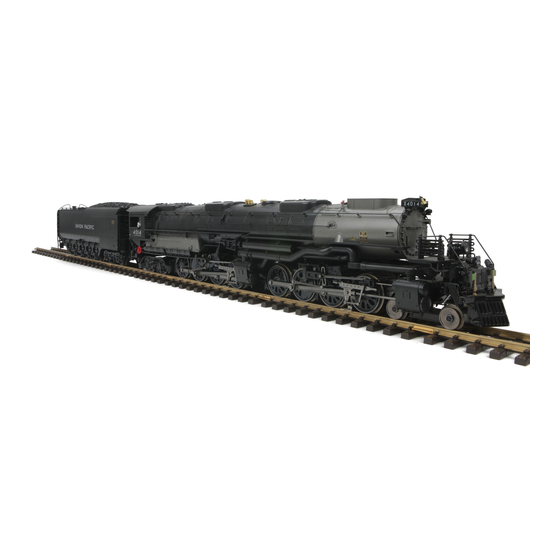

Thank you for purchasing the MTH Electric Trains Union Pacific Big Boy Die-Cast 4-8-8-4
steam engine. This 1/4" scale reproduction of the famous Union Pacific locomotive
measures over 35 inches in length and weighs over 19 pounds. Despite its scale size it still
operates on standard O-72 3-rail track with any compatible standard AC transformer, see
page 24, and is completely compatible with most 3-rail locomotives, rolling stock and
accessories. If you purchased the 2-rail version, the engine should negotiate 72 inch radius
track and is compatible with any DC power source.
The 3-rail locomotive and tender are equipped with several deluxe features that are simple
and fun to operate. Each feature is described among the following pages which should be
read before the engine is operated. For those of you who can't wait to get started, the Quick
Start Operating Instructions found on Page 3 should be read so that you understand the
basics of the operating system. Those features marked for 2 and 3-rail are found in both
versions. Features not marked as such are only available in the 3-rail version.
