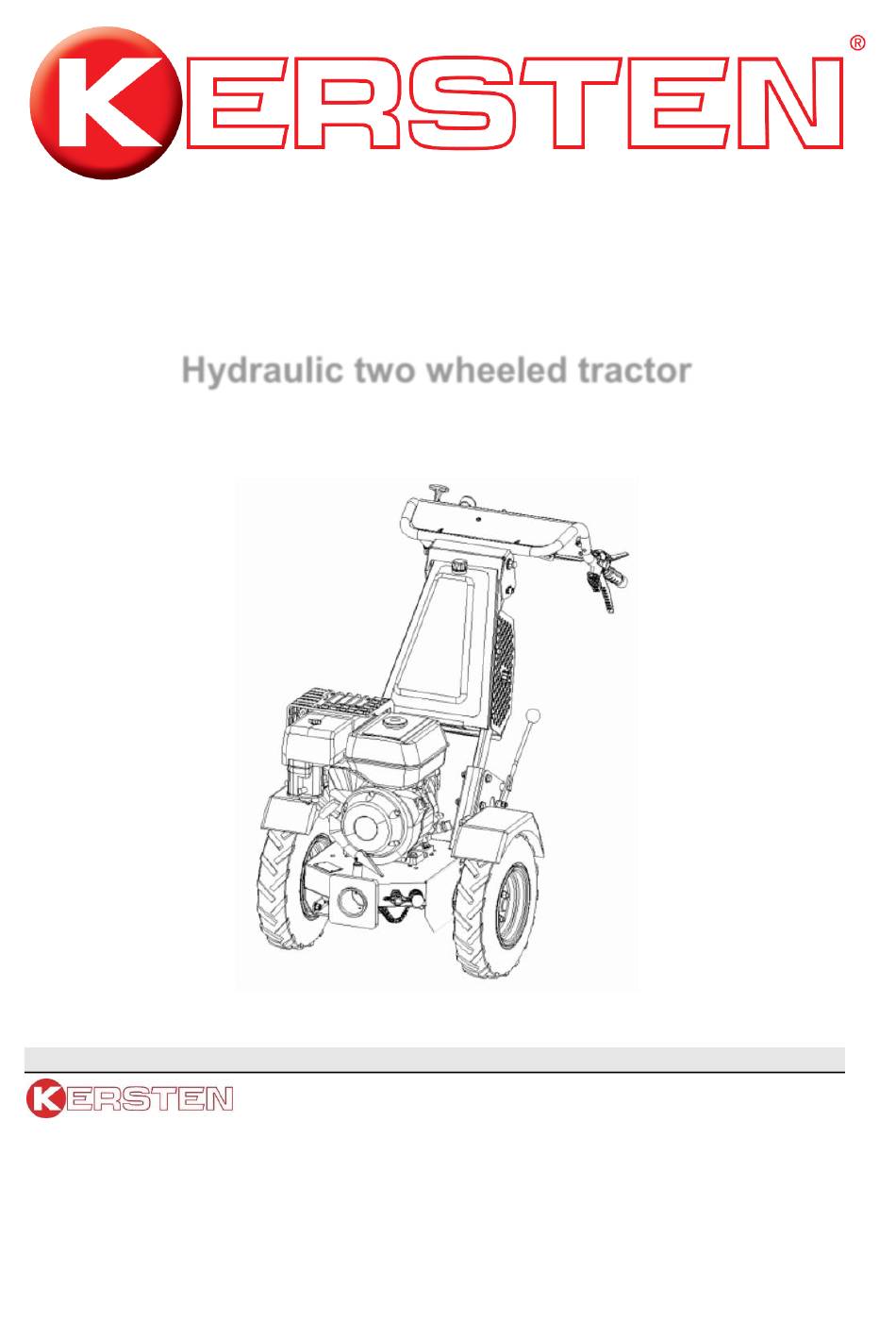

- Page 1 Original Operating Manual Hydraulic two wheeled tractor K2100 Order: B00005 Machine.-No: Version.:02 Date: 04.2015 Arealmaschinen GmbH Tel.:+49 (0) 2851 / 9234 – 10 Empeler Straße 95 Fax: +49 (0) 2851 / 9234 – 44 D - 46459 Rees www.kersten-maschinen.de...
-
Page 2: Table Of Contents
Contents Forward ....................Error! Bookmark not defined. About these Operating Instructions ............ Error! Bookmark not defined................ E EFORE TARTING RROR OOKMARK NOT DEFINED ........ E OTES ON THESE PERATING NSTRUCTIONS RROR OOKMARK NOT DEFINED Safety Guidelines for Hydraulic Two Wheeled Tractor .............. -
Page 3: Forward
. Keep this manual handy for future reference . You can read the important information and instructions if needed . We wish you many hours of fun with your new Kersten Machine. Dipl.- Ing. (FH) Robert Bosch Managing Director... -
Page 4: About These Operating Instructions
About these operating instructions The machine or the attachment is subject to technical progress . All information , illustrations and specifications meet the highest standards at the time of publication . but the information is subject to change without notice due to technical progress . No claims can be derived from issue with the descriptions and illustrations within this document. - Page 5 Safety notes for Hydrauic two wheel Tractor The important safety instructions in this manual cannot cover all possibilities. It goes without saying that common sense and caution are factors which are not installed in a machine, and must be used by the person who operates and maintains the machine.
- Page 6 1.1.2 Working and area of danger • The user is liable to third parties in the working area! • Staying in the immediate working area of the machine is prohibited! • Before starting Check the immediate surroundings. Pay particular attention to children and animals in the area and make sure you have a good field of vision.
- Page 7 • Secure the machine to prevent unauthourised use! • Stop the engine and, if possible, remove the key or the spark plug connector! • Do not leave the machine unsupervised while the engine is running! 1.1.7 Tyres and Fasteners • When working on the tyres, make sure the implement has been safely stopped and secured from moving.
- Page 8 1.1.10 Motor, Fuel and Oil • Stop the engine and turn off the ignition (If appliccable) when refueling the machine! • Do not refil in enclosed spaces, clean up any spillages immediately. • Keep all oil fuel and filters seperate and use proper containers for storage! •...
- Page 9 1.2 Editorial Pictograms Explanation of symbols used: Before starting up the machine, read and observe the operating instructions and safety instructions. Before repair, maintenance and cleaning work, stop the motor and disconnect the spark plug. Do not remove protective devices while the engine is running.
- Page 10 1.3 Special warnings and safety regulations for filled lead - acid - batteries • Notes on the battery and the operating instructions follow. • Use Eye protection. • Keep battery acid away from children. Risk of explosion: • Note the procedure for charging batteries as the mixture is highly explosive. •...
- Page 11 Instructions for Starter batteries 1. Remove and Install the Battery • Before removing the battery, the engine and any electrical equipment should be off. • Avoid creating a short with the tool. • When removing; first disconnect the negative terminal and then the positive. •...
- Page 12 5. When not in use • Keep the battery cool • Disconnect the negative terminal. • Check the battery level regularly and charge if necessary • When charging, first connect the positive terminal to the positive output or terminal on donor battery.
-
Page 13: Disposal
. Findings must be confirmed by the company Kersten Areal GmbH. Wearing parts are excluded from the guarantee. Furthermore, the warranty will be void in case of improper use, or when carrying out any maintenance incorrectly, by unauthorized persons or with the use of non-original spare parts. -
Page 14: Operation Of The Self Propelled Unit
• Operation of the self propelled unit Fig.7.1 Starting the engine • To start the engine; the driving lever ( Fig.7.1 ; item 5) must be in the "Off" position, in the recess of the shifting gate and the lever for the PTO ( Pos.3 Fig.7.1 ) must also be in the off position. If the levers are not in the position described and pictured above, the ignition will be off and the engine will not start. - Page 15 o Switching off the engine • Before switching off the engine, make sure that the drive lever ( Fig.7.1 ; item 5) is in the recess of the shifting gate and the lever for the PTO ( Fig.7.1 ; Item 3) is in the switch "Off" position. •...
- Page 16 Assembly Mounting the attachment • Before you install or remove the attachments , turn off the engine and remove the spark plug. • For recieving an attachment, both male and female parts of the reciever (on the machine and the attachment) should be free from dirt and well greased (see fig 8.1) •...
-
Page 17: Maintenance
Maintenance 7.1 General Maintenance instructions • Check all safety related parts of the machine before use. Failure to do so can result in injury to persons or damage to the machine. • oil change must be made according to the recommendations of the relevant motor manufacturer •... -
Page 18: Maintenance After 20 Hours
7.3 Maintenance after 20 hours of operation. • Periodically and at the beginning and end of the season grease or oil all the moving parts. • Grease the male coupling on the attachment and the female reciever on the machine. •... -
Page 19: Technical Data
• Technical Data Technical Data Type K 2100 Honda Engine Petrol Power 6,6 kW (9,0 PS) Max. torque 19,1 Nm / 2.500 min Capacity 270 ccm Upper idle speed 3.400 min Spark Plug NGK BPR 6 ES ca. 0,6 l Oil Engine oil SAE 10W-30 API SJ Fuel... - Page 20 Technical Data Parking brake optional mechanical brake Handlebars Height adjustable and vibration damped Steering unavailable Tyre pressure for: Standard values (max. Tire pressure 2 bar - risk of explosion) 4.00 – 8 Max. 2 bar Weight of base unit 110 kg (without tyres) 4.00-8 16x6,5-8 Weight of tyres...
- Page 21 Wiring diagram – Safety device • Technical data is subject to change! Designation Application - S1 Dead mans handle - S2 Drive Lever - S3 Hydraulic PTO Lever - L+ Engine ignition - L- Earth...
-
Page 22: Fault Diagnosis
Fault Diagnosis This chapter describes the main faults that may occur during operation, any major work should be carried out by an authourised dealer! Fault: Possible causes: Remedy: Petrol Engine: - Spark plug cap not on properly Put the cap back in position Petrol Engine not starting - Choke is required... - Page 23 Fault: Possible causes: Remedy: Petrol Engine: - Govener dirty or stuck Clean Govener linkage Petrol Engine Working irregularly - Engine stop cable defective, Leitung und Steckverbindungen prüfen Petrol Engine - Bad Earth Check Earth contact Will not turn off - Air filter is blocked Clean or replace air filter Petrol Engine has - Cylinder head gasket loose...
-
Page 24: Ec Declaration Of Conformity
EG – Konformitätserklärung • CE Déclaration de conformité EC Declaration of Conformity EG conformiteitsverklaring Nous Kersten Arealmaschinen GmbH Empeler Straße 95 D- 46459 Rees erklären, dass das déclarons que le herewith declare verklaren dat het Produkt product that the product... - Page 25 NOTE:...
- Page 26 Distributed in UK by Kersten (UK) Ltd Tel. 0118 986 9253 Progress House 39 Boulton Road Reading, RG2 0NH www.kerstenuk.com - info@kerstenuk.com...
