Kersten UBS Easy 9 G Original Operating Instructions

Hydrostatic two wheel tractor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

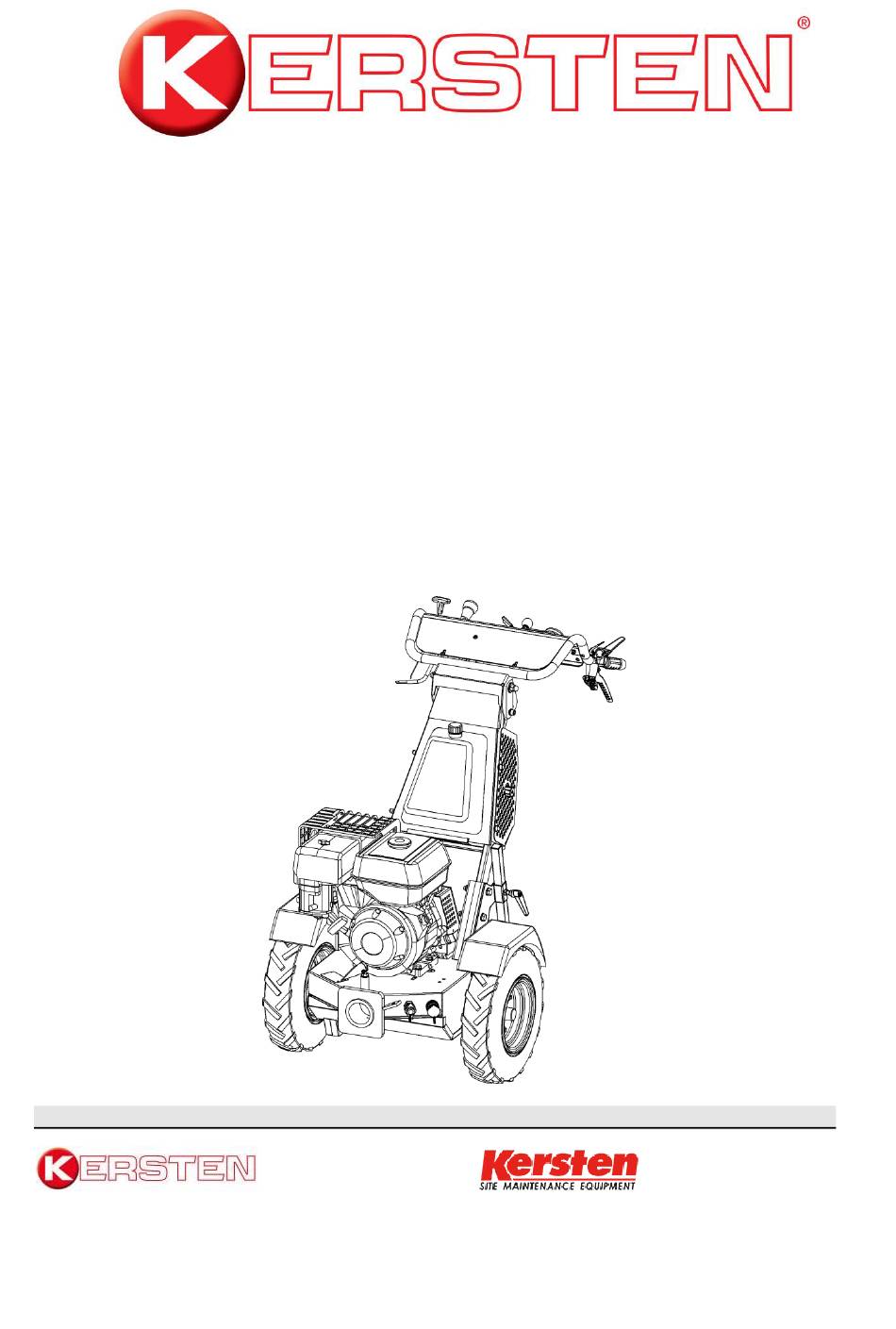

Original operating
Hydrostatic Two Wheel Tractor
UBS Easy Models 9 G - 13 GE
Order number: B00013
Manufactured by Kersten
Arealmaschinen GmbH
Empeler Straße 95
D - 46459 Rees
www.kersten-maschinen.de
instructions
from machine No: 52361
Rev.: R01
Distributed in UK by
Kersten (UK) Ltd
Progrees House
39 Boulton Road Reading, RG2 0NH
www.kerstenuk.com - info@kerstenuk.com
Date: 01.04.2013
Tel. 0118 986 9253

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UBS Easy 9 G and is the answer not in the manual?

Questions and answers

Related Manuals for Kersten UBS Easy 9 G

Summary of Contents for Kersten UBS Easy 9 G

  • Page 1 UBS Easy Models 9 G - 13 GE Order number: B00013 from machine No: 52361 Rev.: R01 Date: 01.04.2013 Distributed in UK by Manufactured by Kersten Kersten (UK) Ltd Tel. 0118 986 9253 Arealmaschinen GmbH Progrees House Empeler Straße 95...

  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION ......................... 1 ABOUT THESE INSTRUCTIONS ....................2 BEFORE COMMISSIONING ............................NOTES ON THIS MANUAL ............................SAFETY INSTRUCTIONS FOR HYDROSTATIC SINGLE TOWERS ..........3 INTENDED USE................................GENERAL SAFETY AND ACCIDENT PREVENTION RULES ..................PICTOGRAMS USED ..............................WARNINGS AND SAFETY INSTRUCTIONS FOR FILLED LEAD - ACID BATTERIES ..........INSTRUCTIONS FOR USE FOR STARTER BATTERIES ....................

  • Page 3: Introduction

    Introduction Dear Customer, Thank you for choosing a quality product from Kersten. This product has been manufactured according to the most up-to-date production methods and extensive quality assurance measures, because only when you are satisfied with your device, our goal is reached.

  • Page 4: Before Commissioning

    Since self-propelled implements and attachments can cause serious accidents or hazards if used improperly, the first time the Kersten implement is commissioned, it must be instructed by competent and authorized persons absolutely necessary. The best way to familiarize yourself with its basic functions and its handling is to choose a free and level terrain for your first trip.

  • Page 5: About These Instructions

    Safety instructions Safety instructions for hydrostatic towed tractors The most important safety instructions in this manual cannot cover all possibilities. It goes without saying that common sense and caution are factors that are not built into a machine but must be brought by the person who uses and maintains the machine.

  • Page 6: Safety Instructions For Hydrostatic Single Towers

    Safety instructions • Do not make any changes to the engine's upper idle speed. Too high a speed increases the risk of accidents. • Unauthorized conversions that endanger the operational safety of the machine are prohibited! • Check the machine for operational safety before each use! 3.2.2 Work and danger area •...
  • Page 7 Safety instructions • If, for example, the attachment has caught a foreign object and blocked it, stop the engine and clean the attachment with a suitable tool! Always switch off the engine when handling or cleaning the implement! • Do not leave the operating station until all tools of the attachment have come to a standstill! •...
  • Page 8 Safety instructions 3.2.6 Leaving the machine • When stopping the machine, close the fuel cock (if present)! • By using wheel chocks or, if necessary, by applying the parking brake, secure the machine from rolling away when leaving the vehicle. •...
  • Page 9 Safety instructions • Cleaning with the high-pressure cleaner should be carried out so that the water jet is not held directly in bearings, turned parts, grease nipples, shaft seals, wheel hubs, etc. After each cleaning with the high-pressure device, the lubrication points must be re-greased. In the case of infringement, the right to guarantee expires! •...

  • Page 10: Pictograms Used

    Safety instructions Pictograms used Explanation of the pictograms used: Before commissioning read and observe the operating instructions and safety instructions. Switch off the engine and remove the spark plug connector before carrying out any repair, maintenance or cleaning work. Never open or remove protective devices while the engine is running! Touch machine parts only when they have come to a complete stop.

  • Page 11: Warnings And Safety Instructions For Filled Lead - Acid Batteries

    Safety instructions Warnings and safety instructions for filled lead - acid batteries • Follow the instructions on the battery and in the operating instructions. • Use eye protection. • Keep children away from acid and battery. Explosion hazard: • When charging batteries, a highly explosive bang mixture is produced, so please note the following: •...

  • Page 12: Instructions For Use For Starter Batteries

    Safety instructions 3.5 Instructions for Use for Starter Batteries 1. Removal and installation of the battery • Before removing the battery, switch off the engine and all power consumers. • Avoid short circuits due to tools. • When removing, first disconnect the negative pole (-), then the positive pole (+). •...
  • Page 13 Safety instructions 5. Decommissioning • Store the battery in a cool place. • When decommissioning, disconnect the negative pole (-). • Regularly check the charge status of the battery and recharge if necessary.

  • Page 14: Disposal

    Complaints must be confirmed by the company Kersten Arealmaschinen GmbH. Wear parts are excluded from the warranty. Furthermore, the warranty expires due to improper operation, when performing no or incorrect maintenance work, when using inadmissible equipment and when using non-original spare parts.

  • Page 15: Operating The Hydrostatic Single Towers

    Operation of the hydrostatic single-axle tractor Illustration 7.1 Operation of the hydrostatic tow tractor 7.1 Start the engine • To start the engine, the drive lever (Fig. 7.1, Pos. 6) in the recess of the shift gate and the mechanical auxiliary drive lever (Fig. 7.1, Pos. 4) must be in the "Off" position. In addition, the lower lever for the hydraulic drive (Fig.

  • Page 16: Disconnecting The Internal Combustion Engine

    Operation of the hydrostatic single-axle tractor • The required travel speed is set on the rotary knob (Fig. 7.1, item 5). The setting of the driving speed and the preselection of the direction of travel may only be carried out when the single-axle tractor is at a standstill! •...

  • Page 17: Assembly

    Montage Montage 8.1 Mounting attachment • To mount an attachment, the attachment and attachment tube on the drive unit must be clean and well-lubricated (see Figure 8.1). • The coupling of the attachment and the receiving tube of the drive unit must be at the same height to allow them to be pushed together.

  • Page 18: Mounting The Hand Protection

    Montage 8.2 Assembly of the hand guard The installation of the handguard is described in more detail below and illustrated in Figure 8.2. 1. To install the left-hand guard, place the supplied drilling template (Fig. 8.2, item 1) on the hand spar (Fig.

  • Page 19: General Information On Loading And Transport Information

    General instructions for load securing and transport General instructions for load securing and transport • Pay attention to the trailer load of the towing vehicle and the permissible total weight of the trailer! • Suitable loading ramps with sufficient load-bearing capacity must be used for loading the machine.

  • Page 20: Maintenance

    Maintenance Maintenance 10.1 General maintenance instructions • Personal injury or damage to the machine may occur. • Check all safety-related parts before every use of the machine. • Oil change intervals must be carried out according to the recommendations of the respective engine manufacturer.

  • Page 21: Maintenance After 20 Hours Of Operation Or Longer Service Life

    Maintenance 10.3 Maintenance after 20 operating hours or longer downtime • At regular intervals and at the beginning and end of the season, the moving parts of the unit must be greased or oiled. • There is a grease nipple underneath the device holder on the single-axle tractor and lubricate it regularly.

  • Page 22: Technical Data

    Technical data Technical data Technical data - General PTO speed 1,200 rpm at 3,000 rpm engine speed seen clockwise on PTO shaft Direction of rotation seen clockwise from the front on PTO hydraulic 0 – 100 % infinitely variable about 10 l Synthetic Ester Bio-hydraulic oil Avia Hydraulic oil tank Syntofluid N68 (recommended)
  • Page 23 Technical data Technische Daten – 9 PS Benzinmotor engine Honda Top-controlled four-stroke single-cylinder engine power 6,6 kW (9 hp) Max. torque 19,1 Nm / 2.500 rmp capacity 270 cc upper idle speed 3.000 min spark plug z.B. NGK BPR 6 ES Engine oil approx.

  • Page 24: Wiring Plan - Safety Device

    Wiring diagram Wiring diagram – Safety device Reserve technical changes! Name Deadman - S1 Lever - S2 Hydraulic auxiliary drive - S3 Ignition coil, engine - L+ Dimensions - L-...

  • Page 25: Malfunction And The Resolution

    Fault cause and remedy Fault cause and remedy This chapter describes in more detail the most important faults that can occur during operation on the hydrostatic single-axle unit. Faults which require major intervention must always be rectified by your specialist workshop. Observe safety instructions! Disorder: Possible causes:...
  • Page 26 Fault cause and remedy Malfunction: Possible causes: Remedy: Gasoline engine: - Controller linkage dirty, Clean governor linkage Gasoline engine jammed works irregularty - Engine stop line defective, Gasoline engine Check wiring and connectors - missing sizes Does not stop in Check earth contact The stop position - Air filter dirty...
  • Page 27 Fault cause and remedy Malfunction: Possible causes: Remedy: Drive: - Different tire pressures Machine moves on Check tire pressures and inflate if one side to the left necessary - Clamp the wheel fork (s) of the Lubricate all wheel forks, so this to turn Or to the right attachment smoothly...

  • Page 28: Ec Declaration Of Conformity

    Einachsschlepper Porte-Outils Tool Carrier Werktuigdrager UBS Easy 9 G – 9 GE – 13 G – 13 GE mit allen einschlägigen satisfait à l'ensemble fulfiles all relevant voldoet aan alle Bestimmungen der de la directive machines...
  • Page 29 Trevor Thorp Area Sales Manager North m: 07808 644007 Richard Wilkins Area Sales Manager South m: 07808 206496 Distributed in UK by Kersten (UK) Ltd Tel. 0118 986 9253 Progrees House 39 Boulton Road Reading, RG2 0NH www.kerstenuk.com - info@kerstenuk.com...
