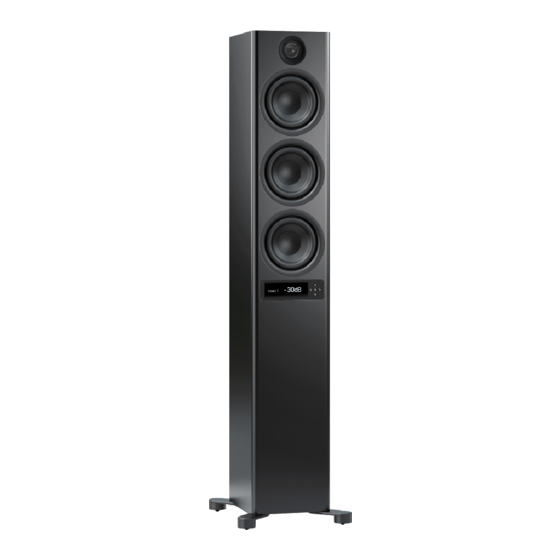

nuPro X-6000 RC and X-8000 RC floorstanding speakers in stereo set-ups
QUICK START
GUIDE
You can find the most recent version of the operating manual here: www.nubert.de/downloads/61/
1
Setup and mounting of the out-rigger feet
Caution! Be careful not to scratch the loudspeaker! Don't let any
!
items fall into the bass reflex ports!
Place the speaker upside down on a soft, non-scratching surface!
Place the out-rigger feet over the threaded bushings as shown in the
mini-spike
1x hex key
4x hex
socket screws
2x Out-rigger feet
nuPro X-6000 RC
2
Cable connections
Please connect all sources and the optional sub-
woofer to one of the two speakers of the stereo
pair.
Analogue XLR connection: Here, as an exception, each loudspeaker
is supplied with the corresponding signal separately.
At the digital Port input, you can plug in the supplied HDMI/ARC
adapter, enabling the direct connection of a TV.
Each nuPro loudspeaker is connected to the power grid using
the supplied power-cable.
Press the power switch on the back to turn on the speaker! If neces-
sary, press the power-button on the remote control to "wake up" the
speaker.
nuPro X-6000/8000 RC · Quick Start Guide E12 · 11/2020
picture and mount the feet securely with the supplied bolts and hex
key. You can now turn the loudspeaker around, place it on its feet
and adjust the mini-spikes for a level, stable stand.
mini-spike
1x hex key
4x hex
socket screws
2x Out-rigger feet
Rückseite
nuPro X-8000 RC
1
Rückseite
®
E12
