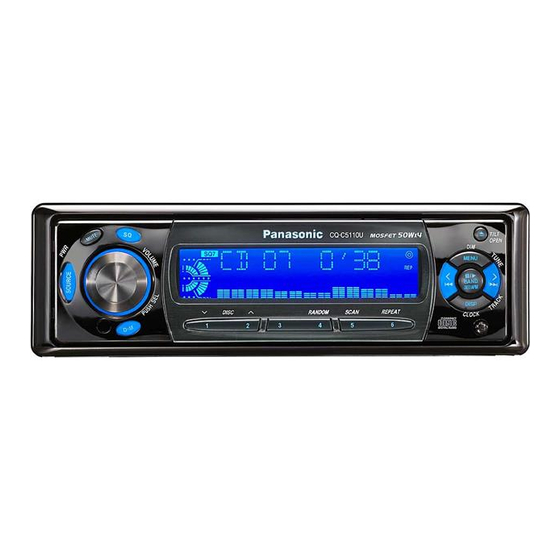

Removable Full Front MP3 WMA CD Player/Receiver with CD Changer Control
Removable Full Front CD Player/Receiver with CD Changer Control
(CQ-C5410U)
≥ Please read these instructions carefully before using this product and save this manual for future use.
≥ Prière de lire ces instructions attentivement avant d'utiliser Ie produit et garder ce manuel pour l'utilisation ultérieure.
≥ Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.
CQ-C5410/C5310U
CQ-C5210/C5110U
Operating Instructions
Operating Instructions
Manuel d'instructions
Manuel d'instructions
Manual de instrucciones
Manual de instrucciones
Advertisement
Table of Contents
Related Manuals for Panasonic CQ-C5110U
Summary of Contents for Panasonic CQ-C5110U
- Page 1 Removable Full Front MP3 WMA CD Player/Receiver with CD Changer Control CQ-C5410/C5310U Removable Full Front CD Player/Receiver with CD Changer Control CQ-C5210/C5110U (CQ-C5410U) Operating Instructions Operating Instructions Manuel d’instructions Manuel d’instructions Manual de instrucciones Manual de instrucciones ≥ Please read these instructions carefully before using this product and save this manual for future use. ≥...
-
Page 2: Safety Information
≥ Mounting collar 1 and trim plate 7 are mounted on the main unit at shipment (page 50). Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical engineering, manufactured with carefully selected components and assembled by people who take pride in their work. -
Page 3: Features
This can only be controlled through the Indicates features applicable to main unit. CQ-C5410U CQ-C5410U only. This can only be controlled through the CQ-C5310U CQ-C5310U only. remote control unit. CQ-C5210U CQ-C5210U only. CQ-C5110U CQ-C5110U only. CQ-C5410/5310/5210/5110U CQ-C5110U None None None None 2.5 V... -
Page 4: Preparation
A as indicated. Install the battery on the battery holder. Insert the battery holder back into its original position. Battery Notes ≥ Battery type: Panasonic lithium battery (CR2025) (included) ≥ Battery life: Approximately 6 months under normal use (at room temperature) Caution: ≥... -
Page 5: Table Of Contents
Contents Safety Information ... Page 2 Precautions... 2 Accessories ...3 Features ...8 Before Reading these Instructions ...9 Preparation ... 10 Remote control unit, subwoofer Clock Setting ... 11 General ... 22 Power, source, volume, mute/attenuation, rear speakers as Sub-Woofers (Super WELCOME Bass Control Subwoofer/SBC-SW), open/close the front panel, panel angle (tilt), dimmer, SQ (Sound Quality) -
Page 6: General
Car Audio CQ-C5410U Rear Speakers as Sub-Woofers (Super Bass Control Subwoofer/SBC-SW) You can utilize the rear speaker connected to the CQ-C5110U built-in amplifi er as Sub-Woofers that output only bass. Radio (page 26) Press and hold [MUTE] (SBC-SW) for more than 2 seconds. - Page 7 General (continued) [SQ] (Sound Quality) indicator SQ preset buttons [1] to [6] Open the Front Panel Panel Angle (Tilt) Press [<: eject] (OPEN). Press and hold [<: eject] (TILT) until you hear a beep (about 1 second) from the speaker output, and Note: “TILT”...
-
Page 8: Radio
Radio (Stereo) indicator [SOURCE] [D·M] (Direct Memory) Preset buttons [1] to [6] (Preset station) Display Change Radio Mode Press [DISP] (display). Press [SOURCE] to select the radio mode. Radio mode display Band Frequency Band Press [BAND]. Tuning [$]: Higher frequency [%]: Lower frequency Press and hold [%] or [$] for more than 0.5 seconds, then release. -
Page 9: Before Disc Playback
≥ If no operation takes place within 20 seconds or so after the panel has opened, the panel will close automatically. CQ-C5410/5310/5210/5110U CD Player CQ-C5210U/CQ-C5110U cannot play MP3/WMA fi les. Do not watch the scroll display while driving. [<: eject] (OPEN) -
Page 10: Mp3/Wma Player
≥ Press [3] (SCROLL) to have an another circle scroll while a title is displayed. If the number of displayed characters is 8 or less, the characters do not scroll. CQ-C5410/5310/5210/5110U CQ-C5210U/CQ-C5110U cannot play MP3/WMA fi les. CQ-C5310U [:]/[9] (6/5) indicator (File/fast forward/fast reverse) -
Page 11: Mp3/Wma
Corporation in the United damage your hearing. States and/or other countries. CQ-C5410/5310/5210/5110U CQ-C5210U/CQ-C5110U cannot play MP3/WMA fi les. CQ-C5410U CQ-C5310U Recording MP3/WMA Files on a CD-Media MP3 (ID3 tag) ≥ You are recommended to minimize the chances ≥... -
Page 12: Cd Changer Control
["] [#] (DISC) [4] (RANDOM) [5] (SCAN) [6] (REPEAT) [DISP] (Display) (Disc selection) Display Change CD changer functions are designed for optional Panasonic CD changer unit. Press [DISP] (display). ≥ Connect the CD changer, and load a magazine (CDs). Note: ≥... -
Page 13: Audio Settings
Audio Settings Volume Default:18 Setting range: 0 to 40 Bass/Treble You can adjust the bass and treble sound. Default: BAS (bass) 0 dB TRE (treble) 0 dB Setting range: j12 dB to i12 dB (by 2 dB) SQ Adjustment You can adjust the characteristics of the currently selected sound type (SQ). - Page 14 Audio Settings (continued) Balance/Fader You can adjust the sound balance among the front, rear, right and left speakers. Default: BAL (balance) CNT (center) FAD (fader) CNT (center) Setting range: 15 levels each Subwoofer Level You can change the subwoofer volume level. Default: 0 dB Setting range: MUTE (subwoofer mute), j6 dB to i6 dB (by 2 dB)
-
Page 15: Function Settings
Function Settings (Press and hold [MENU] for more than 2 seconds on the remote control unit.) The only items which can be set using [MENU] on this unit are the Function Settings (Spectrum Analyzer Display Pattern, Mute/Attenuation and Security Function). (Example: Radio mode) Spectrum Analyzer Display Pattern... -
Page 16: Troubleshooting
Eliminate the cause of fuse blow out and replace the fuse with new one. Consult your dealer. Call the store where you purchased The speaker channels the unit, or your nearest Panasonic Servicenter. are reversed between right and left. Set MUTE to OFF. - Page 17 Troubleshooting (continued) CD/MP3/WMA CQ-C5410U CQ-C5310U CQ-C5210U CQ-C5110U Problem Possible cause No playback or disc The disc is inserted upside down. ejected There is a fl aw or foreign objects on the disc. The disc has unplayable formatted data. The unit plays back the ROM track of a mix mode CD.
- Page 18 (The changer automatically switches problem, we recommend that you take it to your to the next disc.) nearest authorized Panasonic Servicenter. The If normal operation is not restored, product should be serviced only by a qualifi ed call the store where you purchased the technician.
-
Page 19: Notes On Discs
Notes on Discs Notes on CD/CD Media Notes on CD-Rs/RWs (CD-R, CD-RW, CD-ROM) ≥ You may have trouble playing back some If you use commercial CDs, they must have CD-R/RW discs recorded on CD recorders either of these labels below. (CD-R/RW drives), either due to their recording characteristics or dirt, fi... -
Page 20: Installation Guide
Before you begin installation, look for the items which are packed with your unit. (5 mm‡k16 mm) ≥ Warranty Card... Fill this out promptly. ≥ Panasonic Servicenter List for Service (5 mm‡) ≥ Installation Hardware... Needed for in-dash Thickness Min. - Page 21 Installation Guide (continued) Battery Lead Identify All Leads If your stereo unit has a yellow lead, you will need The fi rst step in installation is to identify all the to locate the car’s battery lead. Otherwise you may car wires you’ll use when hooking up your sound ignore this procedure.
- Page 22 Installation Guide (continued) Installation Procedures First complete the electrical connections, and then The included mounting collar 1 is designed check them for correctness. (page 56) specifi cally for this unit. Do not use it to attach any other model. Remove the mounting collar 1 and the trim plate 7 from the main unit...
-
Page 23: Electrical Connections
Fuse (mini auto fuse type, 15 A) ≥ If the fuse (rear panel) blows frequently, they may be something wrong with the unit or wiring connection. CQ-C5310U Consult your nearest Panasonic Servicenter for service. 6 Power connector Front speaker lead (White/black stripe) - Page 24 Electrical Connections Upgrading the System 1 Example combination ≥ CD changer (CX-DP880U, option) R (red) CD changer input cord CD.C-IN L (white) DIN cord Example: CQ-C5410U CD changer control connector Upgrading the System 2 Example combination ≥ CD changer (CX-DP880U, option) ≥...
-
Page 25: Specifi Cations
