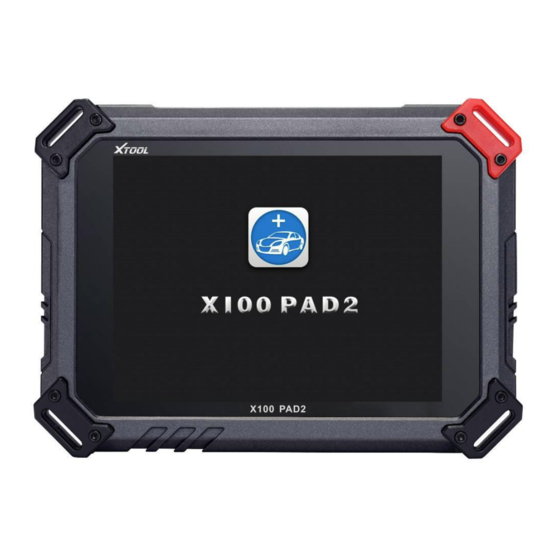

X100 PAD2
Auto Key Programmer
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X100 PAD2 and is the answer not in the manual?

Questions and answers

Related Manuals for Xtool X100 PAD2

Summary of Contents for Xtool X100 PAD2

  • Page 1 X100 PAD2 Auto Key Programmer User Manual...
  • Page 2 X100 PAD2 Diagnosis System Declaration 1. This manual is designed for the usage of X100 PAD2, applying to X100 PAD2 smart automotive diagnosis platform. No part of this manual can be reproduced, stored in a retrieval system or transmitted, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the prior written permission of Xtool.
  • Page 3 X100 PAD2 Diagnosis System Xtool X100 PAD2 Diagnosis System Main Unit Maintenance Avoid shaking or dismantling the unit as it may damage the internal components. Do not use hard or sharp objects to touch the LCD screen; do not use excessive force;...

  • Page 4: Table Of Contents

    3. X100 PAD2 Technical Parameters ................2 CHAPTERⅡ How to Use X100 PAD2 ................3 1. X100 PAD2 Activation ....................3 2. X100 PAD2 Main Interface and Functional Buttons Descriptions ......3 2.1. Main Interface ......................3 2.2. Sub-menu and Functional Buttons ............... 5 2.3.

  • Page 5: Chapterⅰ About X100 Pad2

    X100 PAD2 Diagnosis System CHAPTER Ⅰ About X100 PAD2 1. Appearance 1.1. Front View 1.2. Back View...

  • Page 6: Layout Of X100 Pad2 Tablet

    X100 PAD2 Diagnosis System 2. Layout of X100 PAD2 Tablet 2.1. Top View of X100 PAD2 Tablet ① ② ③ ④ ① Charging port: Battery charging ② DB15 Port: Supports wired connection with car by the cable ③ USB Type C Port: Connect with PC for data transmission ④...

  • Page 7: Chapterⅱ How To Use X100 Pad2

    CHAPTER Ⅱ How to Use the X100 PAD2 . X100 PAD2 Activation 1.1. Please activate X100 PAD2 before you use it to test vehicles. And please connect WiFi first. 1.2. Input activation code (on the manual cover), product serial number (each device will have a serial number and activation code), nickname (workshop’s name or user’s...
  • Page 8 X100 PAD2 Diagnosis System...

  • Page 9: Sub-Menu And Functional Buttons

    Online Communication Platform for X100 PAD2 users. (English version is coming soon) Click UPDATE after X100 PAD2 is connected to internet, then you can download the latest diagnostic software directly to X100 PAD2. Users can view all the diagnostic reports and diagnostic data generated in the diagnosis process.

  • Page 10: Vehicle Connection Diagnosis

    3.2.4. If users can not find the tested vehicle model or electronic control system in the X100 PAD2 test menu, they may need to update the software or consult Xtool technical service department.

  • Page 11: Special Function And Diagnosis

    4.Special function and Diagnosis 4.1. Menu Options 4.1.1. After the X100 PAD2 mainframe is connected to the vehicle via main test cable, Immobilization can be performed. The Immobilization interface is shown as below: 4.1.2. X100 PAD2 lists mileage adjustment separately. The Odometer Adjustment...
  • Page 12 Europe will enter the European cars menu, selection for Asia will enter the Asian cars menu, selection for America will enter the American cars menu. 4.1.4. Besides the usual system diagnostic functions, XTOOL also has developed a series of special diagnostic functions for certain vehicles as follows:...

  • Page 13: Test Functions

    X100 PAD2 Diagnosis System 4.2. Test Functions: it can read and clear faults codes for all systems of vehicles. 4.2.1. Using VW as an example, select Common Diagnosis, then select EUROPE. Choose the VW word. If the word is not showing on the screen, please swipe up or down to display it.

  • Page 14: Read Ecu

    X100 PAD2 Diagnosis System of the problem and any other relevant information and send the form to the Xtool engineering department. 4.3. Read ECU This function is used to read ECU version information, which is the equivalent of “System Identification” or “System Information” in some electronic control systems.

  • Page 15: Read Dtcs

    X100 PAD2 Diagnosis System 4.4. Read DTCs Select Read Fault Codes to read the trouble codes stored in the ECU. The screen will show the trouble codes and their definition, shown below: Tip: In the process of diagnosis, if the device shows “System is OK” or “No Trouble Code”, it indicates that the ECU has not detected a fault in any of the circuits that it...

  • Page 16: Settings

    X100 PAD2 Diagnosis System 4.5.2. Click YES to confirm the operation, if the communication is normal, it will show “Trouble Codes Successfully Cleared” or “Trouble Codes Cleared”. Generally, users will need to re-read trouble codes after clearing them to confirm that the trouble codes have been cleared.

  • Page 17: Xcloud

    7. Update X100 PAD2 updates directly via the Internet using WiFi or wired connection. To access the update application open the X100 PAD2 application and click UPDATE , shown below. 8. Report...
  • Page 18 X100 PAD2 Diagnosis System 8.1. PDF Files: 8.1.1. PDF files are the diagnostic reports of Live Data or Trouble Codes that have been saved during diagnosis. Entering PDF will allow you to view and print these reports. 8.1.2 Click PDF icon to generate PDF when you want to save the trouble code report 8.2.

  • Page 19: Remote

    If users encounter problems and are not able to solve them, they can open this application and ask for remote assistance. How to get remote assistance from Xtool Technical Assistance Center: a. Open X100 PAD2 b. Click Remote and open the Team Viewer interface. Generate and display device ID.

  • Page 20: Chapterⅲ How To Use Kc100

    Please find operation steps as below: 1. Please use main cable and OBDII connector (or other relative connector) to connect between X100 PAD2 and your car’s OBD port. 2. Please use TYPE-C to mini USB cable to connect between X100 PAD2 and KC100.
  • Page 21 X100 PAD2 Diagnosis System 3. Please switch ignition on position, then enter software as following steps: Immobilization - VW - 4 Immobilizer System...
  • Page 22 X100 PAD2 Diagnosis System 4. If your car is 4 immobilizer system, please click 4 immobilizer system. If your car is 5 immobilizer system, please click 5 immobilizer system. It will detect your meter type automatically, if it does not detect successfully, you can choose your meter type manually.

  • Page 23: Chapter Ⅳ Location Of Diagnostic Link Connectors On Different Vehicle Models

    X100 PAD2 Diagnosis System CHAPTER Ⅳ Location of Diagnostic Link Connectors on Different Vehicle Models 1. Diagnostic Link Connectors Locations of Various Vehicle Models *AUDI A6: the OBD plug is on the lower left side of the dashboard, use SMART OBDII-16 connector.
  • Page 24 X100 PAD2 Diagnosis System *Benz C180: the OBD plug is on the left hand side of the engine bay, use Benz-38 connector. *Benz 300SEL 140 chassis: the OBD plug is on the left hand side of the engine bay, use Benz-38 connector.
  • Page 25 X100 PAD2 Diagnosis System *VW POLO: the OBD plug is below the dashboard, use SMART OBDII-16 connector. *BMW 735I: the OBD plug is in the right hands side of the engine bay, use BMW-20 connector. *VW Passat B5: the OBD plug is behind the gearlever and beside the parking brake...

  • Page 26: Location Diagram Of Vehicle Diagnostic Link Connectors

    X100 PAD2 Diagnosis System 2. Location Diagram of Vehicle Diagnostic Link Connectors Location diagram of pick-up truck diagnostic link connectors: Location diagram of utility vehicles diagnostic link connectors: Link diagram of small car diagnostic link connectors: NOTE: Each vehicle manufacturer may use additional pins to diagnose a variety of systems.
  • Page 27 X100 PAD2 Diagnosis System 6. ISO 15765-4 defined CAN high 7. ISO9141 and ISO14230 defined K line 8. Manufacturer definition 9. Manufacturer definition 10. SAE J1850 bus negative 11. Manufacturer definition 12. Manufacturer definition 13. ISO 15765-4 defined CAN low 14.
  • Page 28 Shenzhen Xtooltech Co., Ltd Company address: 2nd Floor, Building No.2, Block 1, Excellence City, No.128, Zhongkang Road, Shangmeilin, Futian District, Shenzhen, China Factory address: 2/F, Building 12, Tangtou Third Industrial Zone, Shiyan Street, Baoan District, Shenzhen, China Service Hotline: 400-880-3086/ 0755-21670995 Email: marketing@xtooltech.com Fax: 0755-83461644 Website: www.xtooltech.com...
