  • Page 1 X-Series Service Tool User Manual...
  • Page 3 Shenzhen Xtooltech Co., Ltd. In countries that the trademarks, service marks, domain names, logos and the name of the company are not registered, Xtool claims that it still reserves the ownership of the unregistered trademarks, service marks, domain names, logos and the company name.
  • Page 4 X-Series Service Tool After sale： After-Sale Service Hotline(0086-755-21670995/86267858) Email: aftersales-services@xtooltech.com Official website:http://www.xtooltech.com Safety：  This product is intended for automotive technicians only.  When the engine is running, please keep the maintenance area well ventilated, properly connect the engine and the building's exhaust system.

  • Page 5: Table Of Contents

    X-Series Service Tool Contents CHAPTER I ABOUT MAINFRAME ............4 .................4 1.1 P RODUCT OVERVIEW ..................5 1.2 A PPEARANCE ..........6 1.3 T ECHNICAL PARAMETERS OF EQUIPMENT CHAPTER II HOW TO USE ............7 .........7 2.1 F UNCTIONAL ELECTION OF .................9 2.2 S...

  • Page 6: Chapter I About Mainframe

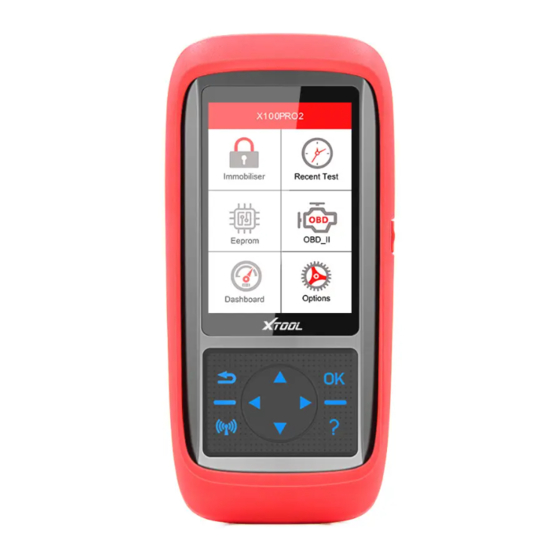

    X-Series Service Tool Chapter I About Mainframe 1.1 Product overview X300P and X100Pro2 are service tools for special functions of automobiles produced by Shenzhen Xtooltech CO., LTD . X300P includes maintenance reset, EPB replacement, OBD II, tooth learning, BMS battery replacement, TPS throttle relearn, tire pressure reset, electronic steering matching, ABS bleeding function and so on.

  • Page 7: Appearance

    X-Series Service Tool 1.2 Appearance ① LCD display Display product function menu ② Return Cancel the selection or return to the previous menu ③ Direction key Up/Down: Move the menu up/down in menu mode; Left/Right: You can view information on the front/next screen.

  • Page 8: Technical Parameters Of Equipment

    X-Series Service Tool ⑤ DB15 connector Connect X300P/X100Pro2 to OBD II Port of vehicle ⑥ assist Providing assist information ⑦ OK Confirm selection ⑧ USB interface Connect X300P/X100Pro2 to computer for software updates ⑨ Reserved key 1.3 Technical parameters of equipment Monitor：...

  • Page 9: Chapter Ii How To Use

    X-Series Service Tool Chapter II How to Use 2.1 Functional Selection of Home Page Use the up/down key and left/right key to switch, select the corresponding function and click OK to enter. (X300P)
  • Page 10 X-Series Service Tool (X100Pro2)

  • Page 11: Special Functions

    X-Series Service Tool 2.2 Services Select services, you can select special functions by pressing up/down key, press OK key to enter. (X300P) For X100Pro2, you can directly enter Immobiliser, dashboard, eeprom or OBDII menu directly from the home page.

  • Page 12: System Settings

    X-Series Service Tool 2.3 System Settings Select options to enter, you can choose WIFI settings, language settings, unit settings, software upgrades by up/down keys.
  • Page 13 X-Series Service Tool 2.3.1 WIFI settings Enter the WIFI settings, click OK to open the WIFI switch, connect the WIFI, click OK to enter the password, and then press the trigger button to connect, as shown below.
  • Page 14 X-Series Service Tool 2.3.2 Language settings The operating system of this device supports multi-language switching: English, Spanish, French, Portuguese, German, Russian, Polish and Italian. Select the language you need by pressing the up/down button and switch by pressing the OK...
  • Page 15 X-Series Service Tool 2.3.3 Unit settings According to the demand, select Metric or British system by up/down key and switch by OK key, as shown below.
  • Page 16 X-Series Service Tool 2.3.4 Tip sound settings According to the requirement, select whether to open the button prompt tone by up/down key, and switch by OK key, as shown below.
  • Page 17 X-Series Service Tool 2.3.5 About On the page, you can view the current software version and hardware version number.

  • Page 18: Chapter Iii Software Upgrading

    X-Series Service Tool Chapter III Software Upgrading 3.1 WIFI One-click Upgrade The product supports one-click upgrade through WIFI upgrade. The upgrade module can be selected by up/down keys or all modules can be upgraded by one- click, and can be returned by pressing the return key.
  • Page 19 X-Series Service Tool...

  • Page 20: Usb Data Wire Upgrade

    The upgrade method is as follows. 1. Log on the Xtool official website: www.xtooltech.com, Select ’Download Upgrade Tool’ on the page of ‘Service&Support’ , and install the upgrade tool. 2. Open the upgrade software, enter the product serial number and activation code to log in the software.
  • Page 22 Shenzhen Xtooltech Co., Ltd Company address: 2nd Floor, Building No.2, Block 1, Excellence City, No.128, Zhongkang Road, Shangmeilin, Futian District, Shenzhen, China Factory address: 2/F, Building 12, Tangtou Third Industrial Zone, Shiyan Street, Baoan District, Shenzhen, China Service Hotline: 0086-755-21670995/86267858 Email: aftersales-services@xtooltech.com Fax: 0086-755-83461644 Website: www.xtooltech.com...
