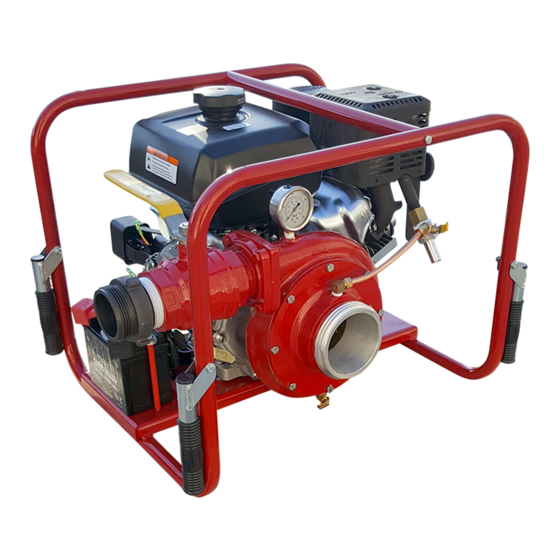

PFP-14hpKHL-EM-MR
Congratulation, you have just purchased a C.E.T. portable pump. If you follow the procedures in this
operation manual, it will give you years of use without any problems.
ENGINE SPECIFICATIONS
• CH440 Kohler air cooled engine
• Single cylinder, 4-stroke gasoline engine
• 12V electric start with recoil start as backup
• 1.8 gallon (7 l) integrated fuel tank
• 10 amp. charging system
PUMP UNIT SPECIFICATIONS
• C.E.T. single stage centrifugal pump, direct drive.
• Pump body made from resistant aluminum alloy.
• Bronze impeller.
• Mechanical shaft seal.
• Exhaust priming system, guaranteed up to 20' (6 meter) lift.
• One 1 1/2'' (38 mm) delivery outlet with 1/4-turn ball valve
• One 2 1/2'' (64 mm) suction inlet
• Dimensions: Length: 21 3/4'' (552 mm); Width: 26 1/2'' (673 mm); Height: 20 1/4'' (514 mm)
• Wet weight: 162 lbs (74 kg)
CONTROL PANEL
• Engine ignition switch
• Throttle control vernier
• Operating panel light
• Pilot lights
• Inlet and outlet pressure gauges
• Priming valve
• Engine stop knob
INCLUDED ACCESSORIES
• Pressure gauge
• Swivel spotlight
• 12V-Battery
• Low oil shut-off
PERFORMANCE
MAX FLOW: 240 GPM (908 LPM)
MAX PRESSURE: 130 PSI (9 BAR)
215 GPM (814 LPM) @ 25 PSI (1.7 BAR)
170 GPM (643 LPM) @ 50 PSI (3.4 BAR)
105 GPM (397 LPM) @ 100 PSI (6.9 BAR)
Your pump comes with a full year warranty on all mechanical components.
ACCEPT ONLY THE BEST
75 Hector St., P.O. Box 90, Pierreville (Québec) Canada J0G 1J0
A C E N T U R Y O F E N G I N E E R I N G F O R T H E B R AV E S T
INSTRUCTIONS MANUAL
Telephone: 1-800-567-2719
Fax: 1-800-434-2613
www.fire-pump.com
