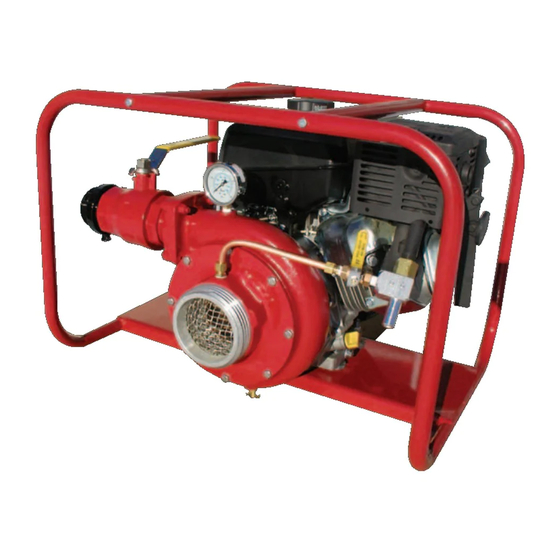

CET PFP-14hpKHL-1D Instruction Manual

PFP-14hpKHL-1D
Congratulation, you have just purchased a C.E.T. portable pump. If you follow the procedures in this
operation manual, it will give you years of use without any problems.
ENGINE SPECIFIC TIONS
• Kohler 14hp at 3600 RPM, air cooled engine.
• Single cylinder gasoline engine.
• Manual recoil start.
• 2 gallon (7.3 l) integrated fuel tank.
PUMP UNIT SPECIFIC TIONS
• C.E.T. single stage centrifugal pump, direct drive.
• Pump body made from resistant aluminum alloy.
• Bronze impeller.
• Mechanical shaft seal.
• Exhaust priming system, guaranteed up to 20' (6 meter) lift.
• One 2 1/2" (65 mm) NST delivery outlet with 1/4-turn ball valve.
• One 4" (100 mm) NST suction inlet.
• Dimensions : Length : 27" (685 mm); Width : 20.5" (520 mm); Height : 19.5" (495mm).
• Weight : 136 lbs (61.5 kg).
INCLUDED CCESSORIES
• Pressure gauge.
• Full roll cage.
• 2 years warranty
PERFORM NCE
450 GPM (1701 LPM) @ 5 PSI (0.3 bar)
350 GPM (1323 LPM) @ 10 PSI (0.7 bar)
300 GPM (1134 LPM) @ 25 PSI (1.7 bar)
200 GPM (756 LPM) @ 50 PSI (3.5 bar)
90 GPM (340 LPM) @ 75 PSI (5.2 bar)
Your pump comes with a full year warranty on all mechanical components.
ACCEPT ONLY THE BEST 75 Hector St., P.O. Box 90, Pierreville (Québec) Canada J0G 1J0
A C E N T U R Y O F E N G I N E E R I N G F O R T H E B R AV E S T
INSTRUCTIONS M NU L
Telephone: 1-800-567-2719 Fax: 1-800-434-2613 www.fire-pump.com
