Itamar Medical WatchPAT ONE Instruction Manual

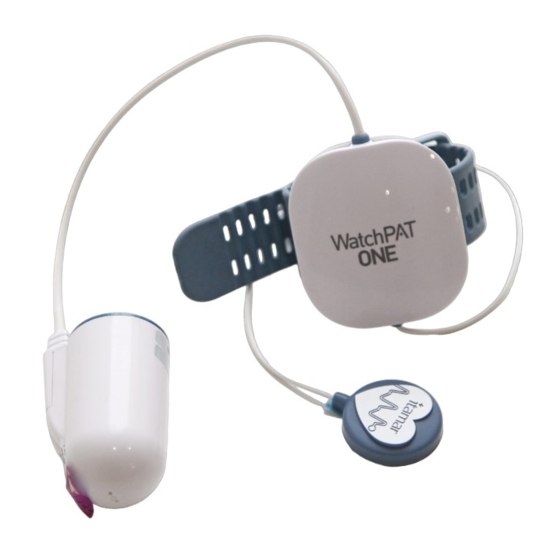

WatchPAT ONE
®
Disposable Home Sleep Apnea Test
Step by Step Instructions Guide
This guide will take you step by step and show you how to
correctly use the WatchPAT ONE Home Sleep Apnea Test.
®
Before applying WatchPAT ONE:
®
It is recommended to apply the WatchPAT
your non-dominant hand.
Probe can be worn on any finger, except the thumb.
Before use, remove tight clothes, rings, watches and
other jewelry.
Remove nail polish and artificial nails from the test finger
and make sure the fingernail is cut short.
Note: Use only Alkaline AAA battery.
Do not insert the battery until you are ready to go to bed.
1. Before you proceed with your sleep study make sure you
have internet access, your phone, WatchPAT
and PIN number.
Phone
WatchPAT® ONE Internet Access
2. Download the WatchPAT ONE application to your mobile
®
device (available on Apple App Store
and Google Play Store).
3. Open the WatchPAT ONE application and allow all
®
permissions required by the application. These
permissions are necessary for the application to operate.
Take out the WatchPAT ONE from the box. You can click
®
the "Preview" button on the application to have a quick tour,
showing how to set up the device.
Press "Ready" button when done.
4. Insert the battery into
the WatchPAT
device.
ONE device to
®
Press "Next" when done.
5. Remove your watch and
jewelry from your test hand.
Press "Next" when done.
ONE device,
®
6. Enter the 4-digit PIN code
provided by your physician's office
or provider, and press "Enter".
PIN Number
7. Put the WatchPAT
on your non-dominant hand.
Ensure it is not too tight
and not too loose.
Press "Next" when done.
8. Take the chest sensor (snoring and body position sensor)
and direct the cable in through your sleeve
and out through the neck opening.
Remove the tab from the sticker and
attach the sensor just below your
sternal notch.
PREVIEW
Press "Next" when done.
* If your WatchPAT
READY
include the chest sensor, skip this step.
ONE
®
1
2
NEXT
NEXT
ENTER PIN
Enter your assigned four digit PIN
(personal identification number) and tap ENTER
ENTER
ONE device
®
NEXT
® ONE device does not
NEXT
9. Place the probe all the way onto a finger of your
non-dominant hand. You may use any finger except
the thumb. The probe should be inserted
so the sticker marked TOP is positioned
above the fingernail. Hold the probe
against a hard surface and slowly
pull the TOP tab towards you to
remove it from the probe.
Press "Next" when done.
10. You are all set.
Last few steps before you begin your sleep study:
a. Make sure your phone is located no more than
15 feet/5 meters from the WatchPAT
b. Turn off all other transmitting devices in the room,
such as other smart phones, smart watches and
headphones, as they could interfere with the test.
c. Connect your phone to the charger, it must remain
plugged in throughout the night. If you need to get up
during the night leave the phone plugged in, no need
to carry it with you.
Now click the "Start" button to begin your sleep study.
11. In the morning when you wake up, press the
"End Recording" button, and wait a few minutes for
the device to complete the data transmission. After
completing the data transmission you will receive
a thank you message.
Once received press "Close Application".
12. Remove the chest sensor, probe and WatchPAT
device. There is no need to keep the device or return it.
You can simply dispose of it.
NEXT
ONE device.
®
START
END RECORDING
CLOSE APPLICATION
ONE
®
