Summary of Contents for Pipishell PITUC1
- Page 1 Rolling Utility/Shopping Cart V1.0 PITUC1...
- Page 2 Supplies Parts List Axle Cotter Pin Washer Spring 1 PC 4 PCS 6 PCS 2 PCS Hub Cap Back Wheel Adjustable Handle Shopping Cart 1 PC 1 PC 2 PCS 2 PCS Tools Needed for Assembly (Not Included) Pliers Hammer Specification Parameter Color: Black Material: Iron tube...

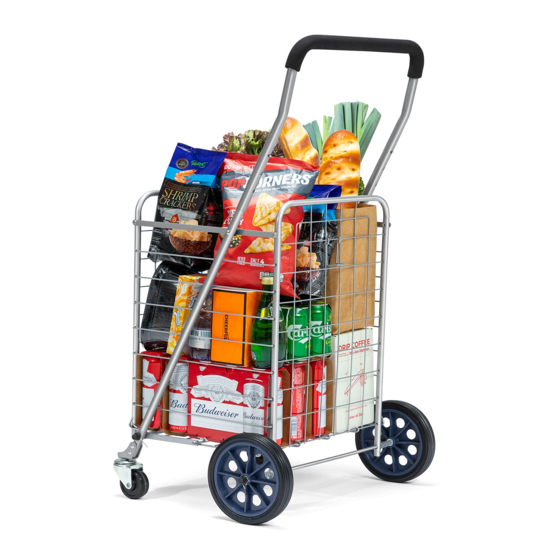

- Page 3 Introduction Pipishell PITUC1 Rolling Utility/Shopping Cart The handle can be adjusted from 38.5" to 41.5" to meet right height 2.5" rubber front wheels provide a sturdy and easy 360 degree rotation 7" rubber rear wheels let you handle any condition with ease Assembly time: Less than 30 minutes This products intended use is for carting groceries, sporting equipment, laundry items, etc.
- Page 4 Step 4 Step 3 ×2 ×2 Attach the back wheels by placing a washer Center the axle and place two cotter pins (B) (C), a spring (D), then another washer (C) in the two holes on the inside of the back onto one end of the axle.
- Page 5 Step 6 Step 5 Using hammer (not provided) press the hub cap (E) onto end of axle. Repeat step 4 to 6 for the other side. ×2 Insert another cotter pin (B). Using pliers (not provided) bend cotter pin (B) to lock the wheel into place on axle.
- Page 6 Adjustable Height- The handle of this Assembly is complete. Enjoy using your " shopping cart can be adjusted from 38.5 Pipishell rolling shopping cart. " 41.5 , which fits your different situational needs. There are three gears that you can...
