Summary of Contents for Pipishell PITSC1

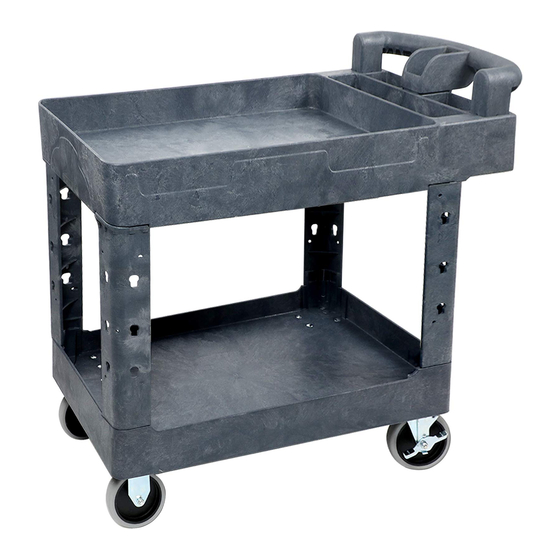

- Page 1 Service Cart V1.0 PITSC1 WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
General Safety Rules......................2 Expanded View........................3 Part List..........................3 Assembly..........................4-5 Warranty..........................5 TECHNICAL DATA Property Specification Model: PITSC1 Loading Capacity: 500Ibs Shelves(qty): 2 rigid casters and 2 swivel casters Product Dimension: L41.3" x W16.7" x H34.6" (Handle Height) Tray Size: L30.7" x W16.3" x H2.6"... -
Page 3: General Safety Rules
GENERAL SAFETY RULES Safety is a combination of common sense, staying alert and knowing how your items works. SAVE THESE SAFETY INSTRUCTIONS. WARNING: To avoid mistakes and serious injury, do not use your item until the following steps have been read and understood. These safety instructions cannot address every possible scenario you may encounter, so please use common sense and caution when using the item. -
Page 4: Expanded View
EXPANDED VIEW PARTS LIST Part Number Part Description Quantity HANDLE SCREW SCREW PLATFORM SCREW BEAM BASE PLATE CARRIAGE BOLT WASHER BRACKET OF SWIVEL CASTER CASTER AXLE BRACKET OF FIXED CASTER... -
Page 5: Assembly
ASSEMBLY Step 1 Locate the second base plate(7) and turn it upside down. Set the second base plate(7) onto the beams(6). See Figure A. Step 2 Turn the cart upside down. Attach two casters(13) with the swivel caster brackets(11) using a nut(12) and axle(14), if necessary. -
Page 6: Warranty
Thank you for choosing our product! We strive to provide the best quality and services for our customers. Would you kindly share your experience on Amazon if you are satisfied? Should you have any issues, please don't hesitate to contact us. Telephone：800-556-9829 Mon-Fri 10am - 6pm (PST) (USA) (CAN) Email：supportus@pipishell.net (US/CA/DE/UK/FR/IT/ES/JP/AU)
