TVILIGHT SkyLite V3.1 External Installation Manual

Hide thumbs Also See for SkyLite V3.1 External:

Advertisement

Quick Links

Download this manual
English
SkyLite V3.1
External
Installation Manual
PR161926 | Rev. G | 05/10/2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the SkyLite V3.1 External and is the answer not in the manual?

Questions and answers

Related Manuals for TVILIGHT SkyLite V3.1 External

Summary of Contents for TVILIGHT SkyLite V3.1 External

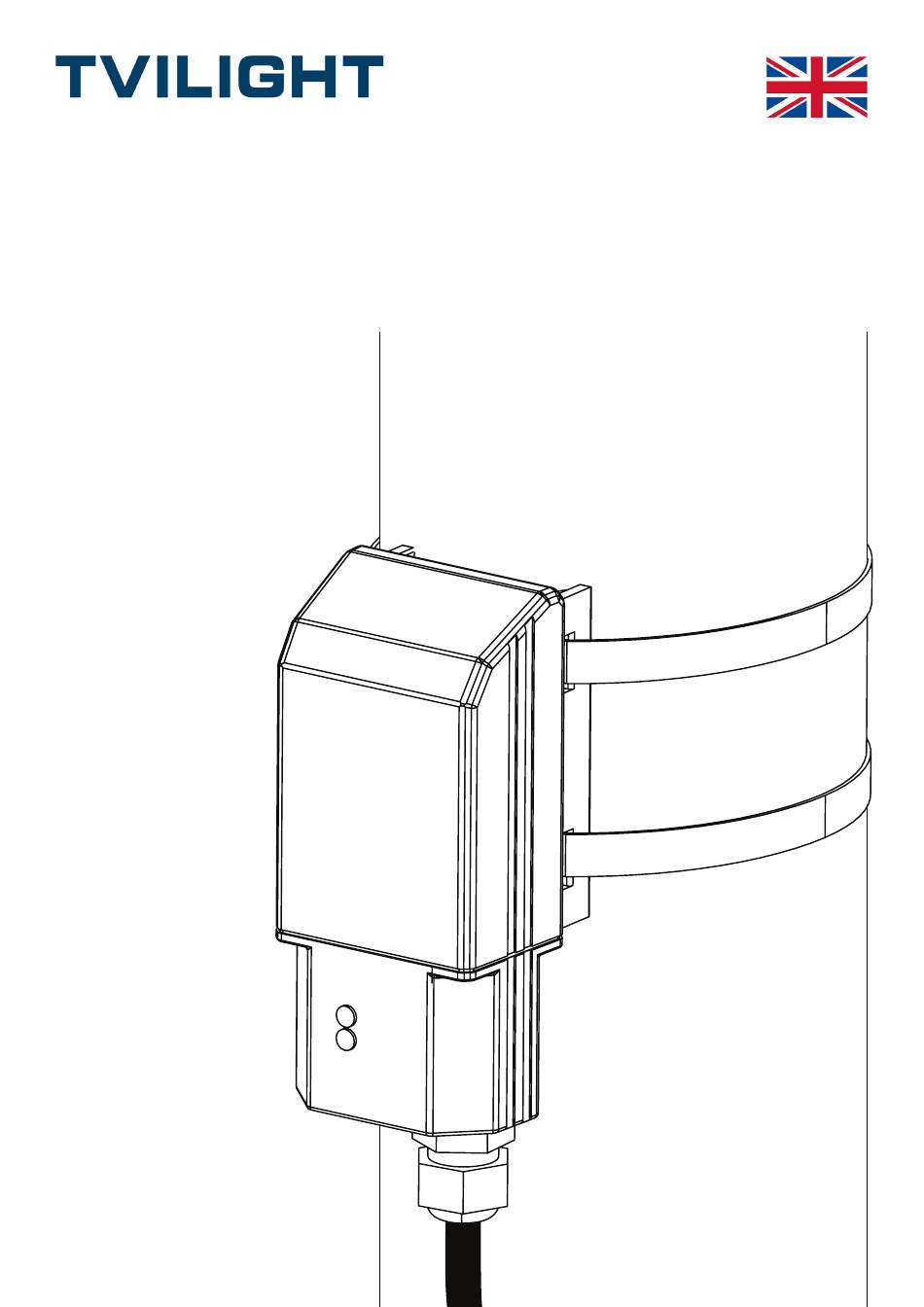

  • Page 1 English SkyLite V3.1 External Installation Manual PR161926 | Rev. G | 05/10/2020...
  • Page 2 If this has not been done, SkyLite v3.1 will not be able to dim the connected luminaire. TVILIGHT PROJECTS BV / Beechavenue 162-180, 1119 PS, Schiphol-Rijk, the Netherlands info@tvilight.com / www.tvilight.com TVILIGHT BV / Westerhaven 13, 9718 AW Groningen, the Netherlands +31 (0)50 800 3240 / info@tvilight.com / www.tvilight.com...
  • Page 3 In box: SkyLite V3.1 Pole ID Label M16 Cable Gland www.tvilight.com TVI-SKLEXT1-01-0014 16 mm Grommet 5.5m Cable You’ll need: Drill Generic Strap x 2 Scan&Go App Available in the Apple App Store Max = 11mm and in the Min = 8mm...
  • Page 4 1. Push Cable Gland/Grommet over the cable and UV Protective Sleeve Note: Leave some UV Sleeve in the Cable Gland/Grommet. 2. Drill hole into the pole: - M16 threaded (Cable Gland) OR - 16 mm (Grommet) Note: For added protection against rust, the use of an anti-corrosion spray such as WD40 Corrosion inhibitor or equal is recommended.
  • Page 5 3. Run wire into hole in the pole Twist the end leads of the wires 4. Insert Cable Gland/Grommet into hole in the pole PR161926 | Rev. G | Page 5 of 10...
  • Page 6 5. Screw Cable Gland OR press Grommet into the pole NOTE: Make sure the UV Protective Sleeve is inside the Cable Gland/Grommet when tightening. 6. Strap product to the pole Tensioning Tool * Ensure Tensioning Tool is set to maximum tension (#4) PR161926 | Rev.
  • Page 7 7. Apply Pole ID Label to the pole Ensure that the Product and Pole ID Labels match. SAME www.tvilight.com www.tvilight.com TVI-SKLEXT1-01-0014 TVI-SKLEXT1-01-0014 PR161926 | Rev. G | Page 7 of 10...
  • Page 8 8. Add device to CityManager 1. Download Tvilight Scan&Go from Apple iOS App Store or from Google Play Store. 2. Login with your Username and Password. 3. Use the ‘Add device’ function in Scan&Go app to add the device to CityManager.

  • Page 9: Wiring Diagram

    Wiring Diagram Connector (e.g. Wago) WARNING: If not correctly connected product might not function or it might be permanently damaged. DC + Junction Box PR161926 | Rev. G | Page 9 of 10...
  • Page 10 Wiring Diagram To Armature WARNING: If not correctly connected product might not function or it might be permanently damaged. TVILIGHT Driver SKYLITE V3.1 0-10V+ 0-10V- 0-10V- 0-10V+ DALI+ DALI- DALI- DALI+ To Mains 0-10V+ 0-10V- DALI+ DALI- GREEN BLUE BROWN...
