SKYLITE V3.1
Internal
Installation Manual
PR161826 | Rev. I | 05/10/2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the SKYLITE V3.1 Internal and is the answer not in the manual?

Questions and answers

Summary of Contents for TVILIGHT SKYLITE V3.1 Internal

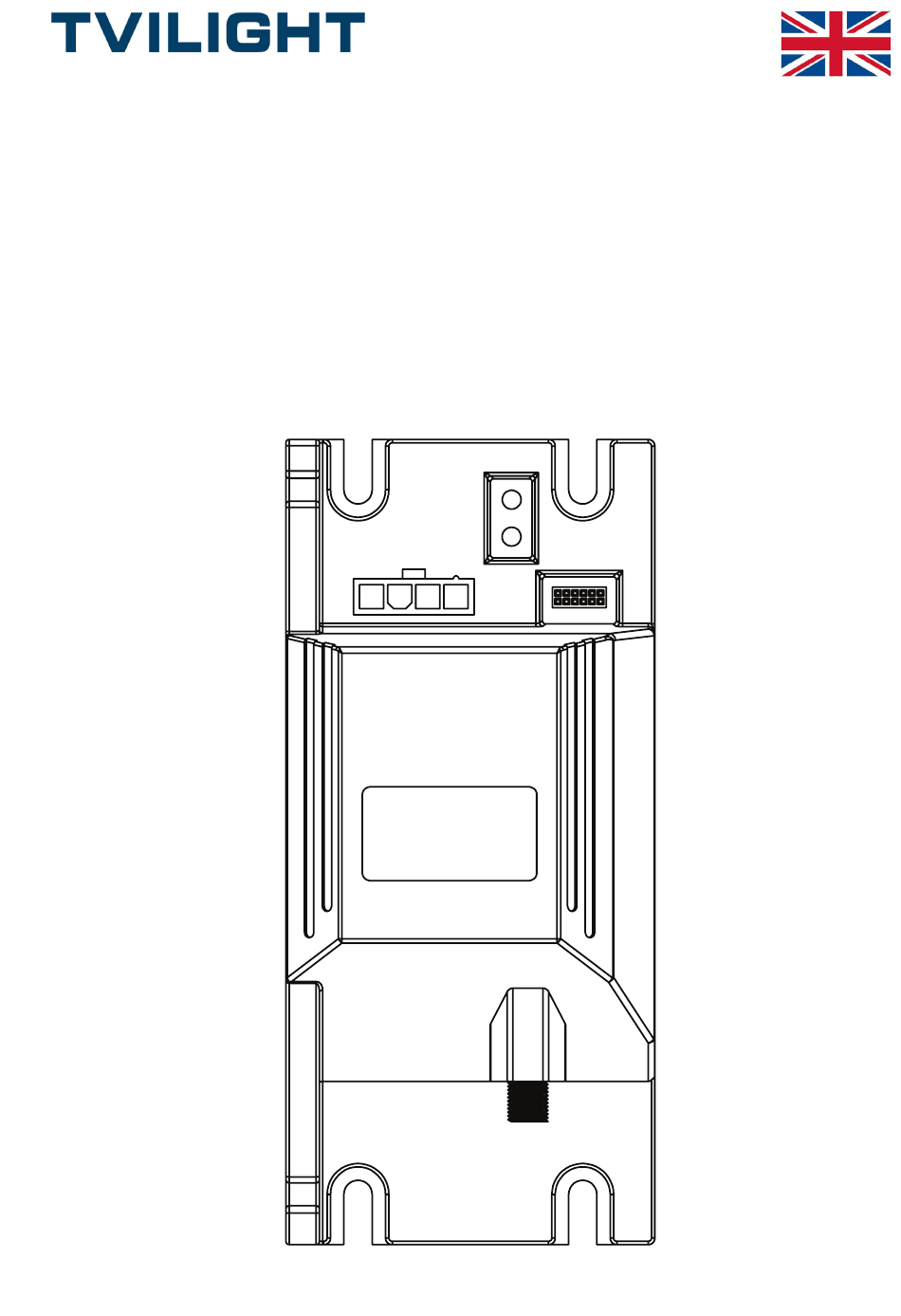

  • Page 1 English SKYLITE V3.1 Internal Installation Manual PR161826 | Rev. I | 05/10/2020...
  • Page 2 If this has not been done, SkyLite V3.1 will not be able to dim the connected luminaire. TVILIGHT PROJECTS BV / Beechavenue 162-180, 1119 PS, Schiphol-Rijk, the Netherlands info@tvilight.com / www.tvilight.com PR161826 | Rev. I | Page 2 of 15...
  • Page 3: Table Of Contents

    INDEX 1. In Box......................page 5 What you will find in the Box. 2. You Will Need..................page 5 Tools you will need for SkyLite v3.1 installation. 3. Factory Installation of SkyLite v3.1 into the Luminaire.....page 6 When installing SkyLite v3.1 in a Luminaire. 4.
  • Page 4: In Box

    In Box SkyLite V3.1 External Antenna Cable Assembly 10.75 33.5 29 cm 50 cm Pole Label DEMO DEMO DEMO DEMO TVI-SKLMP-A031I-A01-002644 You Will Need Drill Screw Driver M3 Screw Scan&Go App 10.5 mm drillbit Available in the Apple App Store and in the Google Play Store PR161826 | Rev.
  • Page 5: Factory Installation Of Skylite V3.1 Into The Luminaire

    Factory Installation of SkyLite v3.1 into the Luminaire 3.1. Open Luminaire 3.2. Access Mounting Plate PR161826 | Rev. I | Page 5 of 15...
  • Page 6 3.3. Drill 10.5 mm hole in top of the Luminaire Note: For added protection against rust, the use of an anti-corrosion spray such as WD40 Corrosion inhibitor or equal is recommended. 3.4. Place Antenna through hole Remove adhesive backing prior to placement. PR161826 | Rev.
  • Page 7 3.5. Tighten Antenna using Antenna Nut Tighten the Antenna nut with a max. torque of 1.5 Nm. 3.6. Place SkyLite V3.1 on Mounting Plate Screw into place. ATTENTION: Observe precautions for the handling of electrostatic sensitive devices. PR161826 | Rev. I | Page 7 of 15...
  • Page 8 3.7. Connect Cable Assembly ATTENTION: Observe precautions for the handling of electrostatic sensitive devices. 3.8. Connect Antenna to SkyLite V3.1 Tighten SMA connector with a torque of 0.8 Nm (finger tight). ATTENTION: Observe precautions for the handling of electrostatic sensitive devices. PR161826 | Rev.
  • Page 9 3.9. Connect SkyLite v3.1 to Driver ATTENTION: Observe precautions for the handling of electrostatic sensitive devices. After connecting SkyLite to Driver there is a risk of electric shock from the antenna connector. Do not touch while powered. Note: Wiring Diagram can be found in Section 5. PR161826 | Rev.
  • Page 10 3.10. Return Mounting Plate to closed position and close Luminaire 3.11. Attach the Pole Label to the Luminaire with a piece of tape Note: This placement of the Pole Label is temporary until field installation of the Luminaire. The label should not be placed loose in the box and should not fall out or under the Luminaire when it is in the box.
  • Page 11 3.12. Put the Luminaire in the box for shipment PR161826 | Rev. I | Page 11 of 15...
  • Page 12: Field Installation Of A Luminaire With Skylite V3.1

    Field Installation of the Luminaire 4.1. You will find the Luminaire with Pole label attached 4.2 Remove the sticker from the Luminaire and install the Luminaire onto the Pole PR161826 | Rev. I | Page 12 of 15...
  • Page 13 4.3. Apply product ID sticker to the pole once the Luminaire is installed SAME STICKER TVILIGHT DEMO DEMO DEMO DEMO www.tvilight.com TVILIGHT www.tvilight.com TVI-SKLMP-A031I-A01-002644 TVI-CSP1-01-0014 TVI-CSP1-01-0014 PR161826 | Rev. I | Page 13 of 15...
  • Page 14 4.4 Add device to CityManager Download Tvilight Scan&Go from Apple iOS App Store or from Google Play Store. Login with your Username and Password. Use the ‘Add device’ function in Scan&Go app to add the device to CityManager. The location of the new device is determined by Scan&Go’s GPS and it will be indicated on the map.
  • Page 15: Wiring Diagram

    5. Wiring Diagram To Armature WARNING: If not correctly connected product might not function or it might be permanently damaged. TVILIGHT Driver SKYLITE V3.1 0-10V+ 0-10V- 0-10V- 0-10V+ DALI+ DALI- DALI- DALI+ To Mains 0-10V+ 0-10V- DALI+ DALI- GREEN BLUE...
