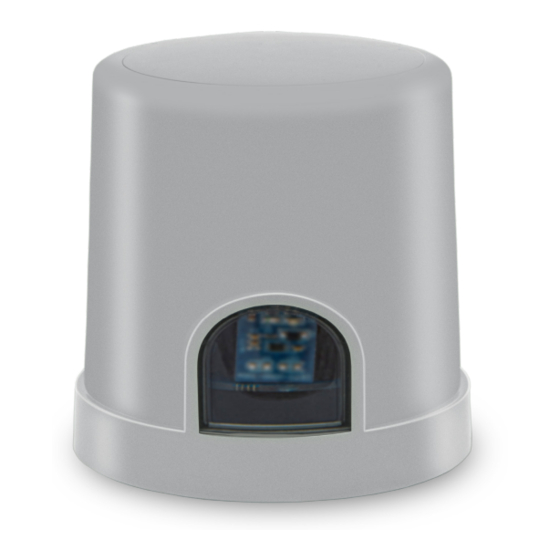

- Page 1 English OPENSKY NEMA IoT Installation Manual PR166201 TVILIGHT PROJECTS BV / Beechavenue 162-180, 1119 PS, Schiphol-Rijk, the Netherlands info@tvilight.com / www.tvilight.com Copyright Tvilight B.V. | PR 00-1662-01 | Rev. C | 13/11/2020...
- Page 2 (i.e. 0-10V or DALI) from the CMS. If this has not been done, OPENSKY NEMA IoT will not be able to dim the connected armature. DALI (logarithmic) dimming mode is recommended. www.tvilight.com PR 00-1662-01 | Rev. C | Page 2 of 9...
- Page 3 2. Please stick the second label on the street pole, preferably inside the junction box. Bar Code needs to be scanned once using Tvilight Scan & Go App (please see the instructions below) www.tvilight.com PR 00-1662-01 | Rev. C | Page 3 of 9...
- Page 4 Register device to CityManager (CMS) • Download Tvilight Scan & Go from Apple iOS App Store & Android PlayStore. • Login with your Username and Password. • Use the ‘Add device’ function in the Scan&Go app to add the device to CityManager.
- Page 5 WARNING TURN THE POWER OFF AT THE CIRCUIT BREAKER BEFORE INSTALLING THE DEVICE Ensure the device is pre-registered in Tvilight CMS at the factory 1. If applicable, twist to release protective cap 2. If applicable, remove protective cap www.tvilight.com PR 00-1662-01 | Rev. C | Page 5 of 9...
- Page 6 Install the device with the transparent window facing the NORTH direction. Adjust the receptacle position if necessary. • Ensure the transparent window on the dome is free of any obstruction for at least 5 feet. www.tvilight.com PR 00-1662-01 | Rev. C | Page 6 of 9...
-
Page 7: Wiring Location
Circuit breakers such as the ELeQ LS-94 5L2408 or similar rated products could be used. 3. For regions with unclean (fluctuating) electric grids which are prone to voltage surges, Tvilight strongly recommends using Over-voltage and Surge Protectors. Contact Sales for more details. -
Page 8: Getting Started
Getting started 1. Ensure that the device is pre-registered through Tvilight Scan & Go App 2. Ensure that the device is installed properly as per the steps mentioned previously 3. Turn ON the power 4. The device starts to initialize, and the red LED (visible inside the device window) will flash (blink). - Page 9 This means that the device is not able to connect to the CMS server. This can be due to the following reasons: 1. The device is not yet registered in the Tvilight CMS. Please get it registered using the Scan & Go app (see instructions above).
