Directive Systems & Engineering DSE2414LYRM Assembly Instructions

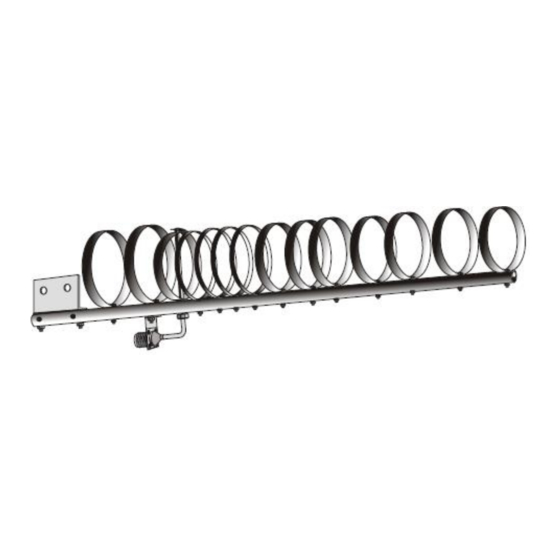

24cm Loop Yagi Kit (Rear Mount), Model DSE2414LYRM
Frequency range:
Number of elements:
Boom length:
Boom diameter:
Mast diameter:
Weight: (assembled)
Connector:
Anti-Seize Compound - Apply a small amount of the supplied Anti-Seize Compound to the aluminum joints and
to the threads of the U-Bolts to prevent galling.
BEFORE INSTALLING YOUR NEW ANTENNA, PLEASE BE SURE
1)
Unpack antenna and locate the hardware package.
2) Straighten any misaligned elements and tighten hardware if necessary.
R1, DE or D1, as these have been factory set for minimum SWR.
3) Insert U-Bolt into rear mount bracket. Note that the bracket can be installed for either
vertical or horizontal polarization. (See drawings below)
DSE2414LYRM Rev 10/20
Directive Systems & Engineering
2702 Rodgers Terrace
Haymarket, VA 20169-1628
www.directivesystems.com

SPECIFICATIONS

1.24 to 1.27 GHz
14
36 inches
1 inch
2 inches max
3 pounds
Type-N female
Note: All hardware is Stainless Steel unless otherwise noted.
TO READ THE ENCLOSED WARNING PAMPHLET.
ASSEMBLY INSTRUCTIONS
703-754-3876
Gain:
-3 dB Beamwidth
(E plane):
F/B ratio:
Maximum Power:
15 dBi
30º
>20 dB
550 W average
But do not touch
