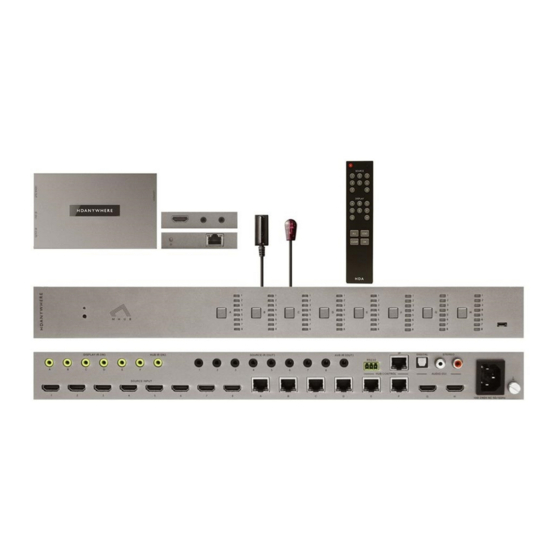

- Page 1 MHUB 4K (8x6+2) Manual Product Code: MHUB4K862 DigitaL Stereo Display IR (IN) HUB IR (IN) source ir (OUT) AVR ir (OUT) RS232 HUB CONTROL AUDIO (G) SOURCE INPUT 100-240V AC 50/60HZ...
- Page 2 MHUB 4K (8x6+2) Manual YO U R CO N T ENT S MH U B This multiroom system with support for the newest 4K devices with HDCP Contents and introduction 2.2 encryption is the perfect addition to your smart home. Watch any eight Quick setup guide and system features entertainment devices in 4K ULTRA HD on up to eight HDTVs and send...
-
Page 3: Quick Setup

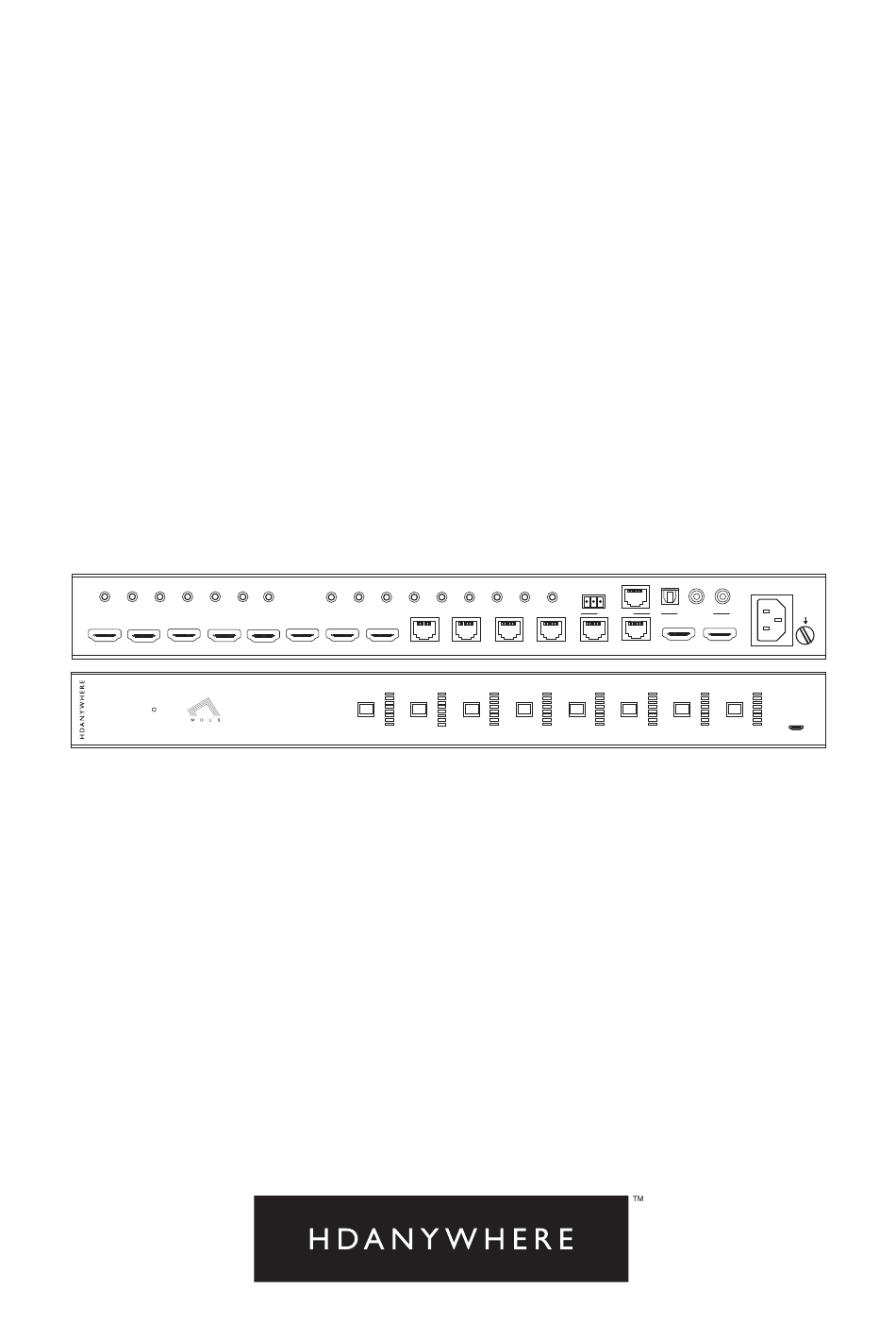

QU I CK S ET U P If you have installed an MHUB or other HDanywhere device before, this quick start guide will get you up and running in the fastest time possible. If you have not installed one of our systems, we would recommend reading the rest of this manual. - Page 4 MHUB 4K (8x6+2) Manual T H E C E NT RA L H U B ( X 1 ) MHUB 4K (8X6+2) CHASSIS (FRONT) 1. Power LED: If this is lit up your matrix is receiving power 2. Source Selector [1-8]: Select which source you want to switch to via the button 3.
-
Page 5: S E Tt In G Up I R Co N Tr O L
MHUB 4K (8x6+2) Manual DI S P LAY R EC E I V E R S ( X 6) IR (IN) IR (OUT) HDMI out HDBASET 1. Power LED: This LED indicates that the receiver has a PoE connection with the matrix 2. - Page 6 MHUB 4K (8x6+2) Manual S O U R C E CO N T R OL V IA IR (BACK WAR D S I R ) FOR O U T P UTS G & H 1. As per Outputs A-F 2. As per Outputs A-F 3.
-
Page 7: T Esti Ng Your I R S E Tu P
MHUB 4K (8x6+2) Manual T ESTI NG YOUR I R S E TU P TEST BAS I C O PE RATION The easiest way to verify your IR setup is to go to your display device connected to output 1 of the central hub. Use the matrix remote to select source input 1 and then use the remote control for your chosen source 1 to verify control. -
Page 8: Stan Dar D Wi R I Ng D I Ag Ra M
MHUB 4K (8x6+2) Manual STAN DAR D WI R I NG D I AG RA M This is a typical wiring diagram that shows how we would expect an MHUB 4K (8x6+2) to be cabled. This dia- gram features eight HDMI source devices (any combination of source devices) being sent to eight rooms. 6 of the displays are located upto 70m away (40m if 4K is required) with an additional two rooms on a short HDMI run. -
Page 9: Edid Management
MHUB 4K (8x6+2) Manual E DID M AN AGE ME N T Extended display identification data (EDID) is data sent by a display to describe its capabilities to a HDMI source. For example, it’s what enables a modern computer to know what kinds of monitors are connected to it. W HAT I S E D I D ? Extended display identification data (EDID) is data sent by a display to describe its capabilities to a HDMI source. -
Page 10: Operating Your System
MHUB 4K (8x6+2) Manual O P ERAT I N G YOU R SYSTEM M A N UA L O P E RATION You can switch between sources manually by using the buttons on the front of the central hub. Each output has its own button which cycles through the inputs. -
Page 11: Troubleshooting
MHUB 4K (8x6+2) Manual TRO U BLES H O OT IN G Should you encounter a problem when using your mHub a soft power cycle or hard reset of the matrix should resolve most issues. TO P E R FO R M A H AR D RES ET: Power down every device connected to the central hub: all input sources and all HDTVs. -
Page 12: Specification
MHUB 4K (8x6+2) Manual SP EC IF ICAT I ON These specifications may change or be improved without notice. HD Connectivity Ltd. may not be held responsible for discrepancies. Frequency bandwidth 10.2Gbps Central hub input/output ports x8 HDMI inputs x6 Cat 5e/6 outputs x2 HDMI output Display receiver input/output ports x1 HDMI... - Page 13 GUA RA NT E E A two-year worldwide replacement guarantee covering HDanywhere™ electronic devices is provided by HD Connectivity Ltd. . If you need to use this guarantee, please contact HDanywhere Customer Services: support@ hdconnectivity.com or telephone (0)1648 576 348 during UK office hours.
