Monoprice 21648 User Manual

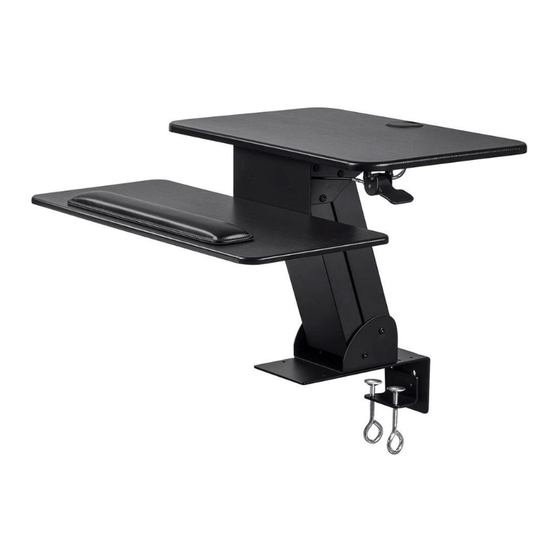

Sit-stand desk workstation clamp-on
Hide thumbs

Advertisement

Quick Links

Download this manual
Sit-Stand Desk Workstation
CLAMP-ON MODEL
21648
P/N
User's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the 21648 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Monoprice 21648

Summary of Contents for Monoprice 21648

  • Page 1 Sit-Stand Desk Workstation CLAMP-ON MODEL 21648 User’s Manual...

  • Page 2: Table Of Contents

    CONTENTS SAFETY WARNINGS AND GUIDELINES ............................2 INTRODUCTION ........................................ 3 FEATURES ..........................................3 CUSTOMER SERVICE ....................................3 PACKAGE CONTENTS ....................................4 PRODUCT DIMENSIONS ................................... 5 ASSEMBLY INSTRUCTIONS ..................................6 TECHNICAL SUPPORT ....................................11 SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines.

  • Page 3: Introduction

    If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-...

  • Page 4: Package Contents

    PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x Desktop (a) 1x Keyboard Tray (b)

  • Page 5: Product Dimensions

    4x M6 Washers (m) 4x M6 Nuts (n) 2x 5mm Square Pads (o) 2x 2mm Square Pads (p) 1x Allen Key (q) 1x Wrench (r) PRODUCT DIMENSIONS...

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Perform the following steps to assemble the sit-stand desk workstation. 1. Using 4x M6x12 Bolts (i) and the Allen Key (q), attach the L Plate (e) to the Keyboard Tray (b). 2. Peel the protective film from each of the 2x 5mm Square Pads (o) and attach them to the bottom of the Keyboard Tray (b).
  • Page 7 3. Feed the cable for the lever through the left or right side gap, as shown below, then attach the L Plate (e) on the Keyboard Tray assembly to the Gas Spring Arm (c) using 4x M6 Washers (m), 4x M6 Nuts (n), and the Wrench (r). Warning do not operate the Lever until the workstation is fully assembled! Note that the L Plate (e) can be installed in two positions.
  • Page 8 5. Place 2x Spacers (l) over the holes on the bottom of the Desktop (a), then attach the Lever to the Desktop (a) using 2x M6x35 Bolts (k) and the Allen Key (q). Note that the Lever can be installed on either the left or right side. 6.
  • Page 9 7. (Optional) Peel the protective film from each of the 2x 2mm Square Pads (p) and then attach them to the C-clamp Brace (g). 8. Place the assembly on your desk with the C-clamp Brace (g) flush against the side of the desk.
  • Page 10 9. Peel the protective film from the pads on the bottom of the Wrist Rest (d), then attach it to the Keyboard Tray (b). 10. Place your monitor on the Desktop (a) and your keyboard and mouse on the Keyboard Tray (b). 11.

  • Page 11: Technical Support

    TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations.
