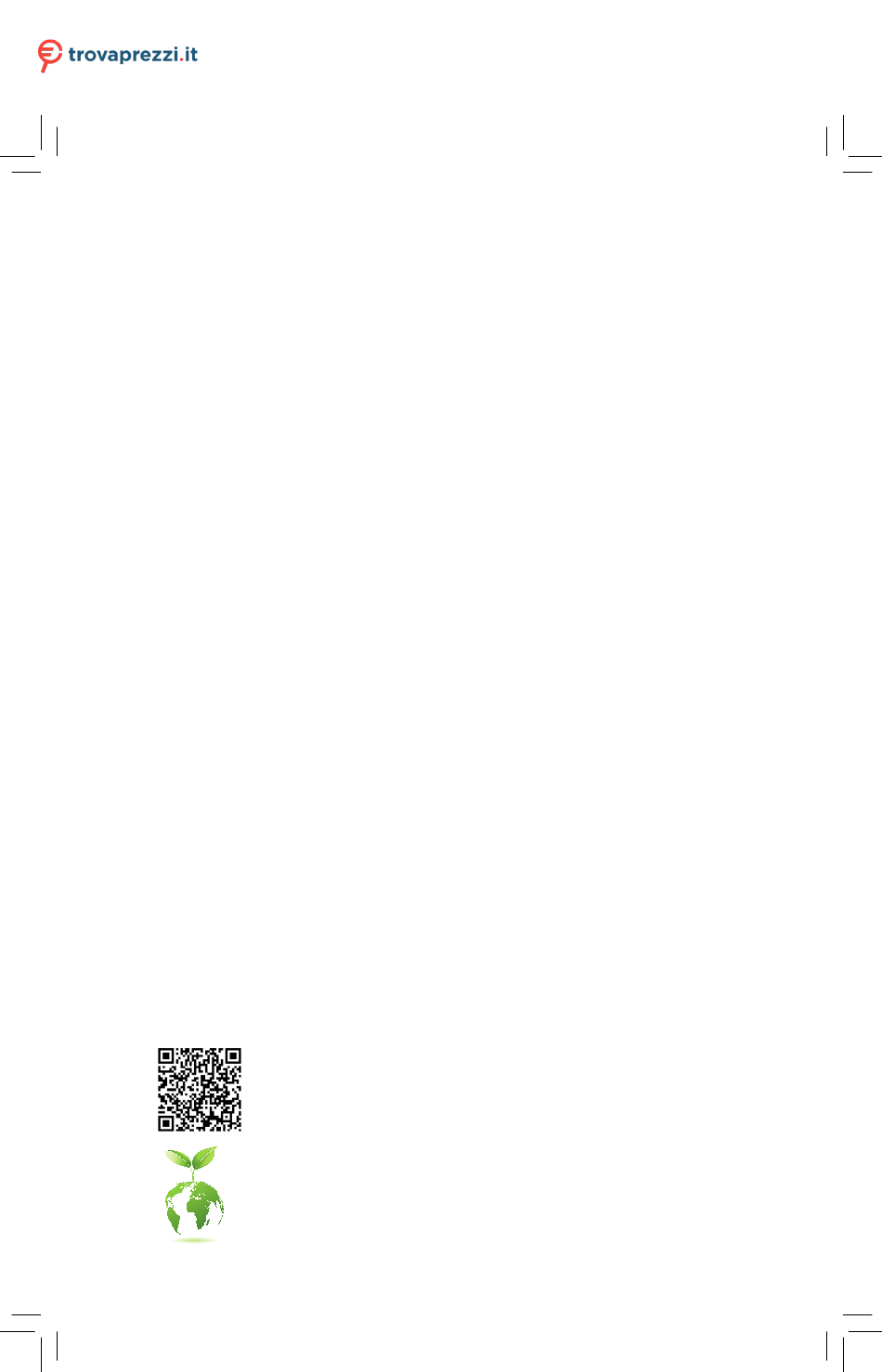

Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
Gaming X
o cerca il tuo prodotto tra le

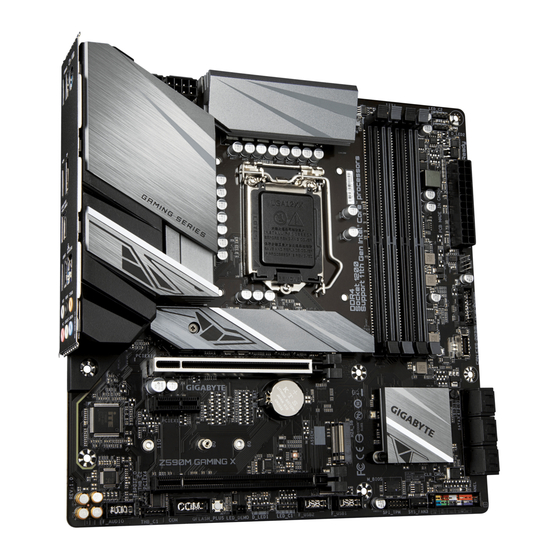

Z590M GAMING X
User's Manual
Rev. 1001
12ME-Z59MGX-1001R
For more product details, please visit GIGABYTE's website.
To reduce the impacts on global warming, the packaging materials of this product
are recyclable and reusable. GIGABYTE works with you to protect the environment.
migliori offerte di Schede Madri
Gigabyte Z590M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z590M GAMING X and is the answer not in the manual?

Questions and answers

Related Manuals for GIGA-BYTE TECHNOLOGY Z590M GAMING X

Summary of Contents for GIGA-BYTE TECHNOLOGY Z590M GAMING X

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Gigabyte Z590M Gaming X o cerca il tuo prodotto tra le migliori offerte di Schede Madri Z590M GAMING X User's Manual Rev. 1001 12ME-Z59MGX-1001R For more product details, please visit GIGABYTE's website.
  • Page 2 Copyright © 2021 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice.

  • Page 3: Table Of Contents

    Table of Contents Z590M GAMING X Motherboard Layout .................4 Chapter 1 Hardware Installation ..................5 Installation Precautions ..................5 1-2 Product Specifications ..................6 Installing the CPU .................... 9 Installing the Memory ..................9 Installing an Expansion Card ................. 10 Back Panel Connectors .................. 10 Internal Connectors ..................

  • Page 4: Z590M Gaming X Motherboard Layout

    Z590M GAMING X Motherboard Layout ATX_12V_2X2 LED_C2 CPU_FAN ATX_12V_2X4 KB_MS_U32 D_LED2 SYS_FAN1 LGA1200 DP_HDMI U32G2 U32G2C U32_LAN Realtek ® 2.5GbE LAN AUDIO PCIEX16 PCIEX1 ® Super I/O Intel Z590 ® Z590M GAMING X CODEC PCIEX4 USB 2.0 Hub CLR_CMOS THB_C2...

  • Page 5: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. • Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer.

  • Page 6: 1-2 Product Specifications

    1-2 Product Specifications LGA1200 package: Š 11th Generation Intel Core i9 processors/Intel Core i7 processors/ ® ™ ® ™ Intel Core i5 processors ® ™ 10th Generation Intel Core i9 processors/Intel Core i7 processors/ ® ™ ® ™ Intel Core i5 processors/Intel Core i3 processors/ ®...
  • Page 7 Storage Interface Š CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) Chipset: Š 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Š * R efer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane Memory Ready ®...
  • Page 8 Back Panel 1 x HDMI port Š Connectors 1 x USB 3.2 Gen 2 Type-A port (red) Š 1 x USB Type-C port, with USB 3.2 Gen 2 support ® Š 1 x RJ-45 port Š 6 x audio jacks Š I/O Controller I/O Controller Chip ®...

  • Page 9: Installing The Cpu

    Installing the CPU Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.

  • Page 10: Installing An Expansion Card

    The four memory sockets are divided into two channels and each channel has two memory sockets as following: Channel A: DDR4_A1, DDR4_A2 Channel B: DDR4_B1, DDR4_B2 Recommanded Dual Channel Memory Configuration: DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2 2 Modules DS/SS DS/SS 4 Modules DS/SS DS/SS DS/SS DS/SS (SS=Single-Sided, DS=Double-Sided, "- -"=No Memory) Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode. Dual Channel mode cannot be enabled if only one memory module is installed. When enabling Dual Channel mode with two or four memory modules, it is recommended that memory of the same capacity, brand, speed, and chips be used. Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: •...
  • Page 11 USB 3.2 Gen 2 Type-A Port (Red) (Q-Flash Plus Port) The USB 3.2 Gen 2 port supports the USB 3.2 Gen 2 specification and is compatible to the USB 3.2 Gen 1 and USB 2.0 specification. Use this port for USB devices. Before using Q-Flash Plus , make sure to (Note) insert the USB flash drive into this port first. USB Type-C Port ® The reversible USB port supports the USB 3.2 Gen 2 specification and is compatible to the USB 3.2 Gen 1 and USB 2.0 specification. Use this port for USB devices. RJ-45 LAN Port The Gigabit Ethernet LAN port provides Internet connection at up to 2.5 Gbps data rate. The following describes the states of the LAN port LEDs.

  • Page 12: Internal Connectors

    Internal Connectors 10 15 ATX_12V_2X2/ATX_12V_2X4 F_U32C F_U32 CPU_FAN F_USB1/F_USB2 SYS_FAN1/2/3 SPI_TPM LED_C1/LED_C2 THB_C1/THB_C2 D_LED1/D_LED2 SATA3 0/1/2/3/4/5 M2P_CPU/M2A_SB CLR_CMOS F_PANEL QFLASH_PLUS F_AUDIO SPDIF_O Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. • Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
  • Page 13 1/2) ATX_12V_2X2/ATX_12V_2X4/ATX (2x2, 2x4, 12V Power Connectors and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed. The power connector possesses a foolproof design. Connect the power supply cable to the power connector in the correct orientation.
  • Page 14 3/4) CPU_FAN/SYS_FAN1/2/3 (Fan Headers) All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire). The speed control function requires the use of a fan with fan speed control design. For optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.
  • Page 15 6) D_LED1/D_LED2 (Addressable LED Strip Headers) The headers can be used to connect a standard 5050 addressable LED strip, with maximum power rating of 5A (5V) and maximum number of 1000 LEDs. Pin No. Definition V (5V) D_LED1 D_LED2 Data No Pin Connect your addressable LED strip to the header. The power pin (marked with a triangle on the plug) of the LED strip must be connected Addressable LED Strip to Pin 1 of the addressable LED strip header. Incorrect connection may lead to the damage of the LED strip. For how to turn on/off the lights of the LED strip please visit the "Unique Features" webpage of GIGABYTE's website. Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
  • Page 16 S B_ 8) M2P_CPU /M2A_SB (M.2 Socket 3 Connectors) (Note) The M.2 connectors support M.2 SATA SSDs or M.2 PCIe SSDs and support RAID configuration. Please note that an M.2 PCIe SSD cannot be used to create a RAID set either with an M.2 SATA SSD or a SATA hard drive. Refer to Chapter 3, "Configuring a RAID Set," for instructions on configuring a RAID array. M2P_CPU (Note) M2A_SB F_USB3 F Follow the steps below to correctly install an M.2 SSD in the M.2 connector. Step 1: Locate the M.2 connector where you will install the M.2 SSD, use a screwdriver to unfasten the screw on the heatsink and then remove the heatsink. (Only the M2P_CPU connector has the heatsink) Step 2: Locate the proper mounting hole based on the length of your M.2 SSD drive. If needed, tighten the included standoff into the desired mounting hole. Insert the M.2 SSD into the M.2 connector at an angle. Step 3: Press the M.2 SSD down and then use the included screw to secure it in the connector. Replace the heatsink and secure it to the original hole. Remove the protective film from the bottom of the heatsink...
  • Page 17 9) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. •...
  • Page 18 11) F_U32C (USB Type-C Header with USB 3.2 Gen 1 Support) ® The header conforms to USB 3.2 Gen 1 specification and can provide one USB port. Pin No. Definition Pin No. Definition Pin No. Definition F_USB3 F_USB30 3 VBUS RX2+ TX1+ SBU1 RX2- TX1- SBU2 VBUS RX1+ TX2+ RX1- TX2- VBUS F_USB30 F_ U 12) F_U32 (USB 3.2 Gen 1 Header) The header conforms to USB 3.2 Gen 1 and USB 2.0 specification and can provide two USB ports. For purchasing the optional 3.5" front panel that provides two USB 3.2 Gen 1 ports, please contact the local...
  • Page 19 F_USB3 F 14) SPI_TPM (Trusted Platform Module Header) You may connect an SPI TPM (Trusted Platform Module) to this header. Pin No. Definition Pin No. Definition Data Output Chip Select Power (3.3V) No Pin Data Input 15) THB_C1/THB_C2 (Thunderbolt Add-in Card Connectors) ™...
  • Page 20 17) BAT (Battery) The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low level, or the CMOS values may not be accurate or may be lost. You may clear the CMOS values by removing the battery: 1. Turn off your computer and unplug the power cord. 2. Gently remove the battery from the battery holder and wait for one minute. (Or use a metal object like a screwdriver to touch the positive and negative terminals of the battery holder, making them short for 5 seconds.) 3.
  • Page 21 20) SPDIF_O (S/PDIF Out Header) This header supports S/PDIF digital output, which allows you to connect a S/PDIF digital audio cable to output digital audio from your motherboard to the supported audio devices. For information about connecting the digital audio cable, carefully read the manual for your audio devices. Pin No. Definition 5VDUAL No Pin SPDIFO 1 2 3 - 21 -...

  • Page 22: Chapter 2 Bios Setup

    Chapter 2 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters and loading operating system, etc. BIOS includes a BIOS Setup program that allows the user to modify basic system configuration settings or to activate certain system features.

  • Page 23: The Main Menu

    The Main Menu System Time Setup Menus Configuration Items Hardware Information Configuration Items Current Settings Quick Access Bar allows you to quickly move to the General Help, Easy Mode, Smart Fan 6, or Q-Flash screen. Advanced Mode Function Keys <f><g> Move the selection bar to select a setup menu <h><i>...

  • Page 24: Smart Fan 6

    Smart Fan 6 Use the <F6> function key to quickly switch to this screen. This screen allows you to configure fan speed related settings for each fan header or monitor your system/CPU temperature. & TUNE ALL Allows you to apply the current settings to all fan headers. & Temperature Displays the current temperature of the selected target area. & Fan Speed Displays current fan speeds. & Fan Speed Control Allows you to determine whether to enable the fan speed control function and adjust the fan speed. Allows the fan to run at different speeds according to the temperature.

  • Page 25: Favorites (F11)

    & FAN Stop Enables or disables the fan stop function. You can set the temperature limit using the temperature curve. The fan stops operation when the temperature is lower than the limit. (Default: Disabled) & FAN Mode Allows you to set the operating mode for the fan. Slope A djusts the fan speed linearly based on the temperature. (Default) Adjusts the fan speed stepwise based on the temperature. Stair &...

  • Page 26: Tweaker

    Tweaker Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall system configurations. Incorrectly doing overclock/overvoltage may result in damage to CPU, chipset, or memory and reduce the useful life of these components. This page is for advanced users only and we recommend you not to alter the default settings to prevent system instability or other unexpected results.
  • Page 27 & AVX Offset (Note) When the processor runs AVX workloads, the CPU Clock Ratio will be reduced by the desired AVX offset value. For example, if the value is set to 3, the CPU Clock Ratio will be reduced by 3 when executing AVX instructions. (Default: Auto) & AVX512 Offset (Note) When the processor runs AVX-512 workloads, the CPU Clock Ratio will be reduced by the desired AVX-512 offset value. For example, if the value is set to 3 (the value must be larger than or equal to the AVX Offset value), the CPU Clock Ratio will be reduced by 3 when executing AVX-512 instructions. (Default: Auto) & AVX Voltage Guardband Scale Factor (Note) Allows you to lower the standard AVX voltage. (Default: Auto) &...
  • Page 28 & Race To Halt (RTH) /Energy Efficient Turbo (Note) (Note) Enables or disables the CPU power saving related settings. (Default: Auto) & Intel(R) Turbo Boost Technology (Note) Allows you to determine whether to enable the Intel CPU Turbo Boost technology. Auto lets the BIOS ® automatically configure this setting. (Default: Auto) & Intel(R) Turbo Boost Max Technology 3.0 (Note) Enables or disables Intel Turbo Boost Max Technology 3.0.
  • Page 29 & C6/C7 State Support Allows you to determine whether to let the CPU enter C6/C7 mode in system halt state. When enabled, the CPU core frequency and voltage will be reduced during system halt state to decrease power consumption. The C6/C7 state is a more enhanced power-saving state than C3. Auto lets the BIOS automatically configure this setting. This item is configurable only when C-States Control is set to Enabled. (Default: Auto) &...
  • Page 30 & System Memory Multiplier Allows you to set the system memory multiplier. Auto sets memory multiplier according to memory SPD data. (Default: Auto) & Memory Ref Clock Allows you to manually adjust the memory reference clock. (Default: Auto) & Memory Odd Ratio (100/133 or 200/266) (Note) Enabled allows Qclk to run in odd frequency. (Default: Auto) & Gear Mode (Note) Allows you to improve the maximum OC frequency potential. (Default: Auto) ƒ Advanced Memory Settings & Memory Multiplier Tweaker Provides different levels of memory auto-tuning. (Default: Auto) &...
  • Page 31 ƒ SPD Info Displays information on the installed memory. ƒ Memory Channels Timings d Channels Standard Timing Control, Channels Advanced Timing Control, Channels Misc Timing Control These sections provide memory timing settings. Note: Your system may become unstable or fail to boot after you make changes on the memory timings. If this occurs, please reset the board to default values by loading optimized defaults or clearing the CMOS values.

  • Page 32: Settings

    Settings ƒ Platform Power & Platform Power Management Enables or disables the Active State Power Management function (ASPM). (Default: Disabled) & PEG ASPM Allows you to configure the ASPM mode for the device connected to the CPU PEG bus. This item is configurable only when Platform Power Management is set to Enabled. (Default: Disabled) & PCH ASPM Allows you to configure the ASPM mode for the device connected to Chipset's PCI Express bus. This item is configurable only when Platform Power Management is set to Enabled. (Default: Disabled) &...
  • Page 33 & ErP Determines whether to let the system consume least power in S5 (shutdown) state. (Default: Disabled) Note: When this item is set to Enabled, the following functions will become unavailable: Resume by Alarm, power on by mouse, and power on by keyboard. & Soft-Off by PWR-BTTN Configures the way to turn off the computer in MS-DOS mode using the power button. Instant-Off Press the power button and then the system will be turned off instantly. (Default) P ress and hold the power button for 4 seconds to turn off the system. If the power Delay 4 Sec. button is pressed for less than 4 seconds, the system will enter suspend mode. &...
  • Page 34 & Aperture Size Allows you to set the maximum amount of system memory that can be allocated to the graphics card. Options are: 128MB, 256MB, 512MB, 1024MB, and 2048MB. (Default: 256MB) & PCIE Bifurcation Support Allows you to determine how the bandwidth of the PCIEX16 slot is divided. Options: Auto, PCIE x8/x8, PCIE x8/x4/x4. (Default: Auto) &...
  • Page 35 & IPv4 HTTP Support Enables or disables HTTP boot support for IPv4. This item is configurable only when Network Stack is enabled. & IPv6 PXE Support Enables or disables IPv6 PXE Support. This item is configurable only when Network Stack is enabled. & IPv6 HTTP Support Enables or disables HTTP boot support for IPv6. This item is configurable only when Network Stack is enabled. & PXE boot wait time Allows you to configure how long to wait before you can press <Esc> to abort the PXE boot. This item is configurable only when Network Stack is enabled. (Default: 0) & Media detect count Allows you to set the number of times to check the presence of media. This item is configurable only when Network Stack is enabled. (Default: 1) ƒ NVMe Configuration Displays information on your M.2 NVME PCIe SSD if installed.
  • Page 36 ƒ Miscellaneous & LEDs in System Power On State Allows you to enable or disable motherboard LED lighting when the system is on. Disables the selected lighting mode when the system is on. Off Enables the selected lighting mode when the system is on. (Default) On & LEDs in Sleep, Hibernation, and Soft Off States Allows you to set the lighting mode of the motherboard LEDs in system S3/S4/S5 state. This item is configurable when LEDs in System Power On State is set to On. Disables the selected lighting mode when the system enters S3/S4/S5 state. (Default) Off Enables the selected lighting mode when the system enters S3/S4/S5 state. &...

  • Page 37: System Info

    System Info. This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. & Access Level Displays the current access level depending on the type of password protection used. (If no password is set, the default will display as Administrator.) The Administrator level allows you to make changes to all BIOS settings;...

  • Page 38: Boot

    Boot & Bootup NumLock State Enables or disables Numlock feature on the numeric keypad of the keyboard after the POST. (Default: On) & CFG Lock Enables or disables the MSR 0xE2 function. (Default: Disabled) & Security Option Specifies whether a password is required every time the system boots, or only when you enter BIOS Setup. After configuring this item, set the password(s) under the Administrator Password/User Password item. A password is only required for entering the BIOS Setup program. Setup A password is required for booting the system and for entering the BIOS Setup program. System (Default) &...
  • Page 39 & VGA Support Allows you to select which type of operating system to boot. Auto Enables legacy option ROM only. EFI Driver Enables EFI option ROM. (Default) This item is configurable only when Fast Boot is set to Enabled or Ultra Fast. & USB Support All USB devices are disabled before the OS boot process completes. Disable Link Full Initial All USB devices are functional in the operating system and during the POST. (Default) Partial Initial Part of the USB devices are disabled before the OS boot process completes.
  • Page 40 & Other PCI devices Allows you to select whether to enable the UEFI or Legacy option ROM for the PCI device controller other than the LAN, storage device, and graphics controllers. Do not launch Disables option ROM. UEFI Enables UEFI option ROM only. (Default) Enables legacy option ROM only. Legacy This item is configurable only when CSM Support is set to Enabled. & Administrator Password Allows you to configure an administrator password. Press <Enter> on this item, type the password, and then press <Enter>. You will be requested to confirm the password. Type the password again and press <Enter>. You must enter the administrator password (or user password) at system startup and when entering BIOS Setup. Differing from the user password, the administrator password allows you to make changes to all BIOS settings. & User Password Allows you to configure a user password. Press <Enter> on this item, type the password, and then press <Enter>. You will be requested to confirm the password. Type the password again and press <Enter>. You must enter the administrator password (or user password) at system startup and when entering BIOS Setup.

  • Page 41: Save & Exit

    Save & Exit & Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return to the BIOS Setup Main Menu. & Exit Without Saving Press <Enter> on this item and select Yes. This exits the BIOS Setup without saving the changes made in BIOS Setup to the CMOS. Select No or press <Esc> to return to the BIOS Setup Main Menu. &...

  • Page 42: Chapter 3 Appendix

    Chapter 3 Appendix 3-1 Configuring a RAID Set RAID Levels RAID 0 RAID 1 RAID 5 RAID 10 Minimum ≥2 ≥3 Number of Hard Drives Number of hard Size of the smallest (Number of hard (Number of hard Array Capacity drives * Size of the drive drives -1) * Size of drives/2) * Size of the smallest drive the smallest drive smallest drive Fault Tolerance...

  • Page 43: Installing Intel ® Optane ™ Memory And Storage Management

    3. Under Select Disks item, select the hard drives to be included in the RAID array. Press the <Space> key on the hard drives to be selected (selected hard drives are marked with "X"). Then set the stripe block size. The stripe block size can be set from 4 KB to 128 KB. Once you have selected the stripe block size, set the volume capacity. 4. After setting the capacity, move to Create Volume and press <Enter> to begin. 5. After completing, you'll be brought back to the Intel(R) Rapid Storage Technology screen. Under RAID Volumes you can see the new RAID volume. To see more detailed information, press <Enter> on the volume to check for information on RAID level, stripe block size, array name, and array capacity, etc. Install the RAID driver and operating system With the correct BIOS settings, you are ready to install the operating system.
  • Page 44 A-2. Installation Guidelines 1. Go to Settings\IO Ports\SATA And RST Configuration and make sure RST Control PCIe Storage Devices is set to Manual. Then depending on which M.2 connector you install the Optane memory in, set ™ the corresponding PCIe Storage Dev on Port XX item to RST Controlled. 2.

  • Page 45: Drivers Installation

    Drivers Installation • Before installing the drivers, first install the operating system. • After installing the operating system, insert the motherboard driver disc into your optical drive. Click on the message "Tap to choose what happens with this disc" on the top-right corner of the screen and select "Run Run.exe." (Or go to My Computer, double-click the optical drive and execute the Run.exe program.) "Xpress Install" will automatically scan your system and then list all of the drivers that are recommended to install. You can click the Xpress Install button and "Xpress Install" will install all of the selected drivers. Or click the arrow icon to individually install the drivers you need. Please visit GIGABYTE's website for more software information.

  • Page 46: Regulatory Notices

    Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: Motherboard Trade Name: GIGABYTE Model Number: Z590M GAMING X Responsible Party – U.S. Contact Information: G.B.T. Inc. Address: 17358 Railroad street, City Of Industry, CA91748 Tel.: 1-626-854-9338 Internet contact information: https://www.gigabyte.com This device complies with Part 15 of the FCC Rules, Subpart B, Unintentional Radiators.
  • Page 47 - 47 -...

  • Page 48: Contact Us

    Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : https://esupport.gigabyte.com WEB address (English): https://www.gigabyte.com WEB address (Chinese): https://www.gigabyte.com/tw GIGABYTE eSupport • To submit a technical or non-technical (Sales/Marketing) question, please link to: https://esupport.gigabyte.com...
