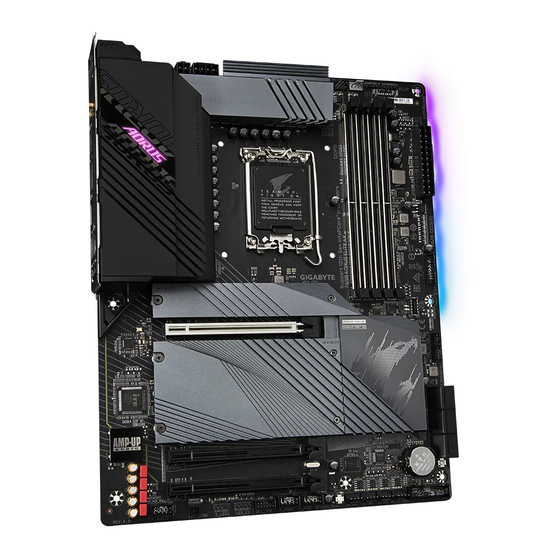

Z690 AORUS ELITE AX
User's Manual
Rev. 1401
For more product details, please visit GIGABYTE's website.
https://www.gigabyte.com/Motherboard/Z690-AORUS-ELITE-AX-rev-14?m=ma#kf
GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen.
Also, to reduce the impacts on global warming, the packaging materials of this product
are recyclable and reusable. GIGABYTE works with you to protect the environment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z690 AORUS ELITE AX and is the answer not in the manual?

Questions and answers

Related Manuals for GIGA-BYTE TECHNOLOGY Z690 AORUS ELITE AX

Summary of Contents for GIGA-BYTE TECHNOLOGY Z690 AORUS ELITE AX

  • Page 1 Z690 AORUS ELITE AX User's Manual Rev. 1401 For more product details, please visit GIGABYTE's website. https://www.gigabyte.com/Motherboard/Z690-AORUS-ELITE-AX-rev-14?m=ma#kf GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen. Also, to reduce the impacts on global warming, the packaging materials of this product...
  • Page 2 Copyright © 2023 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Product Introduction ..................4 Motherboard Layout ..................4 Motherboard Block Diagram ................5 Chapter 2 Hardware Installation ..................6 Installation Precautions ..................6 Product Specifications ..................7 Installing the CPU and CPU Cooler ............... 10 Installing the Memory ..................13 Installing an Expansion Card .................

  • Page 4: Chapter 1 Product Introduction

    Chapter 1 Product Introduction Motherboard Layout CPU_FAN LED_C2 CPU_OPT D_LED2 USB20 ATX_12V_2X4_1 ATX_12V_2X4_2 USB 2.0 Hub M2_WIFI LGA1700 U32G2 DP_HDMI20 U320G U32_LAN AUDIO PCIEX16 Intel ® 2.5GbE LAN Intel Z690 ® ® Super I/O CODEC PCIEX4_1 M_BIOS USB 2.0 Hub PCIEX4_2 QFLED CLR_CMOS...

  • Page 5: Motherboard Block Diagram

    Motherboard Block Diagram PCI Express 5.0 Bus CPU CLK+/- (80~800 MHz) DDR5 5600 /5200 /4800/4400 MT/s (Note) (Note) LGA1700 CPU PCI Express 4.0 Bus 1 DisplayPort 1 HDMI 1 M.2 Socket 3 (M2A_CPU) 4 SATA 6Gb/s (SATA3 4~7) BIOS PCI Express 4.0 Bus Switch eSPI ®...

  • Page 6: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •...

  • Page 7: 2-2 Product Specifications

    2-2 Product Specifications LGA1700 socket: Support for the 13th Generation Intel Core Processors and Š ® ™ 12th Generation Intel Core , Pentium Gold and Celeron Processors ® ™ ® ® (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU Š...
  • Page 8 Storage Interface Š CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: Š 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors * Refer to "2-8 Internal Connectors,"...
  • Page 9 Back Panel 4 x USB 2.0/1.1 ports Š Connectors 2 x SMA antenna connectors (2T2R) Š 2 x USB 3.2 Gen 2 Type-A ports (red) Š 1 x DisplayPort Š 1 x HDMI port Š 3 x USB 3.2 Gen 1 ports Š...

  • Page 10: Installing The Cpu And Cpu Cooler

    Installing the CPU and CPU Cooler Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.
  • Page 11 B. Installing the CPU Follow the steps below to correctly install the CPU into the motherboard CPU socket. Finger Tab j G ently press the CPU socket lever handle down and away from the socket. k C ompletely lift up the CPU socket lock- ing lever.
  • Page 12 C. Installing the CPU Cooler Be sure to install the CPU cooler after installing the CPU. (Actual installation process may differ depending the CPU cooler to be used. Refer to the user's manual for your CPU cooler.) Apply an even and thin layer of thermal grease on the surface of the installed CPU.

  • Page 13: Installing The Memory

    Installing the Memory Read the following guidelines before you begin to install the memory: • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) •...

  • Page 14: Installing An Expansion Card

    Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: • Make sure the motherboard supports the expansion card. Carefully read the manual that came with your expansion card. • Always turn off the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage.

  • Page 15: Back Panel Connectors

    Back Panel Connectors USB 2.0/1.1 Port The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices. SMA Antenna Connectors (2T2R) Use this connector to connect an antenna. Tighten the antennas to the antenna connectors and then aim the antennas correctly for better signal reception.
  • Page 16 USB 3.2 Gen 1 Port The USB 3.2 Gen 1 port supports the USB 3.2 Gen 1 specification and is compatible to the USB 2.0 specification. Use this port for USB devices. USB Type-C Port (with USB 3.2 Gen 2x2 Support) ®...

  • Page 17: Onboard Buttons And Leds

    Onboard Buttons and LEDs Quick Button The reset button (RST_SW) allows users to quickly turn on/off the computer in an open-case environment when they want to change hardware components or conduct hardware testing. RST_SW The reset button provides you with several functions to use. To remap the button to perform different tasks, please navigate to the "BIOS Setup"...
  • Page 18 Status LEDs The status LEDs show whether the CPU, memory, graphics card, and operating system are working properly after system power-on. If the CPU/DRAM/VGA LED is on, that means the corresponding device is not working normally; if the BOOT LED is on, that means you haven't entered the operating system yet. CPU: CPU status LED DRAM: Memory status LED VGA: Graphics card status LED...

  • Page 19: Internal Connectors

    Internal Connectors 3 7 8 ATX_12V_2X4_1/ATX_12V_2X4_2 F_PANEL F_AUDIO CPU_FAN F_U32C SYS_FAN1/2/3 F_U32 SYS_FAN4_PUMP F_USB1/F_USB2 CPU_OPT SPI_TPM D_LED1/D_LED2 THB_C1/THB_C2 LED_C1/LED_C2 CLR_CMOS SATA3 2/3/4/5/6/7 M2A_CPU/M2P_SB/M2Q_SB/M2M_SB Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. •...
  • Page 20 1/2) ATX_12V_2X4_1/ATX_12V_2X4_2/ATX (2x4 12V Power Connectors and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed.
  • Page 21 3/4) CPU_FAN/SYS_FAN1/2/3 (Fan Headers) All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire). The speed control function requires the use of a fan with fan speed control design. For optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.
  • Page 22 6) CPU_OPT (CPU Fan/Water Cooling Pump Header) The fan/pump header is 4-pin and possesses a foolproof insertion design. Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire).
  • Page 23 8) LED_C1/LED_C2 (RGB LED Strip Headers) The headers can be used to connect a standard 5050 RGB LED strip (12V/G/R/B), with maximum power DEBUG PORT rating of 2A (12V) and maximum length of 2m. DEBUG PORT Pin No. Definition LED_C2 LED_C1 Connect your RGB LED strip to the RGB LED Strip...
  • Page 24 10) M2A_CPU/M2P_SB/M2Q_SB/M2M_SB (M.2 Socket 3 Connectors) There are two types of M.2 SSDs: M.2 SATA SSDs and M.2 PCIe SSDs. Be sure to verify which type of M.2 SSDs is supported by the M.2 socket you want to use. Please note that an M.2 PCIe SSD cannot be used to create a RAID set either with an M.2 SATA SSD or a SATA hard drive.
  • Page 25 Installation Notices for the M.2 and SATA Connectors: The availability of the SATA connectors may be affected by the type of device installed in the M.2 sockets. The M2M_SB connector shares bandwidth with the SATA3 2, 3 connectors. Refer to the following table for details. •...
  • Page 26 11) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. Power LED Power Switch Speaker Hard Drive...
  • Page 27 12) F_AUDIO (Front Panel Audio Header) The front panel audio header supports High Definition audio (HD). You may connect your chassis front panel audio module to this header. Make sure the wire assignments of the module connector match the pin assignments of the motherboard header. Incorrect connection between the module connector and the motherboard header will make the device unable to work or even damage it.
  • Page 28 14) F_U32 (USB 3.2 Gen 1 Header) F_USB30 F_ U The header conforms to USB 3.2 Gen 1 and USB 2.0 specification and can provide two USB ports. For purchasing the optional 3.5" front panel that provides two USB 3.2 Gen 1 ports, please contact the local dealer.
  • Page 29 F_USB3 F 16) SPI_TPM (Trusted Platform Module Header) You may connect an SPI TPM (Trusted Platform Module) to this header. Pin No. Definition Data Output Power (3.3V) F_USB3 F No Pin Data Input Chip Select S F_ S S_F 17) THB_C1/THB_C2 (Thunderbolt Add-in Card Connectors) ™...
  • Page 30 18) CLR_CMOS (Clear CMOS Jumper) Use this jumper to clear the BIOS configuration and reset the CMOS values to factory defaults. To clear the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds. Open: Normal Short: Clear CMOS Values •...
  • Page 31 20) BAT (Battery) The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low level, or the CMOS values may not be accurate or may be lost. You may clear the CMOS values by removing the battery: 1.

  • Page 32: Chapter 3 Bios Setup

    Chapter 3 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters and loading operating system, etc. BIOS includes a BIOS Setup program that allows the user to modify basic system configuration settings or to activate certain system features.
  • Page 33 Startup Screen: The following startup Logo screen will appear when the computer boots. Function Keys Function Keys: <DEL>: BIOS SETUP\Q-FLASH Press the <Delete> key to enter BIOS Setup or to access the Q-Flash utility in BIOS Setup. <F12>: BOOT MENU Boot Menu allows you to set the first boot device without entering BIOS Setup.

  • Page 34: Chapter 4 Installing The Operating System And Drivers

    Chapter 4 Installing the Operating System and Drivers Operating System Installation With the correct BIOS settings, you are ready to install the operating system. To install an operating system on a RAID volume, you need to install the Intel RST VMD Controller driver first ®...

  • Page 35: Drivers Installation

    Drivers Installation After you install the operating system, a dialog box will appear on the bottom-right corner of the desktop asking if you want to download and install the drivers and GIGABYTE applications via APP Center. Click Install to proceed with the installation. (In BIOS Setup, make sure Settings\IO Ports\APP Center Download & Install Configuration\APP Center Download & Install is set to Enabled.) When the End User License Agreement dialog box appears, press <Accept>...

  • Page 36: Chapter 5 Appendix

    Chapter 5 Appendix 5-1 Configuring a RAID Set RAID Levels RAID 0 RAID 1 RAID 5 RAID 10 Minimum Number of Hard ≥2 ≥3 Drives Number of hard (Number of hard (Number of hard Size of the smallest Array Capacity drives * Size of the drives -1) * Size of drives/2) * Size of the drive...

  • Page 37: Regulatory Notices

    Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: Motherboard Trade Name: GIGABYTE Model Number: Z690 AORUS ELITE AX Responsible Party – U.S. Contact Information: G.B.T. Inc. Address: 17358 Railroad street, City Of Industry, CA91748 Tel.: 1-626-854-9338 Internet contact information: https://www.gigabyte.com...
  • Page 38 European Union (EU) CE Declaration of Conformity CE Declaración de conformidad This device complies with the following directives: Electromagnetic Este producto que llevan la marca CE cumplen con las siguientes Compatibility Directive 2014/30/EU, Low-voltage Directive 2014/35/EU, Directivas de la Unión Europea: Directiva EMC 2014/30/EU, Directiva de Radio Equipment Directive 2014/53/EU, ErP Directive 2009/125/EC, RoHS bajo voltaje 2014/35/EU, Directiva de equipamentos de rádio 2014/53/EU, directive (recast) 2011/65/EU &...
  • Page 39 European Community Radio Equipment Directive Compliance Statement: This equipment complies with all the requirements and other relevant provisions of Radio Equipment Directive 2014/53/EU. This equipment is suitable for home and office use in all the European Community Member States and EFTA Member States. The low band 5.15 -5.35 GHz is for indoor use only.

  • Page 40: Contact Us

    Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231 TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : https://esupport.gigabyte.com WEB address (English): https://www.gigabyte.com WEB address (Chinese): https://www.gigabyte.com/tw GIGABYTE eSupport • To submit a technical or non-technical (Sales/Marketing) question, please link to: https://esupport.gigabyte.com...
