RFID (4336822A) installation procedure
A toner cartridge is equipped with RF-ID TAG.
If toner cartridges are set to a printer, communication of RF-ID TAG and a RFID read writer module will be attained.
RFID (4336821A) installation procedure.
The function of this system is the following: Management of the existence detection and toner residual quantity of a toner cartridge.
4336822A are attached printer base unit according to the following figure.
1.
To assemble Board-RFID to Plate-Shield-RFID
with two screws.
※RFID Assy – PCB
2.
To assemble RFID Assy-PCB to Plate-Inner with
two screws.
Plate-Shield-RFID
Board-RFID
Film
after assembly
※Plate Assy – Inner (4336821A)
(4336822A)
1
Plate-Inner
Advertisement
Related Manuals for Oki 4336822A
Summary of Contents for Oki 4336822A
- Page 1 RFID (4336821A) installation procedure. The function of this system is the following: Management of the existence detection and toner residual quantity of a toner cartridge. 4336822A are attached printer base unit according to the following figure. To assemble Board-RFID to Plate-Shield-RFID with two screws.
- Page 2 To assemble Head-Cable, Holder-Head, Cover–Top(Sub) and etc to Plate Assy – Inner (4336821A) with 8 screws. (4336822A) Cover-Top(Sub) ※Cover Assy - Top Plate Assy-Inner (4336821A) (4336822A)

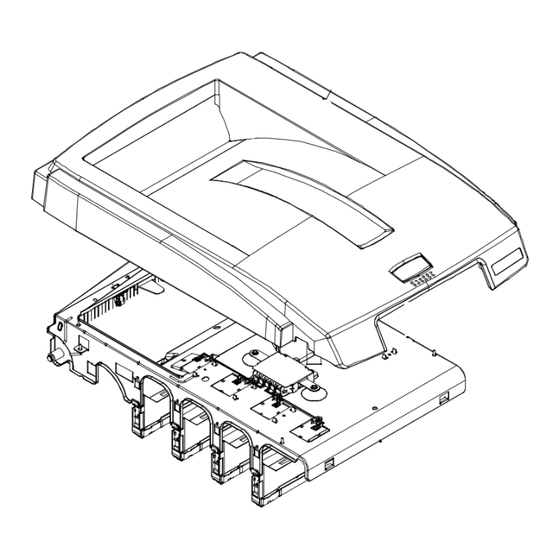

- Page 3 To assemble Cover Assy –Top to Printer-Unit. Cover Assy - Top Printer-Unit...
- Page 4 FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
