Oki OKIPOS 441 Instructions

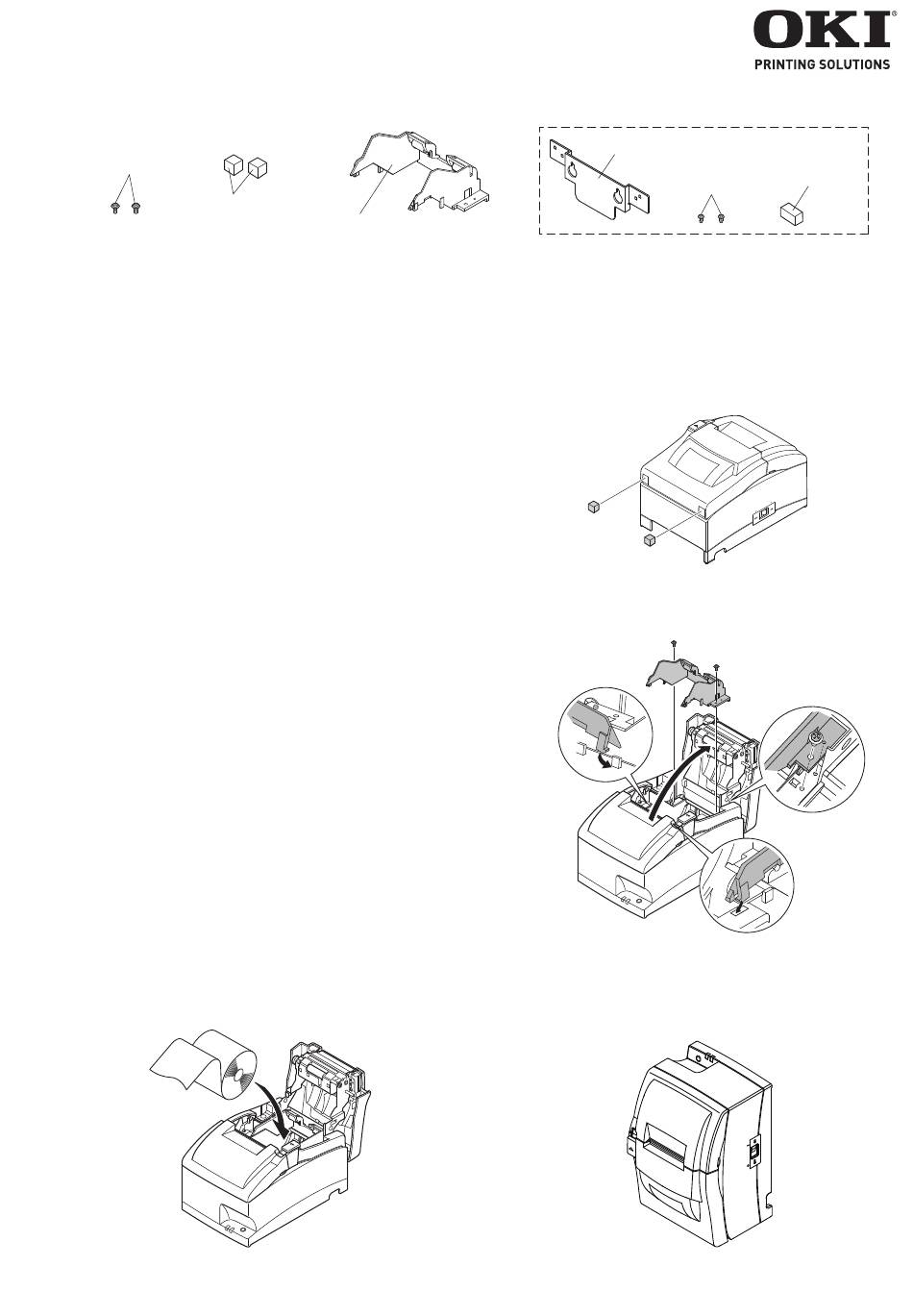

Attaching the OKIPOS 441 vertical stand kit

1. Unpacking :

Confirm that all accessories are included.
M3 x 8 screws
Rubber feet
2. Attachment procedures :
Note: E nsure that power that is supplied to the print-
er and that all devices connected to the printer
have been switched OFF and that the power
cord has been unplugged before starting the
modification.
2-1. Attaching the rubber feet
Attach the two rubber feet in the positions shown
in the figure 1.
Ensure that any soiling has been completely
wiped off before attaching the rubber feet.
2-2. Attaching the paper guide
1 Open the printer cover.
2 Attach the paper guide to the printer. Then
tighten the two M3 screws that were supplied to
secure it in place.
2-3. Setting the roll paper in place
Insert the roll paper as shown in the figure 3.
fig.3 Setting the roll paper in place
58398905
Paper guide
Holder plate
M3 x6 screws
< Not used >
fig.1 Attaching the rubber feet
fig.2 Attaching the paper guide
fig.4 Vertical stand
©2009 OKI Data Americas, Inc.
Rubber foot
