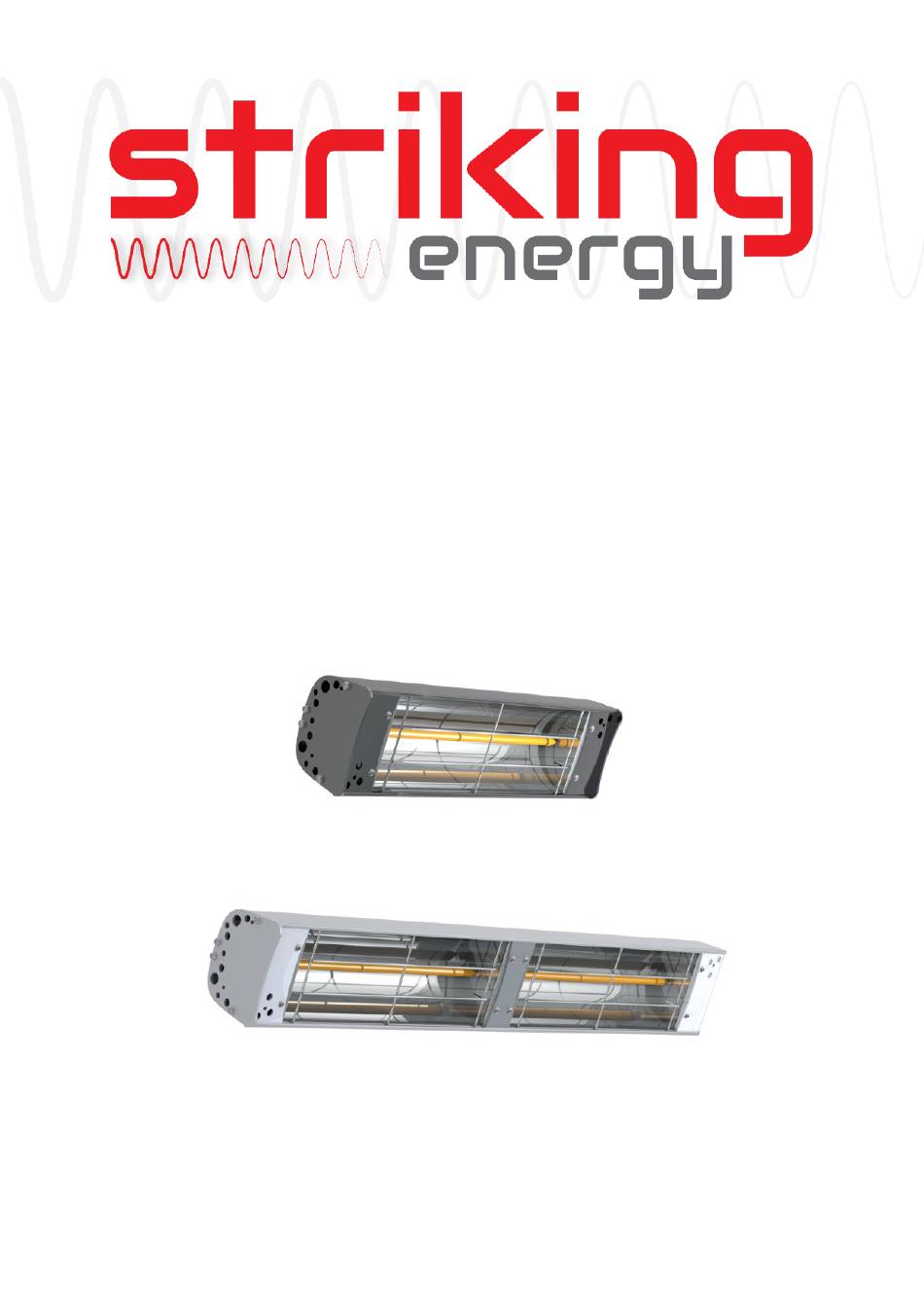

- Page 1 Generation 4 Instruction manual REV 2.1...
- Page 2 The table below lists the heaters that is available in our Generation 4 range. Short Wave – Quartz Halogen Elements Power Ultimate (Amber) Range Ruby Range 1000 watt G4 1000 Gold G4 1000 R 1500 watt G4 1500 A G4 1500 R 2000 watt...
-
Page 3: Safety Instructions
Safety instructions NEVER touch the Quartz Halogen elements. It will cause premature element failure. • If anyone did touch the element, please refer to the paragraph titled “Cleaning the heater” on page 8 and follow the instructions carefully before switching on the heater. •... -
Page 4: Included In The Box
8 and follow the instructions carefully. Included in the box • Your new Striking Energy Generation 4 infrared heater (two 4 mm hex screws already located in the bracket slot on the heater). • Sealed packet with the following items: ‣... - Page 5 Choosing position to install Understanding the characteristics of infrared heat will help you select your ideal position. This is not an exact science and this discussion can serve as a guideline.. Height vs wattage: The heater has an 80-85º spread angle, meaning that the higher the installation, the less heat reaches the target.
- Page 6 Current available: Each 1500 watt heater draws about 8 ampere, while a 3000 watt heater draws about 16 ampere. A typical residential “trip switch” can accommodate two 1500 watt heaters or one 3000 watt heater. If you require more than that, you will have to run a separate supply from the distribution box.
-
Page 7: Installation
Installation New Fixed Mounting bracket - We have replaced the standard swivel brackets with a new design Stainless Steel bracket . This bracket is more accurate to align horizontal, easier to install and have fixed angles for either wall or ceiling mount* Wall Mount Roof Mount (* Only Single Element heaters) -
Page 8: Operating The Heater
Operating the heater • This appliance is not intended for use by any children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless under supervision or if they have been given instruction concerning the use of the appliance by a person responsible for their safety. - Page 9 Gen 4 Parts diagram and exploded view Quartz Halogen models G4 Models 2019 and later Page www.striking.co.za info@striking.co.za...
-
Page 10: Replacing The Element
Replacing the element The following two images shows the types of fasteners. The cable gland secures the cable on its own. The Eyelet ring, coupled with a P-Clamp fastener secures the cable inside the body. Refer to the images on page 9 when you need to identify any heater parts that you are not familiar with. - Page 11 Dismantling Disconnect the power supply completely. Ensure that the element is not illuminated and that both the heater and element are cool. 2. Remove the grid by pulling it carefully to the front. It should pop out of the grooves. It will help pulling on the centre part while keeping the sides down with your thumbs/hands.
- Page 12 Gen 4 dimensions Page www.striking.co.za info@striking.co.za...
-
Page 13: Technical Specifications
Technical specifications Short Wave heaters with Quartz Halogen elements Lamp type / wattage Single element Double element Amber/Gold range 1000/1500/2000 watt 3000/4000 watt Ruby range 1000/1500/2000 watt 3000/4000 watt Material Aluminium (6063,1200H4), Stainless Steel 304 Safety grid: Electro polished Stainless Steel. Electrical requirements 1000 watt –... - Page 14 Components that customer claims to be defective must be available to Striking Energy for inspection and evaluation. To be entitled to rights under the Standard Equipment Warranty, the customer must notify Striking Energy in writing within thirty (30) days after discovering a suspected defect in any product, but in any event prior to the expiration of the applicable Standard Equipment Warranty Period.
- Page 15 OEM products that have a limited 1 year manufacturer’s warranty. 2. Items Sold As Resale. Items sold as resale are such items that are not manufactured by Striking Energy but may be utilised in conjunction with or independently of Striking Energy manufactured equipment (such as computers, printers and network adapters) and shall be covered only by the specific warranty terms of the...
