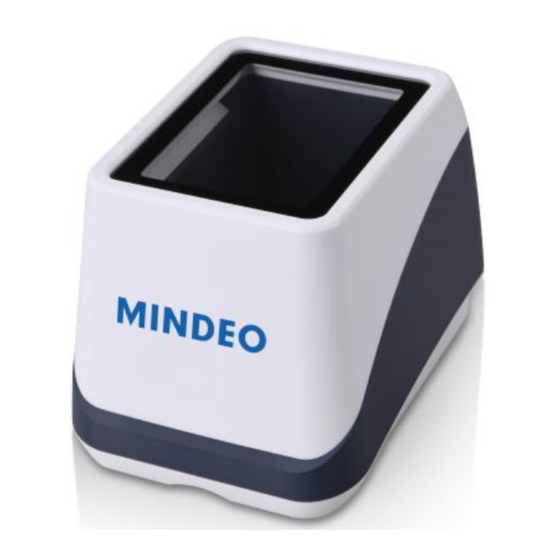

ES168 Screen Barcode Image Platform
User Manual
Version: ES168 _UM_EN_V1.1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES168 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mindeo ES168

Summary of Contents for Mindeo ES168

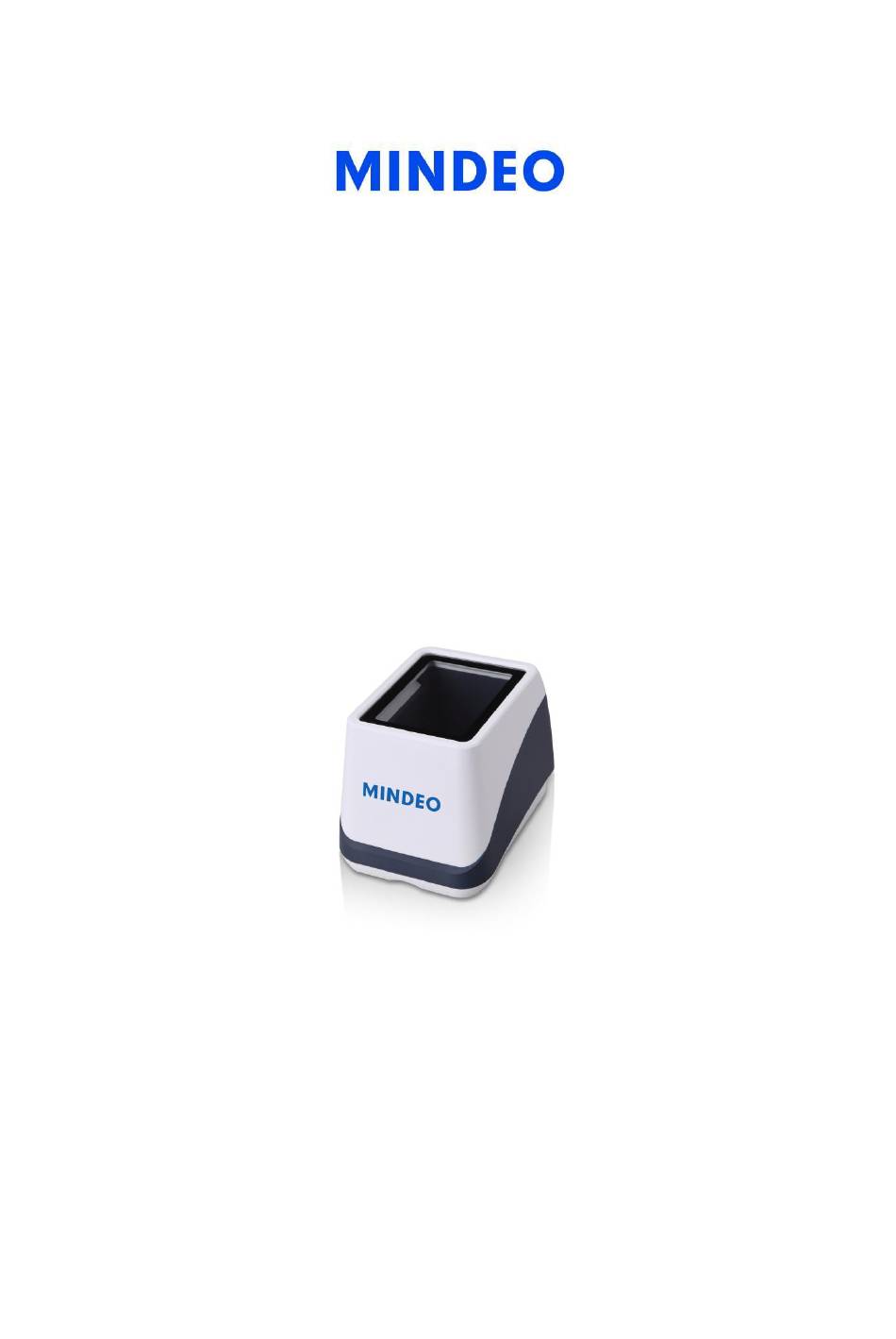

  • Page 1 ES168 Screen Barcode Image Platform User Manual Version: ES168 _UM_EN_V1.1.1...
  • Page 3 Notice Ensure that the optional DC adapter works at + 5 VDC, especially for the RS-232 interface cable. 1. All software, including firmware, furnished to the user is on a licensed basis. 2. The right is reserved to make changes to any software or product to improve reliability, function, or design.

  • Page 5: Table Of Contents

    Contents 1 Specifications............................1 1-1 Technical specifications ........................... 1 1-2 Default setting for each barcode ......................2 2 Getting started ............................3 2-1 Dimensions .............................. 3 2-2 Introduction to installation ........................4 2-2-1 Installation - RS-232 ......................... 4 2-2-2 Installation - USB ..........................4 2-2-2 Installation –...
  • Page 6 3-32 GS1 DataBar Expanded ........................61 3-33 China Finance ............................62 3-34 PDF417 ..............................65 3-35 MicroPDF417 ............................66 3-36 QR Code .............................. 67 3-37 Data Matrix ............................68 3-38 Han Xin Code ............................69 3-39 Aztec Code ............................70 3-40 G1-G6 &...

  • Page 7: Specifications

    1 Specifications 1-1 Technical specifications Dimensions Height × Width × Depth: 124.5 mm × 97.0 mm × 93.0 mm Weight 260 g, without cable Indicator Speaker Interface RS-232, PS/2, USB Keyboard, USB virtual COM Operating Mode Auto-detection Programming Method Reading special barcode Program Upgrade Online Input Voltage...

  • Page 8: Default Setting For Each Barcode

    1-2 Default setting for each barcode Min. code Read Check digit Check digit Proprietary Code type length enable verification transmission code ID code ID UPC-A √ √ √ (12) UPC-E √ √ √ UPC-E1 √ √ EAN-13 √ √ √ (13) EAN-8 √...

  • Page 9: Getting Started

    2 Getting started 2-1 Dimensions Units: mm...

  • Page 10: Introduction To Installation

    2-2 Introduction to installation Note: If any of the below operation is incorrect, turn off the power immediately and check the platform for any improper connections. Go through all steps again. 2-2-1 Installation - RS-232 1) Connect the RS-232 interface cable to the bottom of the platform. 2) Connect the other end of the interface cable to the serial port on the host.

  • Page 11: Installation - Ps/2

    2-2-2 Installation – PS/2 The platform attaches directly to a USB host, and is powered by it. No additional power supply is required. Connect the USB interface cable to the bottom of the platform. Plug the series connector in the USB host, or an available port of the terminal. Windows will automatically detect the USB device.

  • Page 12: Parameter Programming

    3 Parameter programming 3-1 Example 1: Single-parameter setting by scanning 1D barcodes Important notes: 1) After each successful programming, the platform will beep twice. 2) Throughout the programming barcode menus, the factory default settings are indicated with asterisks (*). Two programming modes have been provided as bellows: ❶...

  • Page 13: Example 2: Multiple-Parameter Setting By Scanning A Qr Code Barcode

    3-2 Example 2: Multiple-parameter setting by scanning a QR code barcode User can customize a QR code barcode to set multiple parameters. The platform can set multiple parameters by scanning this single QR code barcode. 1. The data format of the QR code barcode is as following. Note that: <Option barcode index>...

  • Page 14: Operate The Platform By Receiving Command Via Uart

    3-3 Operate the platform by receiving command via UART Note: 1- The information in this chapter is provided for the platform with RS232 cable or USB cable. 2- If the platform is with USB cable, the setting of USB device type must be set as “USB virtual COM”. Please refer to 3-7 USB interface.

  • Page 15: Interface Selection

    3-4 Interface selection This platform supports interfaces such as RS-232 serial wedge, USB interface, and PS/2 interface. In most of the cases, simply selecting an appropriate cable provided by the manufacturer will work for a specific interface. Interface selection: Auto detection- By setting this function, the platform will automatically detect the RS-232 interface or USB interface or PS/2 interface for user.

  • Page 16: Ps/2 Interface

    3-5 PS/2 interface Keyboard type: As a keyboard interface, the platform supports most of the popular PCs and IBM terminals. Keyboard layout: The platform supports different national keyboard layouts. Clock period: According to the PS2 protocol, the clock is provided by the device, e.g. keyboard or platform, with the period between 60us to 100us.
  • Page 17 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry IBM AT, PS/2 Keyboard type Apple Mac compatibles Turkish F Turkish Q French Italian Spanish Keyboard layout Slovak Denmark Japanese German Belgian Russian Czech Character encoding system Refer to 3-8 Scan mode & some global settings.
  • Page 18 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry 200 us 0 ms 10 ms Delay-after-compound-key 20 ms 40 ms 80 ms Alphabetic key Numeric key Numeric keypad Alt+ keypad Disable Power-on simulation Enable 0 ms 5 ms 10 ms Inter-character delay 20 ms 40 ms...
  • Page 19 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Enable Disable Caps Lock override Enable...

  • Page 20: Rs-232 Interface

    3-6 RS-232 interface Flow control: None-The communication only uses TxD and RxD signals without any hardware or software handshaking protocol. RTS/CTS- If the platform wants to send the barcode data to host computer, it will issue the RTS signal first, wait for the CTS signal from the host computer, and then perform the normal data communication. If there is no replied CTS signal from the host computer after the timeout duration, the platform will issue an error indication.
  • Page 21 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry 00-99 Response delay 00-99 (100 ms) 1200 2400 4800 Baud rate 9600 19200 38400 57600 115200 None Parity bit Even 8 bits Data bit 7 bits 1 bit Stop bit 2 bits...

  • Page 22: Usb Interface

    3-7 USB interface USB device type: HID keyboard– By setting, the platform is used as a USB HID keyboard emulation device. USB virtual COM– By setting, the platform emulates a regular RS232-based COM port. If a Microsoft Windows PC is connected to the platform, a driver is required to install on the connected PC. The driver will use the next available COM Port number.
  • Page 23 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Italian Spanish Slovak Denmark Japanese German Belgian Russian Czech Character encoding system Refer to 3-8 Scan mode & some global settings. 0 ms 5 ms 10 ms Inter-character delay 20 ms 40 ms 60 ms Alphabetic key...

  • Page 24: Scan Mode & Some Global Settings

    3-8 Scan mode & some global settings Scan mode: Good-read off-The trigger button must be pressed once to activate scanning. The light source of platform stops scanning when there is a successful reading or no code is decoded after the Stand-by duration elapsed.
  • Page 25 Notes: 1. Please set the max./min. length for individual barcode in later sections, if special demand is requested. 2. The number of check digits is included in max./min. code length. 3. These two settings have no effect on the symbols with fixed-length, e.g. UPC-A, UPC-E, EAN-13, EAN-8 and China Post.
  • Page 26 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Good-read off Momentary Alternate continue Scan mode Continue Good-read on Auto-detection- Good-read on Auto-detection- Good-read off Auto-detection sensitivity 4 seconds 8 seconds Standby duration 16 seconds 24 seconds 30 seconds...
  • Page 27 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry 1 minute 1.5 minutes 2 minutes 5 minutes 7 minutes 10 minutes 15 minutes 20 minutes 30 minutes 45 minutes 1 hour 00-FF Same barcode delay time for 1D symbol 00-FF (50 ms) 00-FF Same barcode delay time for...
  • Page 28 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry 1D symbol 00-66 Global G1-G6 string selection 00-66 Disable Element amendment Enable None Character output restraint Printable character only Alphanumeric character only Disable Decoder optimization Enable Data output delay in 00-FF 00-99 (100 ms) continue-scan mode FF (Never)

  • Page 29: Indication

    3-9 Indication Power on alert: After power-on the platform will generate an alert signal to indicate a successful self-test. Speaker indication: After each successful reading, the platform will beep to indicate a good barcode reading. Multiple-scan setting Single-scan setting Option barcode Option Alpha.

  • Page 30: Decode Illumination

    3-10 Decode illumination Decode illumination mode: Enable illumination causes the platform to turn on the illumination to aid decoding. Disable illumination to turn off illumination for the platform during decoding. Better quality images could be obtained with illumination support. The effectiveness of the illumination decreases as the distance to the target increases.
  • Page 31 Multiple-scan setting Single-scan setting Option barcode Option Alpha. Entry Always Off Always On Decode illumination Flashing Always-On when reading Disable decode illumination Level of decode illumination Middle High Always off Illumination mode of Enable illumination in low Auto-detection light conditions Always on...

  • Page 32: Other Settings

    3-11 Other settings 1D symbols read: A global setting of 1D symbols readability. 2D symbols read: A global setting of 2D symbols readability. Vertical centering read: By setting Enable, the platform reads only the barcode centered by the aimer in vertical direction.
  • Page 33 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Follow respective 1D 1D symbols read symbol setting All 1D OFF Follow respective 2D symbol setting All 2D OFF All 2D ON Only PDF417 ON 2D symbols read Only QR code ON Only Data Matrix ON Only MaxiCode ON Only Aztec Code ON...

  • Page 34: Upc-A

    3-12 UPC-A Read: Format System character Data digits (10 digits) Check digit Check digit verification: The check digit is optional. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Code ID is a one-or-two-character string used to represent the symbol upon a succeeding reading.
  • Page 35 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit trans. Enable 00-FF Code ID setting 00-FF (ASCII) <A>* 00-66 Insert group selection 00-66 None 2 digits Supplement digits 5 digits 2 or 5 digits None Truncate leading zeros...

  • Page 36: Upc-E

    3-13 UPC-E Read: Format System character “0” Data digits (6 digits) Check digits Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Refer to Code ID setting of 3-12 UPC-A.
  • Page 37 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit trans. Enable 00-FF Code ID setting 00-FF (ASCII) <D>* 00-66 Insert group selection 00-66 None 2 digits Supplement digits 5 digits 2 or 5 digits None Truncate leading zeros...

  • Page 38: Upc-E1

    3-14 UPC-E1 Read: Format System character “1” Following 5 data digits Check digits Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Refer to Code ID setting of 3-12 UPC-A.
  • Page 39 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit trans. Enable 00-FF Code ID setting 00-FF (ASCII) <D>* 00-66 Insert group selection 00-66 None 2 digits Supplement digits 5 digits 2 or 5 digits None Expand to EAN-13...

  • Page 40: Ean-13 (Isbn/Issn)

    3-15 EAN-13 (ISBN/ISSN) Read: Format Data digits (12 digits) Check digit Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit transmission: By setting Enable, check digit will be transmitted. EAN-13 code ID setting: Refer to Code ID setting of 3-12 UPC-A.
  • Page 41 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Enable 00-FF EAN-13 code ID setting 00-FF (ASCII) <A>* 00-66 Insert group selection 00-66 None 2 digits Supplement digits 5 digits 2 or 5 digits Disable...

  • Page 42: Ean-8

    3-16 EAN-8 Read: Format Data digits (7 digits) Check digit Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Refer to Code ID setting of 3-12 UPC-A.
  • Page 43 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit trans. Enable 00-FF Code ID setting 00-FF (ASCII) <C>* 00-66 Insert group selection 00-66 None 2 digits Supplement digits 5 digits 2 or 5 digits None Truncation/Expansion...

  • Page 44: Code 39 (Code 32, Trioptic Code 39)

    3-17 Code 39 (Code 32, Trioptic Code 39) Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit is optional and made as the sum module 43 of the numerical value of the data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.
  • Page 45 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <M>* 00-66 Insert group selection 00-66 Standard...
  • Page 46 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Code 32 Prefix “A” transmission Enable Disable Trioptic Code 39 read Enable Trioptic Code 39 Start/End Disable transmission Enable...

  • Page 47: Interleaved 2 Of 5

    3-18 Interleaved 2 of 5 Read: Format Data digits (Variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 10 of the numerical values of all data digits. There are two optional check digit algorithms: the specified Uniform Symbol Specification (USS) and the Optical Product Code Council (OPCC).
  • Page 48 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification OPCC Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <I>* 00-66 Insert group selection 00-66...

  • Page 49: Industrial 2 Of 5

    3-19 Industrial 2 of 5 Read: Format Data digits (variable) Max./Min. code length: Refer to Max./Min. code length of 3-17 Code Code ID setting: Refer to Code ID setting of 3-12 UPC-A. Insertion group selection: Refer to Insertion group selection of 3-12 UPC-A.

  • Page 50: Matrix 2 Of 5

    3-20 Matrix 2 of 5 Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 10 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.

  • Page 51: Codabar

    3-21 Codabar Read: Format Start character Data digits (variable) Check digit (optional) End character Check digit verification: The check digit is made as the sum module 16 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.
  • Page 52 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry 00-FF Code ID setting 00-FF (ASCII) <N>* 00-66 Insert group selection 00-66 ABCD/ABCD abcd/abcd Start/End character type ABCD/TN*E abcd/tn*e Disable Start/End character transmission Enable Disable Start/End character equality Enable...

  • Page 53: Code 128

    3-22 Code 128 Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 103 of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min. code length: Refer to Max./Min. code length of 3-17 Code Code ID setting: Refer to Code ID setting of 3-12...
  • Page 54 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Reserved 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <K>* 00-66 Insert group selection 00-66 Disable...

  • Page 55: Ucc/Ean 128

    3-23 UCC/EAN 128 Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 103 of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max. /Min. code length: Refer to Max./Min. code length of 3-17 Code Code ID setting: Refer to Code ID setting of 3-12...
  • Page 56 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Read Disable Enable Check digit verification Disable Enable Check digit transmission Disable Reserved Max. code length 00-99 00-99 Min. code length 00-99 00-99 Code ID setting 00-FF 00-FF (ASCII) <K>* Insert group selection 00-66 00-66 Disable...

  • Page 57: Isbt 128

    3-24 ISBT 128 Read: Format “=” or “&” Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 103 of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.

  • Page 58: Code 93

    3-25 Code 93 Read: Format Data digits (variable) 2 check digits (optional) Check digit verification: The check digit is made as the sum module 47 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.

  • Page 59: Code 11

    3-26 Code 11 Read: Format Data digits (variable) Check digit 1 (optional ) Check digit 2 (optional) Check digit verification: The check digit is presented as the sum module 11 of all data digits. Check digit transmission: By setting Enable, check digit 1 and check digit 2 will be transmitted upon your selected check digit verification method.
  • Page 60 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable One digit Check digit verification Reserved Reserved Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <V>* 00-66...

  • Page 61: Msi/Plessey

    3-27 MSI/Plessey Read: Format Data digits (variable) Check digit 1 (optional) Check digit 2 (optional) Check digit verification: The MSI/Plessey has one or two optional check digits. There are three methods of verifying check digits, i.e. Mod10, Mod10/10 and Mod 11/10. The check digit 1 and check digit 2 will be calculated as the sum module 10 or 11 of the data digits.
  • Page 62 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable Disable 1 digit (mod 10) Check digit verification Reserved Reserved Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <O>*...

  • Page 63: Plessey

    3-28 UK/Plessey Read: Format Data digits (variable) 2 check digits (optional) Check digit verification: The UK/Plessey has one or two optional check digits. The check digit 1 and check digit 2 will be calculated as the sum module 10 or 11 of the data digits. Check digit transmission: By setting Enable, check digit will be transmitted.

  • Page 64: China Post

    3-29 China Post Read: Format 11 Data digits Max. /Min. code length: Refer to Max./Min. code length of 3-17 Code 39. The code length of China Post is 11. Code ID setting: Refer to Code ID setting of 3-12 UPC-A. Insertion group selection: Refer to Insertion group selection of 3-12 UPC-A.

  • Page 65: Gs1 Databar (Gs1 Databar Truncated)

    3-30 GS1 DataBar (GS1 DataBar Truncated) GS1 DataBar Truncated is structured and encoded the same as the standard GS1 DataBar format, except its height is reduced to a 13 modules minimum; while GS1 DataBar should have a height greater than or equal to 33 modules. Read: Format 16 Data digits...

  • Page 66: Gs1 Databar Limited

    3-31 GS1 DataBar Limited Read: Format 16 Data digits Code ID setting: Refer to Code ID setting of 3-12 UPC-A. Insertion group selection: Refer to Insertion group selection of 3-12 UPC-A. Conversion: Refer to Conversion of 3-29 GS1 DataBar (GS1 DataBar Truncated).

  • Page 67: Gs1 Databar Expanded

    3-32 GS1 DataBar Expanded Read: Format Data characters (variable) Code ID setting: Refer to Code ID setting of 3-12 UPC-A. Insertion group selection: Refer to Insertion group selection of 3-12 UPC-A. Conversion: UCC/EAN 128- Refer to Code ID transmission of 3-42 String transmission, ]Cm will be identified as AIM ID.

  • Page 68: China Finance

    3-33 China Finance Note: This type of barcode is not Omni-directionally decodable. The encodable character set includes numeric 0 to 9. Among the symbol of 0 to 9, 0 and 2, 4 and 9, 5 and 8, 6 and 7, have the symmetrical pattern;...
  • Page 69 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Read Disable Enable Max. code length 00-99 00-99 Min. code length 00-99 00-99 Check digit verification Disable Reserved Disable Enable Only 5 converted to A Leading character 5/6/7/8/9 converted to A/B/C/D/E Only 6 converted to B Only 7 converted to C Only 8 converted to D...
  • Page 70 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Assigned to 1 Assigned to 2 Assigned to 3 Assigned to 4 Code ID setting 00-FF 00-FF (ASCII) <Y>* Insert group selection 00-66 00-66...

  • Page 71: Pdf417

    3-34 PDF417 Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable...

  • Page 72: Micropdf417

    3-35 MicroPDF417 Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable...

  • Page 73: Qr Code

    3-36 QR Code Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable...

  • Page 74: Data Matrix

    3-37 Data Matrix Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable...

  • Page 75: Han Xin Code

    3-38 Han Xin Code Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable...

  • Page 76: Aztec Code

    3-39 Aztec Code Read: Format Data characters (variable) Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Disable Read Enable...

  • Page 77: G1-G6 & C1-C3 & Fn1 Substitution String Setting

    3-40 G1-G6 & C1-C3 & FN1 substitution string setting Format of barcode data transmission: Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Suffix string setting: The <ENTER > key is represented in different ASCII when it is applied by different OS.
  • Page 78 Testing barcode: FN1 substitution string setting: The FN1 character (0x1D) in an UCC/EAN128 barcode, or a Code 128 barcode, or a GS1 DataBar barcode can be substituted with a defined string. Truncate leading G5 string setting: By setting, a defined leading character or string can be truncated. Also a single character can be un-defined.
  • Page 79 Testing barcode: Multiple characters C3 replacement: By setting, a number of defined characters in the data string can be replaced by other defined characters. The maximum number of characters to replace is 11. Example: Replace all the “A” character in a data string with “B” character; replace “C” with “D”; replace “E”...
  • Page 80 Multiple-scan setting Single-scan setting Option barcode Option Alpha. Entry Prefix string setting 0-22 characters 00-FF None Suffix string setting 0-22 characters 00-FF <ENTER> 0D0A* 0-22 characters 00-FF Preamble string setting None 0-22 characters 00-FF Postamble string setting None 0-22 characters 00-FF Insert G1 string setting None...
  • Page 81 Multiple-scan setting Single-scan setting Option barcode Option Alpha. Entry Defined times 01-22 Un-defined times (All) A un-defined character Truncate ending G6 string setting 1-22 defined characters 01-7F <0> Once Repeat of a G6 character setting Defined times 01-22 Un-defined times (All) 0000* Single character C1 replacement <0000>...

  • Page 82: G1-G4 String Position & Code Id Position

    3-41 G1-G4 string position & Code ID position Format of barcode data transmission: Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Insert G1/G2/G3/G4 string position: The platform offers 4 positions to insert strings among the symbol. In case of the insertion position is greater than the length of the symbol, the insertion of string is not effective.

  • Page 83: String Transmission

    3-42 String transmission Note: The information in this chapter is closely related to String setting. Format of barcode data transmission: Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Prefix transmission: By setting Enable, prefix will be appended before the data transmitted. Suffix transmission: By setting Enable, suffix will be appended after the data is transmitted.
  • Page 84 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry Prefix transmission Disable Enable Suffix transmission Disable Enable Code name transmission Disable Enable Preamble transmission Disable Enable Disable Postamble transmission Enable Disable Code ID transmission Proprietary ID AIM ID Disable Code length transmission Enable Disable Upper (data only)
  • Page 85 Multiple-scan setting Single-scan setting Option barcode Option Alpha. entry RS-232 Keyboard wedge /USB/RS-232 All-non-printable-character string Disable transmission with string setting Enable Transmit the first N data characters only 01-99 Transmit the last N data characters only 01-99...

  • Page 86: Other Settings

    4 Other settings 4-1 General settings Function Description Setting After a successful decoding, the Enable voice broadcast platform will broadcast voice. After a successful decoding, the Disable voice broadcast platform will not broadcast voice. After a successful decoding, the Type A of voice platform will broadcast type A of voice.

  • Page 87: Volume Of Voice Broadcast

    4-2 Volume of voice broadcast Description Setting Level 1 (Minimum) Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Level 8 (Maximum)

  • Page 88: Maintenance

    5 Maintenance Cleaning the exit window is the only maintenance required. A dirty window may affect scanning accuracy. Do not allow any abrasive material to touch the window. Remove any dirt particles with a damp cloth. Wipe the window using a tissue moistened with water. Do not spray water or other cleaning liquids directly into the window.

  • Page 89: Ascii Table

    6 ASCII Table for keyboard wedge for RS-232 Null Down Left Right PgUp PgDn Home Enter Insert Ctrl+ Delete Alt+ Note: The 2nd and the 3rd columns above are used for keyboard wedge only. “ & ‘ < > Example: ASCII “A” = “41”.

  • Page 90: Barcode Representing Non-Printable Character

    7 Barcode representing non-printable character Notes to make the following barcode: 1. According to different barcode printing software, the method of printing following barcode is different. 2. If using CODESOFT software, firstly read the information through “Help→Index→Code128→Special input syntax”. Also refer to ASCII table. For example, if we wish to make “F1” barcode, select “Code128”, then select “CODE A”...

  • Page 91: Test Symbols

    8 Test symbols UPC-A UPC-E UPC-E1 (Default setting: Disable) EAN-13 ISBN/ISSN EAN-8 Code 39 Interleaved 2 of 5 Industrial 2 of 5 (Default setting: Disable) Matrix 2 of 5...
  • Page 92 Codabar Code 128 UCC/EAN 128 ISBT 128 Code 93 Code 11 (Default setting: Disable) MSI/Plessey (Default setting: Disable) UK/Plessey (Default setting: Disable) China Post GS1 DataBar (GS1 DataBar Truncated) GS1 DataBar Limited GS1 DataBar Expanded...
  • Page 93 PDF417 12=890ab-+%xyz QR code 1234567890ABCD-+()&*%^@#$!XYZ Data Matrix 123890abc-+=&*%^!mdo Aztec Code (Default setting: Disable) 12345678901234567890 Han Xin Code (Default setting: Disable) 1234567890Hanxin...

  • Page 94: Return Default Parameters & Firmware Version List

    9 Return default parameters & firmware version list Default value initialization If you wish to return the platform to all the factory default settings, scan the barcode above. Firmware version list If you wish to display the firmware version, scan the barcode above.

  • Page 95: Configuration Alphanumeric Entry Barcode

    10 Configuration alphanumeric entry barcode To finish parameter setting, please scan the bar code below.
