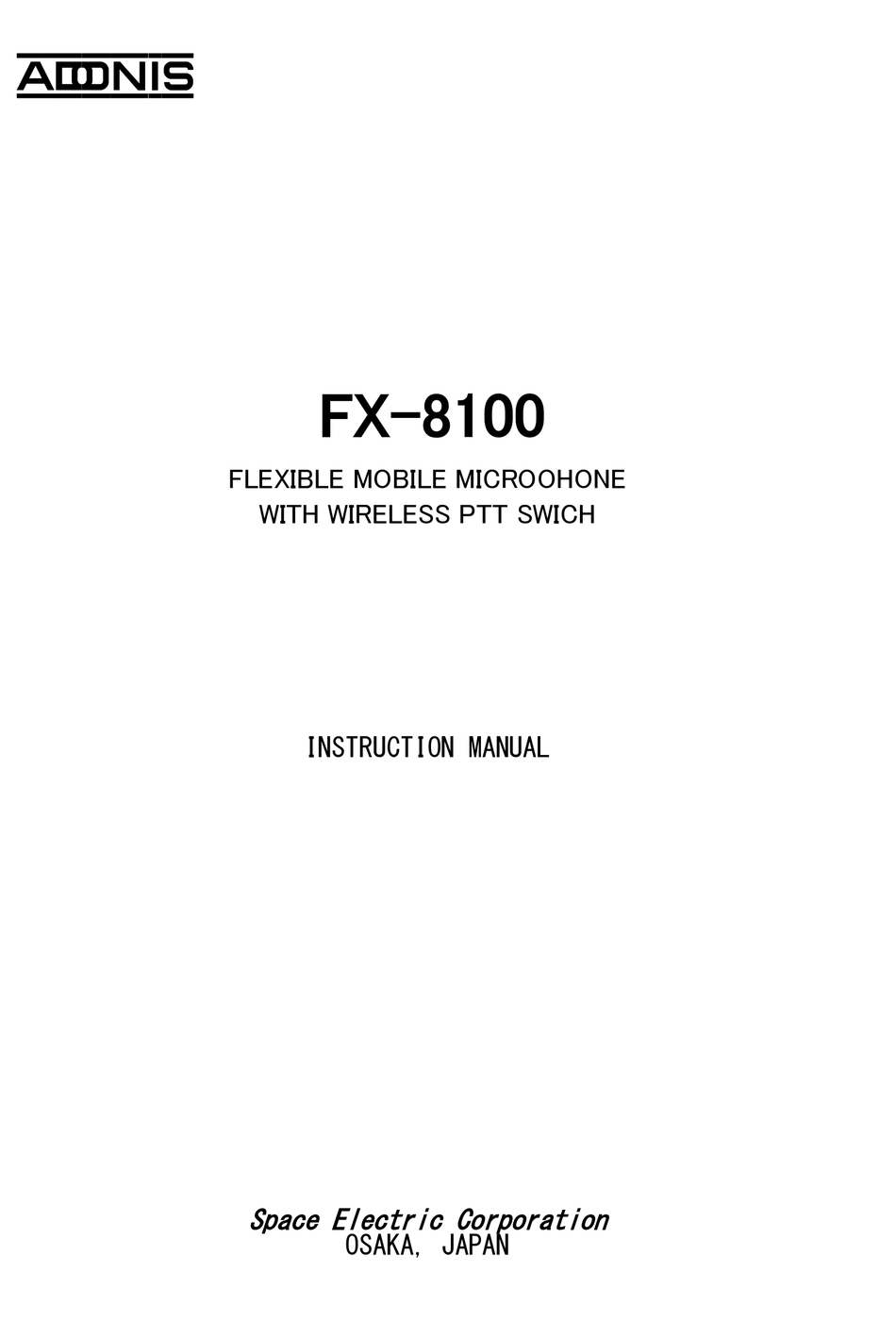

- Page 1 ADONIS FX-8100 FLEXIBLE MOBILE MICROOHONE WITH WIRELESS PTT SWICH INSTRUCTION MANUAL Space Electric Corporation OSAKA, JAPAN...
- Page 2 “ADONIS” MOBILE MICROPHONE MODEL FX･8100 WITH OPTICAL WIRELESS PTT SWITCH Thank you very much for your purchase of Mobile Microphone model FX-8100. The model FX-8100 is unidirectional highly efficient mobile microphone provided with optical wireless PTT switch and Non-Modulation Prevention circuit with alarm sound.
- Page 3 ④ln/Output Cord ; Magic tape for battery case mount ⑥Switch Box(Optical Receiver) < Magic tape for control box mount ⑥Sensor Window 8 PIN “ADONIS” Terminal Connection ⑦TX Indicator Lamp (LED) (8P Relay Jack) ⑧PTT Switch ⑨LOCK Switch 1 E: Earth (Mic. Signal) Shield ⑩UP Switch...
- Page 4 Also please check the SVVR between antenna and transceiver. CAUTIONS: ● Regarding the microphone conversion cable, please be sure to use “ADONIS” optional microphone cables. ● Be sure to use the microphone with windscreen.
