ADONIS
・Microphone
・IC
・Transistor
・Diode
・Compressor Level
・Output Voltage
・Matching Outputs Impedance
・Power Voltage
・Current Consumption
・Alarm Sound
・Flexible(Gooseneck)Pipe
・External Size
・Weight
A M - - - - 7 0
A M
A M
A M

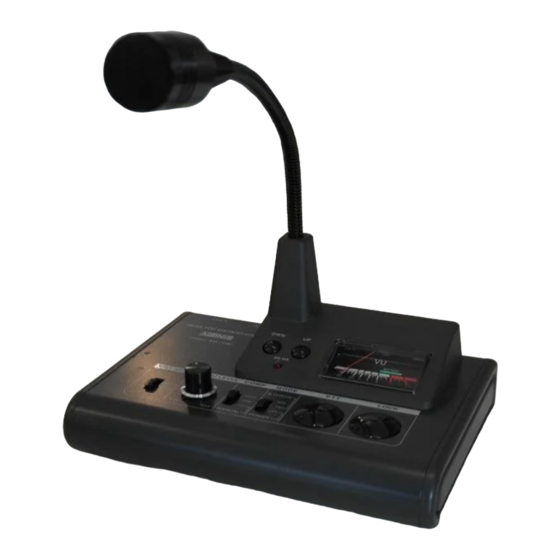

DESKTOP TYPE COMPRESSOR MICROPHONE
DESKTOP TYPE COMPRESSOR MICROPHONE
DESKTOP TYPE COMPRESSOR MICROPHONE
DESKTOP TYPE COMPRESSOR MICROPHONE
( W / N O N - M O D U L A T I O N P R E V E N T I O N C I R C U I T )
SPECIFICATIONS
High Sensitivity Electret Condenser Mic. Element 1pcs.
ADONIS ELECTRONICS CORP.
7 0 8 8 8 8 E E E E
7 0
7 0
COMP：0-30mV(RMS) MANUAL：0-70mV(RMS)
Battery：DC3V(UM3×2 pcs.)
Mic. Cable "D" series
at Receiving: 3mA,Transmitting: 6mA(approx)
approx. 4.5KHz Intermittent Tone
φ 8mm,( Length: 150mm)
20pcs.
13pcs.
HIGH :45 dB, LOW：35 dB
500Ω-100KΩ
DC5-9V
182(W)×130(D)×322(H)mm
approx．830ｇ.
00000-1B-10226P4
2pcs.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Adonis AM-708E
Summary of Contents for Adonis AM-708E
- Page 1 COMP：0-30mV(RMS) MANUAL：0-70mV(RMS) ・Matching Outputs Impedance 500Ω-100KΩ ・Power Voltage Battery：DC3V(UM3×2 pcs.) Mic. Cable “D” series DC5-9V ・Current Consumption at Receiving: 3mA,Transmitting: 6mA(approx) ・Alarm Sound approx. 4.5KHz Intermittent Tone ・Flexible(Gooseneck)Pipe φ 8mm,( Length: 150mm) ・External Size 182(W)×130(D)×322(H)mm ・Weight approx．830ｇ. ADONIS ELECTRONICS CORP. 00000-1B-10226P4...
- Page 2 DESKTOP MICROPHONE MODEL INSTRUCTIONS Thank you very much for your Purchase of “ADONIS” Desktop Microphone Model AM-708E. To enjoy this unit satisfactorily, please read the instructions carefully and we hope you can enjoy this microphone for a long time. FEATURES: o Selectable for 2 sets of transceivers at once by slide switch.
- Page 3 : This model is provided with Electret Condenser type microphone for easy understanding sound quality. 11) Mic. Output Connector: “OUT-A”(8P ADONIS type terminal arrangement) 12) Mic. Output Connector: “OUT-B”(8P ADONIS type terminal arrangement) (Note: The microphone Interconnecting Cables optionally available are provided with directional condition for connecting.
- Page 4 So, now it becomes common to use compressor amplifier between transceiver and microphone. CAUTIONS : Please be sure to use “ADONIS” Interconnecting Cables separately available. Please refer to the list of Microphone Cables. When supplying the power from transceiver with “D” type mic. cables, the batteries set to the microphone do not send the power to microphone, but, after switching the power of transceiver “OFF”...
