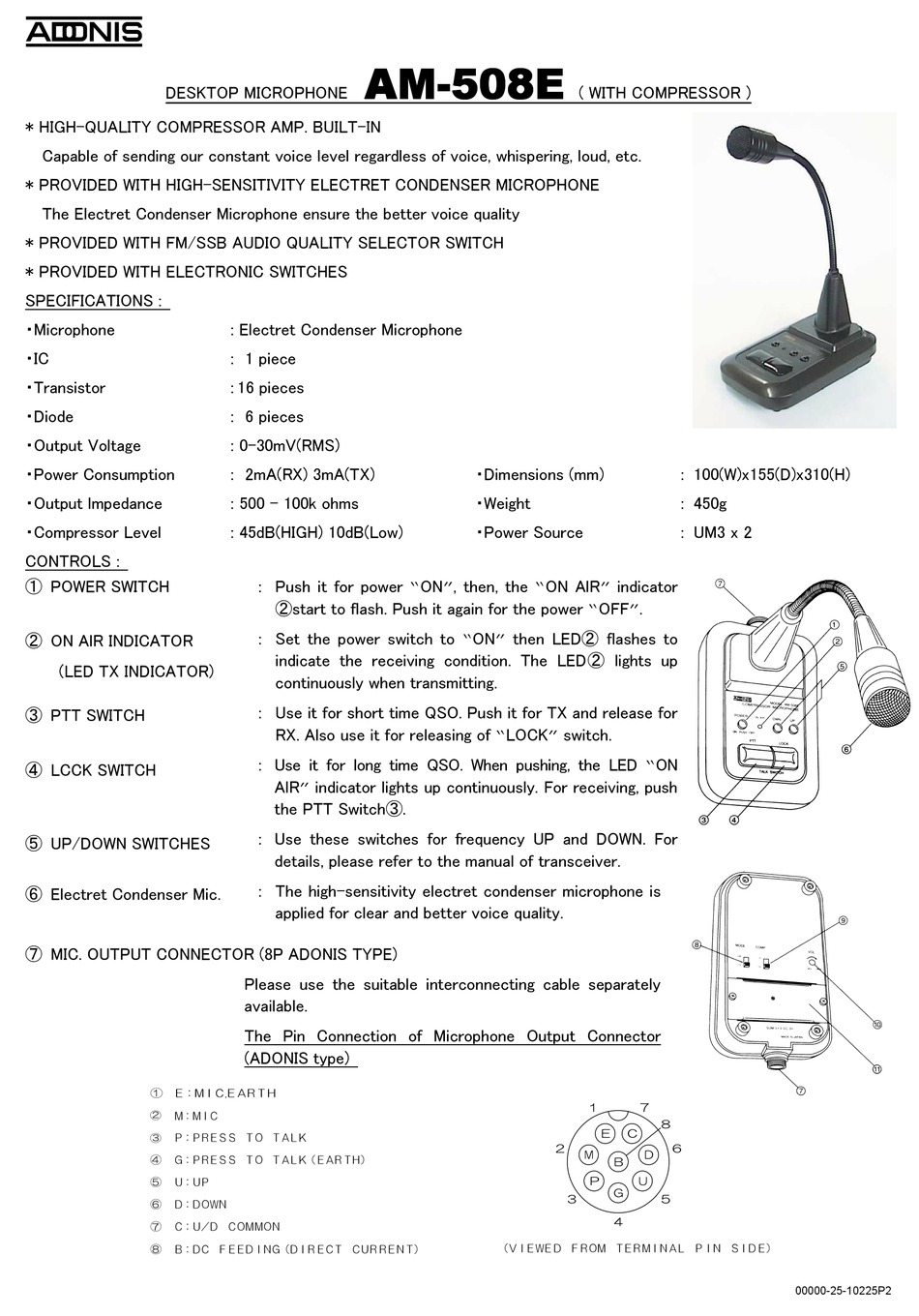

Adonis AM-508E Quick Start Manual

ADONIS
DESKTOP MICROPHONE
* HIGH-QUALITY COMPRESSOR AMP. BUILT-IN
Capable of sending our constant voice level regardless of voice, whispering, loud, etc.
* PROVIDED WITH HIGH-SENSITIVITY ELECTRET CONDENSER MICROPHONE
The Electret Condenser Microphone ensure the better voice quality
* PROVIDED WITH FM/SSB AUDIO QUALITY SELECTOR SWITCH
* PROVIDED WITH ELECTRONIC SWITCHES

SPECIFICATIONS :

・Microphone
・IC
・Transistor
・Diode
・Output Voltage
・Power Consumption
・Output lmpedance
・Compressor Level

CONTROLS :

① POWER SWITCH
② ON AlR INDICATOR
(LED TX INDICATOR)
③ PTT SWITCH
④ LCCK SWITCH
⑤ UP/DOWN SWITCHES
⑥ Electret Condenser Mic.
⑦ MIC. OUTPUT CONNECTOR (8P ADONIS TYPE)
① Ｅ：ＭＩＣ.ＥＡＲＴＨ
② Ｍ：ＭＩＣ
Ｐ：ＰＲＥＳＳ ＴＯ ＴＡＬＫ
③
④ Ｇ：ＰＲＥＳＳ ＴＯ ＴＡＬＫ（ＥＡＲＴＨ）
⑤ Ｕ：ＵＰ
⑥ Ｄ：ＤＯＷＮ
⑦ Ｃ：Ｕ／Ｄ ＣＯＭＭＯＮ
⑧ Ｂ：ＤＣ ＦＥＥＤＩＮＧ（ＤＩＲＥＣＴ ＣＵＲＲＥＮＴ）
AM- - - - 508E AM
AM AM
: Electret Condenser Microphone
: 1 piece
: 16 pieces
: 6 pieces
: 0-30mV(RMS)
: 2mA(RX) 3mA(TX)
: 500 - 100k ohms
: 45dB(HIGH) 10dB(Low)
: Push it for power "ON", then, the "ON AlR" indicator
②start to flash. Push it again for the power "OFF".
: Set the power switch to "ON" then LED② flashes to
indicate the receiving condition. The LED② lights up
continuously when transmitting.
: Use it for short time QSO. Push it for TX and release for
RX. Also use it for releasing of "LOCK" switch.
: Use it for long time QSO. When pushing, the LED "ON
AlR" indicator lights up continuously. For receiving, push
the PTT Switch③.
: Use these switches for frequency UP and DOWN. For
details, please refer to the manual of transceiver.
: The high-sensitivity electret condenser microphone is
applied for clear and better voice quality.
Please use the suitable interconnecting cable separately
available.
The Pin Connection of Microphone Output Connector
(ADONIS type)
508E
508E 508E
( WITH COMPRESSOR )
・Dimensions (mm)
・Weight
・Power Source
1
E
2
M
B
P
G
3
4
（ＶＩＥＷＥＤ ＦＲＯＭ ＴＥＲＭＩＮＡＬ ＰＩＮ ＳＩＤＥ）
: 100(W)x155(D)x310(H)
: 450g
: UM3 x 2
7
8
C
6
D
U
5
00000-25-10225P2
