Summary of Contents for POMI Kombi-Pack

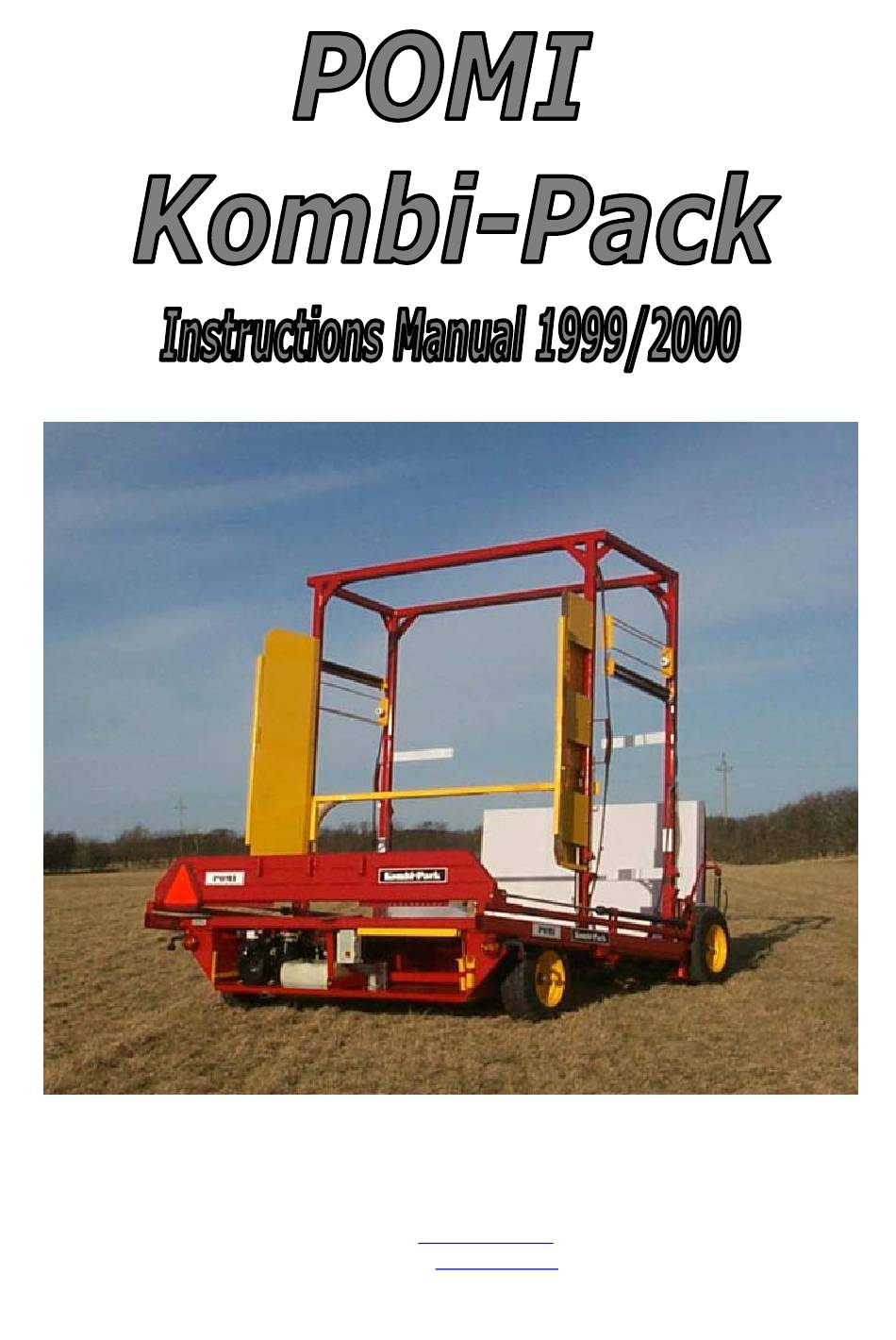

- Page 1 English Abildvadvej 5, Thorup DK-9610 Nørager Denmark Tlf.: +45 98552000 Fax +45 98552200 E-mail: pomi@pomi.dk Web side: www.pomi.dk...
-
Page 2: Table Of Contents
Contents POMI KOMBI-PACK WRAPPER ......................3 PRECAUTION ............................3 EU DECLARATION OF ACCORDANCE ....................4 IDENTIFICATION OF THE MACHINE ....................5 SOME ADVISE BEFORE STARTING WRAPPING SILAGE .............. 5 BEFORE START ............................5 REARRANGEMENT FROM TRANSPORT TO WRAPPING ............. 6 WRAPPING .............................. -
Page 3: Pomi Kombi-Pack Wrapper
1. Pomi Kombi-Pack Wrapper Congratulation – You have chosen a sausage-wrapping machine, only to be used for wrapping silage and straw. If required used for any other product you will need the manufacturer’s written authorization. The bales are set onto the machine the bar pushes the bales into the wrapping unit. Foil is wrapped around the bales making a long sausage. -
Page 4: Eu Declaration Of Accordance
3. EU declaration of accordance Manufacturer: POMI ApS Abildvadvej 5, Thorup DK-9610 Nørager Tel. 0045 98552000 Company hereby declares that Machine: Wrapper machine Make Type, series no., year a) is manufactured in accordance with decisions made in the Council’s Directive of 14 June 1989 about mutual approach of the member states’... -
Page 5: Identification Of The Machine
4. Identification of the machine When ordering spare parts, make sure to give the serial number of the machine. This is written on the left side of the machine, as shown on the picture below. The motor’s number is written on its left side. -
Page 6: Rearrangement From Transport To Wrapping
7. Rearrangement from transport to wrapping A tractor drives the machine in correct position so that the machine stands where the stack must be. Unhitch the tractor and remove the light wire. Check the distance between sensors (see section 11) and adjust the support beneath the bales (see section 12). -
Page 7: Closing
It is important that the bales are positioned between the two yellow plates on the bar in order to be guided in position. When the bales required wrapped are at the wrapper section, then start wrapping 10 laps around the bale to fix the plastic. More bales are fed into the machine, please check that the required layer of plastic is wrapped around the bale. -
Page 8: Adjusting Of The Sensors
Adjusting of the sensors The sensors for the bar must be adjusted so that the distance between sensor 2 and 3 is equal to the width of the bale. The distance between sensor 2 and 1 must be set so that space for entering the bale in position is sufficient. -
Page 9: Function Of The Machine
Function of the machine. 14.1. Electrical box Emergency stop. A simple pressure on this contact stops all functions in the electrical box. To start again, turn it out of its lock position and activate the needed function. Ready A release from the emergency stop and the lamplights up showing that everything is ready. Start This contact starts the wrapping program. -
Page 10: El-Diagram - Box
14.1.1. El-diagram – Box... -
Page 11: Electric Diagram - Junction Box
14.1.2. Electric diagram – Junction box... -
Page 12: Remote Control
14.2. Remote Control Red is the same as start Grey is the same as film Green is the same as left Yellow is the same as right 14.3. Hydraulic system Before the machine, there is a flow regulator, one ball valve and 2 or 3 hydraulic handles. The flow regulator is to adjust the speed of the pushing bar, which means at the same time to adjust the plastic quantity needed. -
Page 13: Maintenance
Maintenance. Clean the motor compartment daily or when needed to avoid fire. Bearings are lubricated with grease daily. Bar and chains are lubricated with chain oil. When changing chains, please only use original chains. After day one the wheels are tightened after that 2 times a year. Revolutions = 100 Nm 15.1. -
Page 14: Equipment In Option
Equipment in option 16.1. Round bales equipment Before mounting the equipment for round bales, dismount the steering brackets from the top of the unit as well as spear and support plate. The stretching roller must be correctly placed (see below picture). With the help of the front loader, raise the unit above the rear-door and put it down on place, screwing it fast. -
Page 15: Hydraulic Raising Of The Frame
16.2. Hydraulic raising of the frame When the frame is up, adjust the bolt of the threaded bar in that way that the chains are tightened just at the moment where the pistons are pressed at the top. 8 bolts are necessary to fix the chains when sinking the frame. Get the stretching rollers into the position shown on the below picture. -
Page 16: Silage Box
16.3. Silage box This box is needed when superposing 2 bales in silage wrapping. The idea is to get the film around the bales to create a barrier avoiding the air to penetrate the stack. 16.4. Equipment for silage The equipment for silage is composed of 2 bars as shown on the picture. They can be mounted at two different highs on the frame. -
Page 17: Rack For Bottom Foil
16.5. Rack for bottom foil Consist of 2 holders placed on the pushing bar giving space to a roll of film in between. The film is carried under the pushing bar, over the support plate, the rolls and the rear-door. 16.6. -
Page 18: Problems
Problems Problems Solution Machine − Remove the fuel filter The motor does not pull out − Remove the air filter − Check the hydraulics (210 bar) The pushing bar doesn’t push the bales − Make sure that the safety rails have the The driving chain brakes correct distance. - Page 19 Problems Solution 2 superposed silage bales − Make an end cap with some plastic and Moistness at the end of the stack scotch it. − It is possible to put some end pieces Moistness on the bales when picking up the first bales of the stack between the bales when wrapping −...
