Summary of Contents for TYROLIT Hydrostress DME20PUP

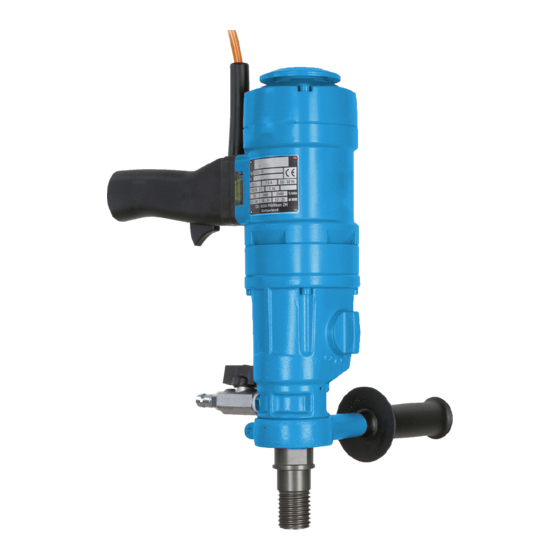

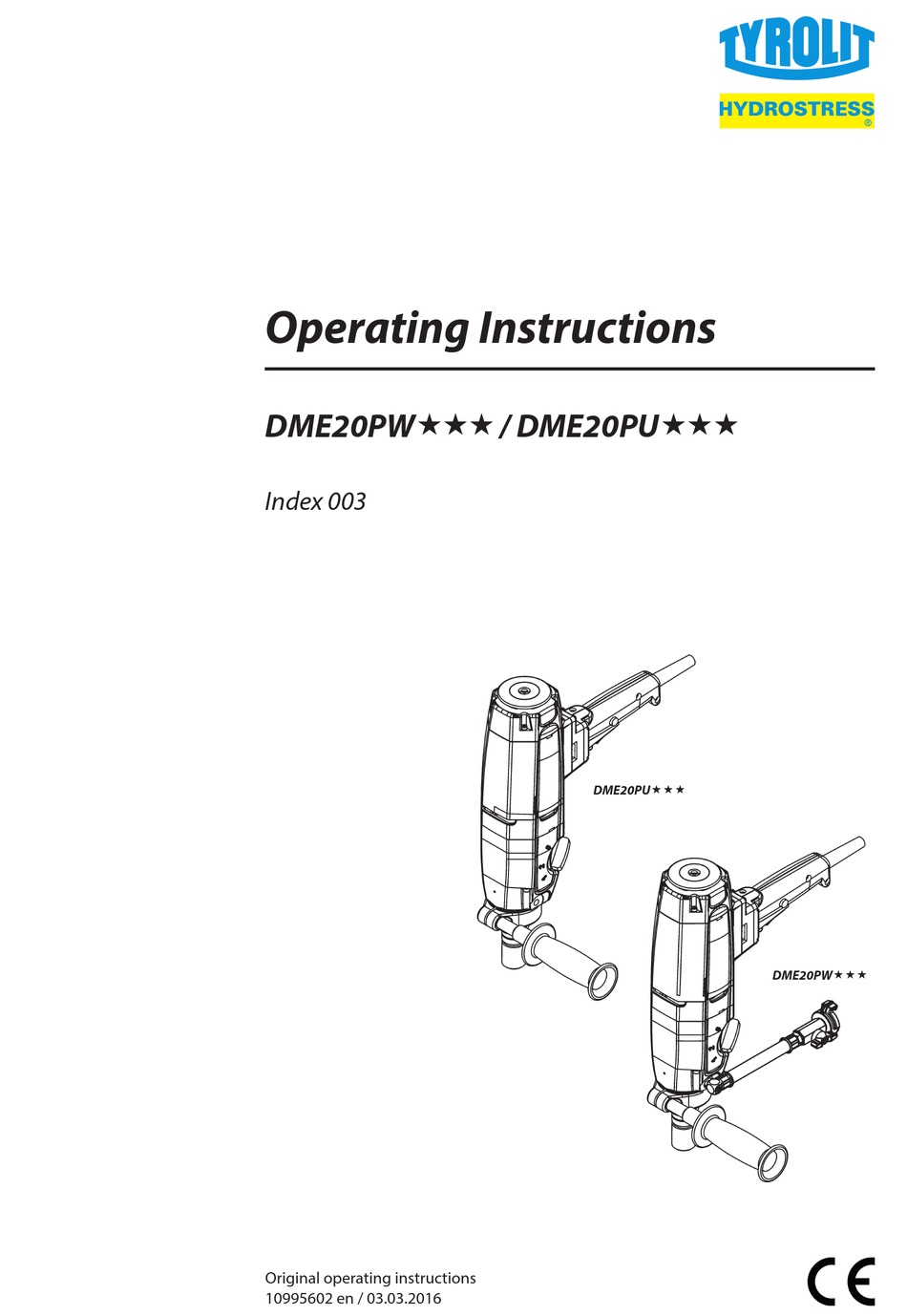

- Page 1 Operating Instructions DME20PW / DME20PU Index 003 DME20PU DME20PW Original operating instructions 10995602 en / 03.03.2016...
- Page 2 Any repair work must be carried out by trained personnel only. Our after-sales service is available to help ensure that your TYROLIT Hydrostress units remain in perfect working order.
-
Page 3: Table Of Contents
TYROLIT Hydrostress AG Table of contents Page Concerning these instructions ........... . -
Page 4: Concerning These Instructions
TYROLIT Hydrostress AG Concerning these instructions These instructions are just one part of the documentation which is supplied together with the electric tool. These instructions go together with the “Core Drills Safety Manual / System Description” to form a complete set of documentation. -
Page 5: Safety
TYROLIT Hydrostress AG Safety Core drilling systems may only be operated by authorised persons. Information about author- ised persons can be found in the “Core Drills Safety Manual / System Description”. General safety precautions WARNING! Read all safety precautions and instructions. Failures in the compliance with these safety precautions and instructions can cause electric shock, fire and/or heavy injuries. - Page 6 TYROLIT Hydrostress AG 2.1.3 Personal safety • Be attentive, pay attention to what you do and go to work with the electric tool with reason. Do not use an electric tool when you are tired or under the influence of drugs, alcohol or pharmaceuticals.
- Page 7 TYROLIT Hydrostress AG 2.1.5 Service • Have your tool only repaired by qualified personnel and only with original spare parts. Thus it is assured that the safety of the electric tool is being obtained. 2.1.6 Safety precautions for drilling machines •...
- Page 8 Safety clothing Spare parts and modifications Only original spare parts from TYROLIT Hydrostress must be used. Otherwise damage may be caused to the equipment or to other property and persons. No additions or modifications must be made to the equipment without written permission from TYROLIT Hydrostress.
- Page 9 TYROLIT Hydrostress AG Product-specific dangers 2.5.1 Personal protection device (PRDC, GFCI) Only ever work if a serviceable current-operated personal protection device is present (PRCD, GFCI). Personal protection device DANGER Failure to comply will result in a risk of death or serious injuries X Keep your electrical tool away from rain and moisture.
- Page 10 TYROLIT Hydrostress AG Residual risks Risk of serious injuries from the residual risks described in the chapters that follow. 2.6.1 Diamond segments flying off X Do not start drilling if any other persons are in the danger zone. X Ensure that a safety distance is maintained.
-
Page 11: Product Description
Manipulation or modifications to the equipment, the drilling stand or the accessories are not permitted. Always use original TYROLIT Hydrostress accessories and suitable tools during use in order to prevent injuries. - Page 12 TYROLIT Hydrostress AG Technical data and main dimensions 3.4.1 Technical data Drill motors DME20PW DME20PU Nominal voltage 230 V 110 V 230 V 110 V Frequency 50 Hz 60 Hz 50 Hz 60 Hz Drill diameter range 15 - 180 mm Nominal power 2.0 kW...
- Page 13 TYROLIT Hydrostress AG 3.4.2 Measurements Measurements in mm Lubricants, fluids Lubricants, fluids and sealants Parameter Value Gear oil ISO 100 (TYROLIT No. 10996358/350ml) Name plate The type designation and serial number are marked on the name plate of your electrical tool.
-
Page 14: Design And Function
TYROLIT Hydrostress AG Design and function Design Design 1 Gearbox DME20PU Residual current circuit breaker 2 Gearbox DME20PW Water connection 3 Motor Handle Function 4.2.1 Functional description The drilling spindle of the electrical tool is powered by an electric motor via a mechanical manual gearbox. - Page 15 TYROLIT Hydrostress AG Operating elements and displays 4.3.1 Controls Operating elements 1 Handle Operating handle 2 Main water valve On/Off switch Start switch 3 Rotary switch / gear Locking button 4.3.2 Displays Displays 1 Green LED Red LED 2 Green LED...
-
Page 16: Assembly / Disassembly
TYROLIT Hydrostress AG Assembly / Disassembly Drill rig interface Drill rig interface Cutting tool interface Cutting tool interface Page 16 DME20PW / DME20PU... - Page 17 TYROLIT Hydrostress AG Power supply INFORMATION • The power supply must correspond with the information on the type plate. • Protect the connecting cables from heat, oil and sharp edges. • Do not use connecting cables for unsuitable purposes. • Never carry the electrical tool using the connecting cable.
-
Page 18: Operation
TYROLIT Hydrostress AG Operation DANGER • Never work without suitable safety equipment. • Always wear hearing protection. • Remove adjusting and installation tools before switching the electrical tool on. • Never work on ladders. • Keep children away from the electrical tool and the working area. - Page 19 Malfunctions Malfunction Possible cause Remedy The electrical tool cannot be started Mains cable is defective X Contact TYROLIT Hydrostress AG aftersales Faulty power supply X Check power supply Electric motor or electronics X Contact TYROLIT Hydrostress AG aftersales faulty Electrical tool starts up and then switches...
-
Page 20: Servicing And Maintenance
(Service interval 150 / 300 / 450 / 600 hours) Take waste for recycling TYROLIT Hydrostress tools are manufactured using a high proportion of recyclable materials. A prerequisite for recycling is proper material separation. In many countries, TYROLIT is already prepared for taking back your used equipment for recycling. -
Page 21: Ec Declaration Of Conformity
TYROLIT Hydrostress AG EC Declaration of Conformity Description Electric drill motor Type designation DME20PW / DME20PU Year of construction 2012 We declare under our sole responsibility that this product complies with the following direc- tives and standards: Applied directions 2006/42/EC 17.05.2006...
