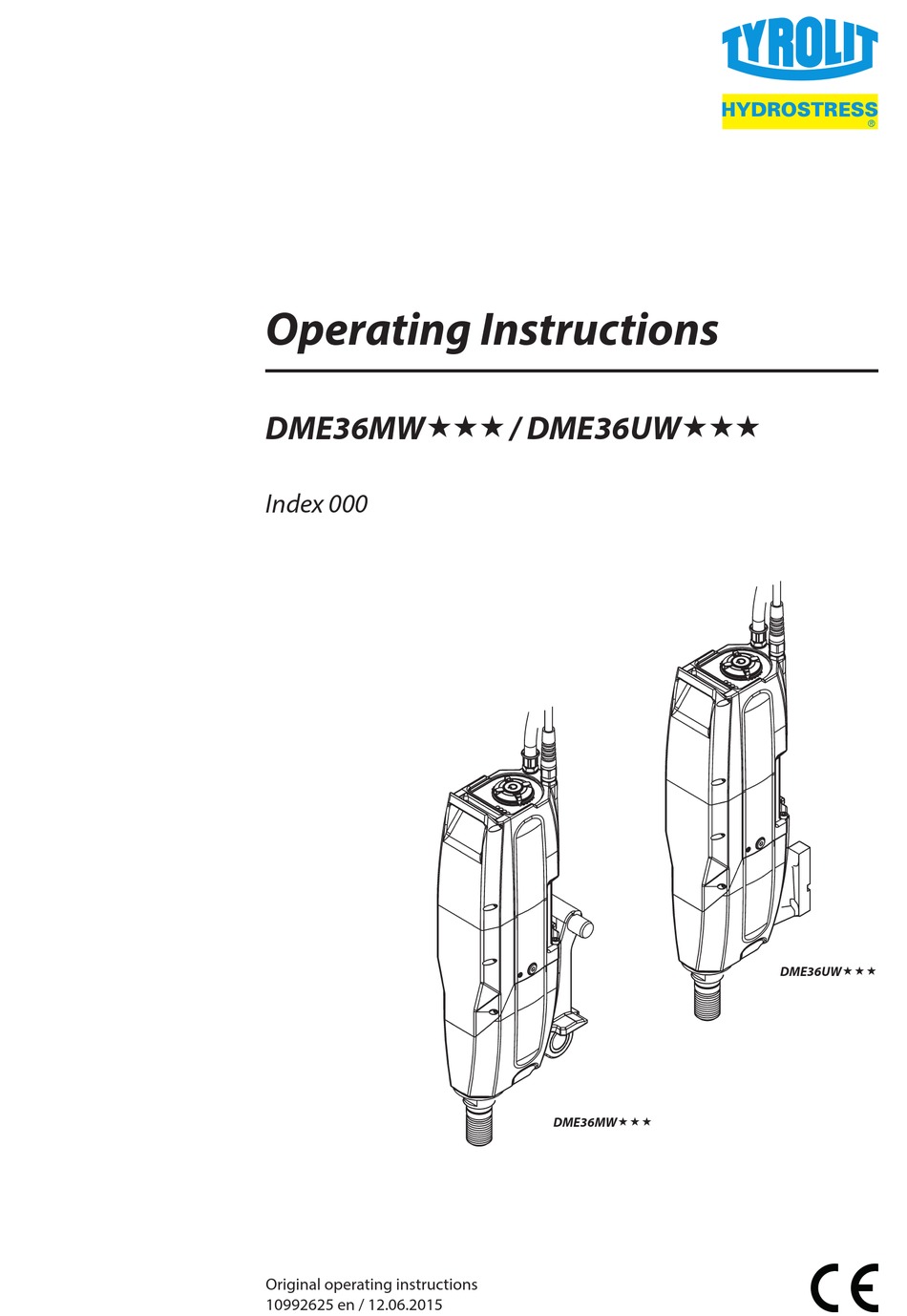

- Page 1 Operating Instructions DME36MW / DME36UW Index 000 DME36UW DME36MW Original operating instructions 10992625 en / 12.06.2015...
-
Page 2: Dme36Mw
Any repair work must be carried out by trained personnel only. Our after sales service is available to help ensure that your TYROLIT Hydrostress units remain in perfect working order. -
Page 3: Table Of Contents
TYROLIT Hydrostress AG Table of contents Page Concerning these instructions ........... . -
Page 4: Concerning These Instructions
TYROLIT Hydrostress AG Concerning these instructions These instructions are just one part of the documentation which is supplied together with the electric tool. These instructions go together with the «Core Drills Safety Manual / System Description» to form a complete set of documentation. -
Page 5: Safety
Safety clothing Spare parts and modifications Only original spare parts from TYROLIT Hydrostress must be used. Otherwise damage may be caused to the equipment or to other property and persons. No additions or modifications must be made to the equipment without written permission from TYROLIT Hydrostress. - Page 6 TYROLIT Hydrostress AG Danger and working area 2.3.1 Danger zone at electrical tool The marked area on the drawing defines the danger zone of the electrical and cutting tool. The minimum clearance of 15 cm must be maintained during operation.
-
Page 7: Dme36Mw
TYROLIT Hydrostress AG Residual risks Risk of serious injuries from the residual risks described in the chapters that follow. 2.4.1 Diamond segments flying off X Do not start drilling if any other persons are in the danger zone. X Ensure that a safety distance is maintained. -
Page 8: Product Description
Manipulation or modifications to the equipment, the drilling stand or the accessories are not permitted. Always use original TYROLIT Hydrostress accessories and suitable tools during use in order to prevent injuries. -
Page 9: Dme36Mw
TYROLIT Hydrostress AG Technical data and main dimensions 3.4.1 Technical data Drill motors DME36MW DME36UW Nominal voltage 230 V Frequency 50 - 60 Hz Drill diameter range 50 - 400 mm (450 mm) Nominal power 3.6 kW Rated current 16 A... -
Page 10: Dme36Mw
TYROLIT Hydrostress AG 3.4.2 Drilling area Drilling area DME36MWP Drilling area DME36UWP Drilling area Page 10 DME36MW / DME36UW... -
Page 11: Name Plate
TYROLIT Hydrostress AG 3.4.3 Dimensions Measurements in mm Lubricants, fluids Lubricants, fluids and sealants Parameter Value Gear oil Klüber GEM 4 N (TYROLIT No. 10979557/1000 ml) Name plate The type designation and serial number are marked on the name plate of your electrical tool. -
Page 12: Design And Function
TYROLIT Hydrostress AG Design and function Design Design 1 Water connection DME36MW gearbox 2 Operating unit DME36UW gearbox 3 Motor Easy release element 4 Rotor Function 4.2.1 Functional description The drilling spindle of the electrical tool is powered by an electric motor via a mechanical gearbox. -
Page 13: Dme36Mw
TYROLIT Hydrostress AG Displays and controls Displays 4.3.1 Power display when at standstill no signal no status informations LED 1, 2 flashing Maintenance necessary Motor is overheating: Main switch illu- LED 4 flashes Switch off motor and minates in green... -
Page 14: Dme36Mw
TYROLIT Hydrostress AG Controls 4.3.1 Controls 1 Grip Main On / Off switch 2 Water connection Bypass valve 3 Rotary switch / speed Easy release element Water - Bypass For dry drilling work the cooling water can be led away via a bypass. -
Page 15: Assembly / Disassembly
TYROLIT Hydrostress AG Assembly / Disassembly Drilling stand interface Drilling stand interface Cutting tool interface Cutting tool interface DME36MW / DME36UW Page 15... - Page 16 TYROLIT Hydrostress AG Power supply INFORMATION • The power supply must correspond with the information on the type plate. • Protect the connecting cables from heat, oil and sharp edges. • Do not use connecting cables for unsuitable purposes. • Never carry the electrical tool using the connecting cable.
-
Page 17: Operation
TYROLIT Hydrostress AG Operation DANGER • Never work without suitable safety equipment • Always wear hearing protection • Remove adjusting and installation tools before switching the electrical tool on. • Never work on ladders. • Keep children away from the electrical tool and the working area. -
Page 18: Dme36Mw
Malfunctions Faults Possible cause Solution The electrical tool cannot be started Mains cable is defective X Contact TYROLIT Hydrostress AG aftersales Faulty power supply X Check power supply Electric motor or electronics X Contact TYROLIT Hydrostress AG aftersales faulty Motor has overheated... -
Page 19: Dme36Mw
Fault information no signal no fault LED 1, 2 illuminate LED 3 illuminates LED 1, 3 illuminate X Notify TYROLIT Hydrostress AG of the status of the col- oured LEDs LED 2, 3 illuminate Main switch illumi- nates in red... -
Page 20: Servicing And Maintenance
(Service interval 200 / 400 / 600 ... hours) Take waste for recycling TYROLIT Hydrostress tools are manufactured using a high proportion of recyclable materials. A prerequisite for recycling is proper material separation. In many countries, TYROLIT is already prepared for taking back your used equipment for recycling. Contact TYROLIT customer service or your sales adviser. -
Page 21: Eu Declaration Of Conformity
TYROLIT Hydrostress AG EC Declaration of Conformity Description Electric drill motor Type designation DME36MW/ D ME36UW Year of construction 2013 We declare under our sole responsibility that this product complies with the following direc- tives and standards: Applied directions 2006/42/EC 17.05.2006...
