Summary of Contents for Plustek SecureScan Series

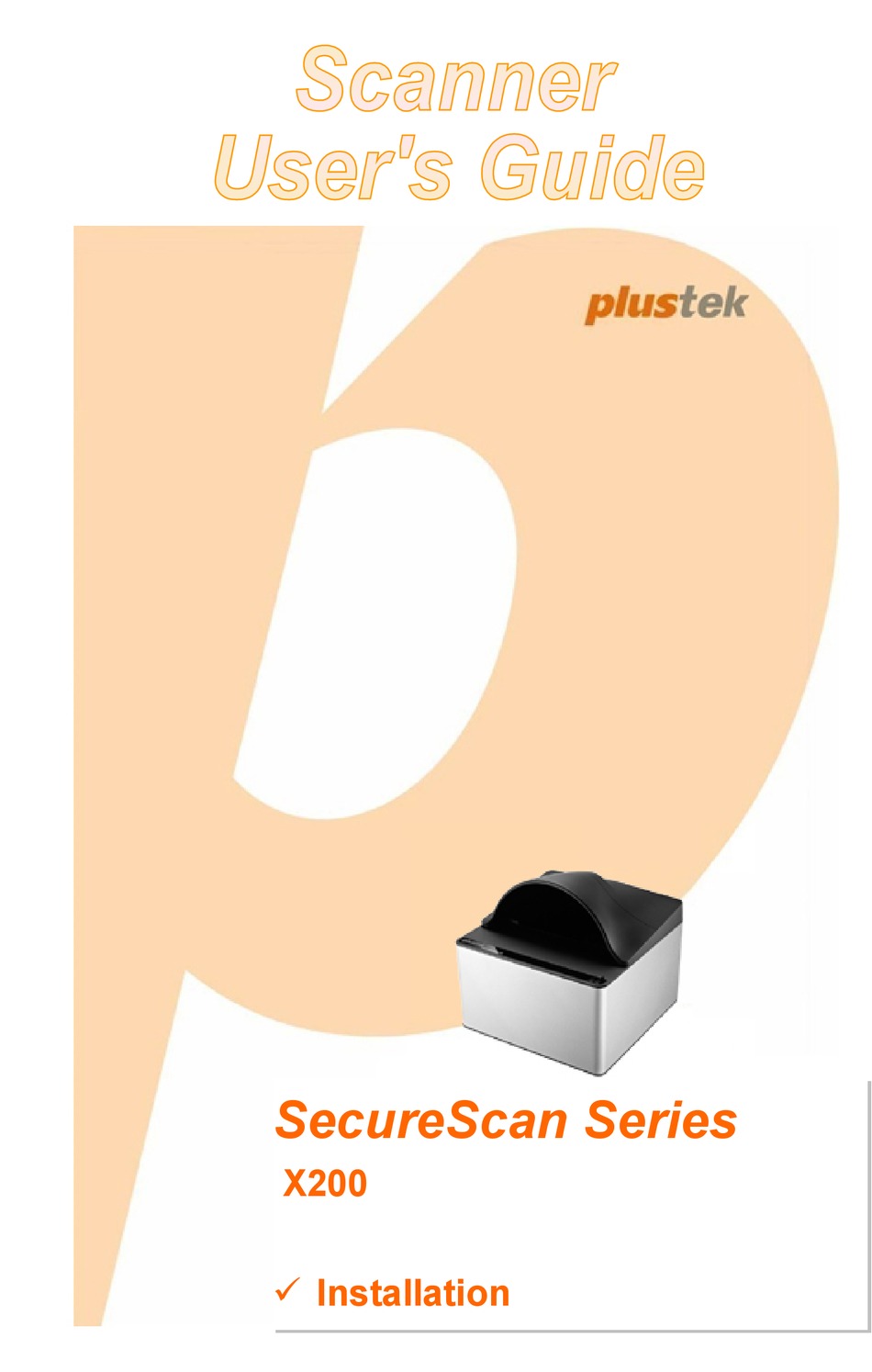

  • Page 1 SecureScan Series X200  Installation...
  • Page 2 Trademarks © 2020 Plustek Inc. All rights are reserved. No portion of this document may be reproduced without permission. All trademarks and brand names mentioned in this publication are property of their respective owners. Liability While all efforts have been made to ensure the accuracy of all contents in this...

  • Page 3: Table Of Contents

    Table of Contents ......................1 NTRODUCTION How to Use This Guide....................1 A Note about Icons......................2 Safety Precautions....................2 System Requirements....................3 Box Contents......................3 Scanner Overview.....................4 ..................6 NSTALLING THE CANNER Hardware Requirements....................6 Setting up the Scanner....................7 A: S .................8 PPENDIX PECIFICATIONS B: C ...........9 PPENDIX USTOMER...

  • Page 4: Introduction

    Introduction Thank you for choosing us as your scanner supplier. Your new scanner will improve the professionalism of your day-to-day computing tasks by allowing you to input images and electronic text into your computer system. Like all of our products, your new scanner is thoroughly tested and backed by our reputation for unsurpassed dependability and customer satisfaction.

  • Page 5: A Note About Icons

    A Note about Icons A Note about Icons This guide uses the following icons to point out information that deserves special attention. A procedure that must be followed carefully to prevent injury, or accidents. Warning Instructions that are important to remember and may prevent mistakes.

  • Page 6: System Requirements

    System Requirements ®  PC with Intel Pentium IV 2.4GHz processor or higher 1GB RAM (2GB RAM Recommended)   Available USB 2.0 port  CD-ROM Drive or DVD-ROM Drive  1GB Free Hard Disk Space (2GB Recommended)  Operating System: Windows 7 / 8 / 8.1 / 10 Box Contents X200 1.

  • Page 7: Scanner Overview

    Scanner Overview X200 1. Status indicator: Indicates the scanner’s ready status. 2. LED indicator: Indicates the scanner’s power status. Light Status The scanner is turned on, ready to scan images. The scanner is off, either because the power is not turned on, or because the power cord is not properly plugged into an AC power outlet.
  • Page 8 3. Power Switch: Use this to turn the scanner ON or OFF. 4. Power Receptor: Connects the scanner to a standard AC power outlet by the AC adapter included. 5. USB Port: Connects the scanner to a USB port on your computer by the included USB cable.

  • Page 9: Installing The Scanner

    Installing the Scanner Before installing your scanner, please verify that you have all of the proper components. A list of the package contents is provided in the Box Contents section of this guide. Hardware Requirements This scanner connects to your computer through the Universal Serial Bus (USB), which supports hot swap.

  • Page 10: Setting Up The Scanner

    Setting up the Scanner Please follow the step-by-step procedures described below to install the scanner. X200 1. Plug the AC adapter into the scanner’s power receptor. 2. Plug the other end of the power cable into a standard AC power outlet. 3.

  • Page 11: Appendix A: Specifications

    Appendix A: Specifications Plustek SecureScan X200 Image Sensor CMOS Light Source White LED / IR LED / UV LED Optical Resolution 5 Megapixels Output Resolution 300, 500, 600 DPI Focus Fixed Color: 24-bit Input; 24-bit Output Scan Modes IR: 24-bit Input; 8-bit Output UV: 24-bit Input;...

  • Page 12: Appendix B: Customer Service And Warranty

    Appendix B: Customer Service and Warranty Visit our website www.plustek.com for more customer service information. For further assistance call our customer support phone number listed on the website. One of our representatives will be happy to assist you from Monday through Friday during...

  • Page 13: Statement Of Limited Warranty

    Statement of Limited Warranty This Statement of Limited Warranty applies only to the options you originally purchase for your use, and not for resale, from an authorized reseller. The manufacturer warranty includes all parts and labor, and is not valid without the receipt of original purchase.

  • Page 14: Fcc Radio Frequency Statement

    3. Economic consequential damages (including lost profits or savings) or incidental damages, even if we are informed of their possibility. Some jurisdictions do not allow the exclusion or limitations of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This Limited Warranty gives you specific legal rights, and you may also have other rights that vary from jurisdiction to jurisdiction.
