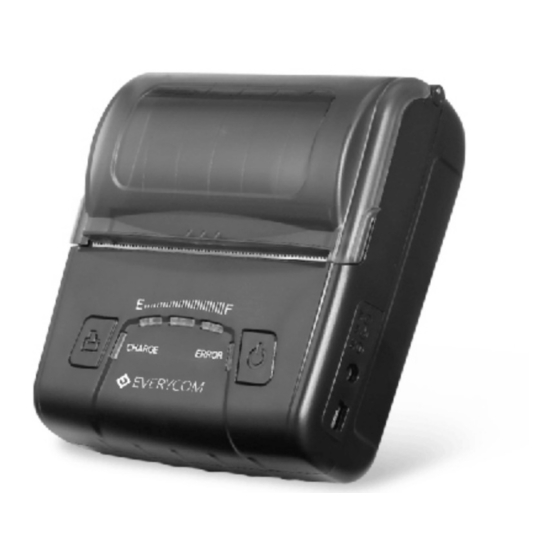

Everycom EC400 User Manual

Thermal receipt printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EC400
THERMAL RECEIPT PRINTER
USER MANUAL
Please read this manual carefully before using the printer,
we recommend that you keep this user manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EC400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Everycom EC400

Summary of Contents for Everycom EC400

  • Page 1 EC400 THERMAL RECEIPT PRINTER USER MANUAL Please read this manual carefully before using the printer, we recommend that you keep this user manual for future reference.

  • Page 2: Safety Tips

    ABOUT THIS USER MANUAL We thank you for your purchase of Everycom EC400 Thermal receipt printer. This user manual will guide you through on how to use this printer. Please read this user manual carefully before using the printer. We also strongly recommend that you keep this user manual for future reference and do not throw it away.
  • Page 3 Ÿ While charging if you see smoke coming out of battery / power adaptor or there is bad smell, please shut off the power supply immediately. Keep safe distance from the printer and wait for few minutes before inspecting the situation closely. If printer is very hot or battery had smoke or bad smell, please take out the battery from printer ( Caution : Battery may be very hot, avoid burns ).
  • Page 4 Ÿ Please remove the battery from printer if you plan not to use printer for long time, please store printer and battery separately. Ÿ Before inserting or removing the battery from printer, please make sure printer is properly shutdown and power adapter is not connected to printer. Ÿ...
  • Page 5 Ÿ Squeezing, vibrating or shaking battery is strictly prohibited as it may cause short circuit and battery may explode. Ÿ Please do not put battery into water or other liquid, this may cause short circuit and may result in explosion of battery. Ÿ...

  • Page 6: Application Area

    Ÿ Do not disassemble or modify the power adaptor. It is strictly prohibited to use the power adaptor whose power cable is damaged , this may cause damage to power adaptor and can even lead to electric shock, fire or other hazards. Ÿ...

  • Page 7: Optional Accessories

    WHAT’S IN THE BOX PRODUCT FEATURES Ÿ Ÿ 1 X EC400 Thermal Receipt Easy paper loading, simple and convenient to operate Printer Ÿ Support Gb18030 big font, easy to print uncommon characters. Ÿ 1 X Power Adaptor Ÿ Multi-lingual printing, worldwide usability.
  • Page 8 Item Parameter Printing Method Thermal Line Effective 72mm Printing Width Resolution 576 dots/line （8dots/mm ，203dpi） PrintingSpeed 90mm/S Printer Interface USB, Bluetooth, WiFi ( Optional ) parameter Line spacing 3.75mm（Can adjust line spacing by command ） Line No. Font A:48character /Line Font B:64character/Line Simple/TraditionalChinese:24characters/Line Character...
  • Page 9 Item Parameter Graphics printing Graphics Supports bitmap download and print (support each bitmap size Max.8K, printing download up to 5pcs) Smart power Support saving Power saving Variable speed Support Mode printing Consumption Support Dormancy Support Dection Sensor Lack of paper detection Type Thermal Width...

  • Page 10: Know Your Printer

    KNOW YOUR PRINTER 1. Paper holder flip cover 2. Paper window 3. Power button 4. Error button 5. Battery charge level indicator 6. Charging status indicator 7. Feed button 8. USB (COM) Port 9. Power input ( Charging port ) 10.
  • Page 11 BUTTON NAME, INDICATOR & FUNCTIONS 1. (BATTERY CHARGE LEVEL) INDICATOR If 3 Blue lights, this indicates that battery is full, if only 1 blue light then that means battery low. 2. (ERROR) INDICATOR This indicator keeps flashing in red light if paper cover is not closed properly or printer is out of paper or have other system errors while printing.

  • Page 12: How To Load Paper

    HOW TO : LOAD PAPER EC200 Thermal receipt printer uses 58mm thermal paper roll, please make sure you have the correct paper roll for the printer. 1. Remove the seal on the thermal printing paper. 2. Firmly hold the top flip cover of the printer with your forefingers and pull the cover upward direction to open the flip cover.

  • Page 13: Basic Operations

    BASIC OPERATIONS 1. POWER ON Continue to press the power button for 3 seconds, printer will start. 2. SHUTDOWN If printer is already powered on, continue to press the power button for 3 seconds, printer will shutdown. 3. SELF TEST Make sure the printer have paper loaded already and printer is properly shutdown.

  • Page 14: Usb Communication

    USB COMMUNICATION USB interface of this printer uses standard USB 2.0 communication protocol and can be used to easily connect the printer to Windows / Android / iOS / Linux devices which are equipped with corresponding drivers and SDK. Note : Please download the necessary SDK or driver from official website or request your supplier to provide.

  • Page 15: Failure Analysis

    HOW TO : REPAIR & MAINTENANCE 1. Printer casing & paper holder cleaning : Use a wet cloth gently wipe the outer surface and paper holder of the printer. 2. Print core cleaning : Printer core should be cleaned time to time especially if the printing quality is declining, cleaning method is as follows.
